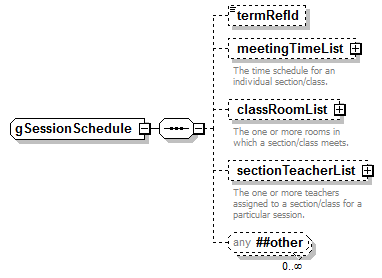

complexType gSessionSchedule

diagram
children	termRefId meetingTimeList classRoomList sectionTeacherList
used by	elements  gStudentSectionEnrollmentType/scheduleOverride gSessionScheduleList/sessionSchedule

element gSessionSchedule/termRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element gSessionSchedule/meetingTimeList

diagram
type	gMeetingTimeList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	meetingTime
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The time schedule for an individual section/class.

element gSessionSchedule/classRoomList

diagram
type	gRoomList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	room
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The one or more rooms in which a section/class meets.

element gSessionSchedule/sectionTeacherList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	sectionTeacher
annotation	documentation The one or more teachers assigned to a section/class for a particular session.

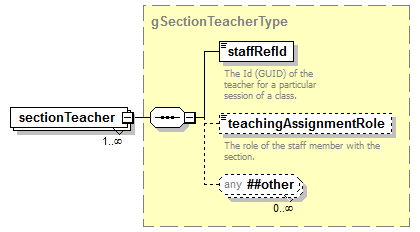

element gSessionSchedule/sectionTeacherList/sectionTeacher

diagram
type	gSectionTeacherType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	staffRefId teachingAssignmentRole
