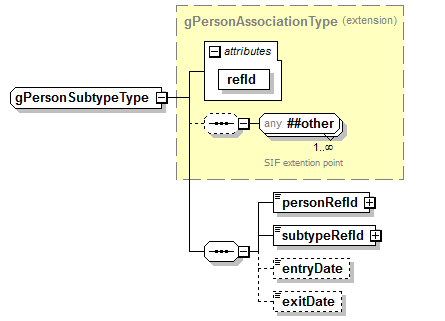

complexType gPersonSubtypeType

diagram
type	extension of gPersonAssociationType
properties	base  gPersonAssociationType
children	personRefId subtypeRefId entryDate exitDate
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/>

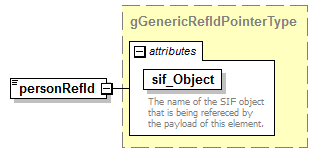

element gPersonSubtypeType/personRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

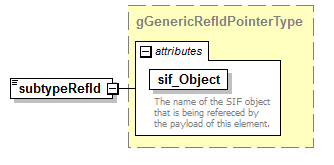

element gPersonSubtypeType/subtypeRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

element gPersonSubtypeType/entryDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gPersonSubtypeType/exitDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
