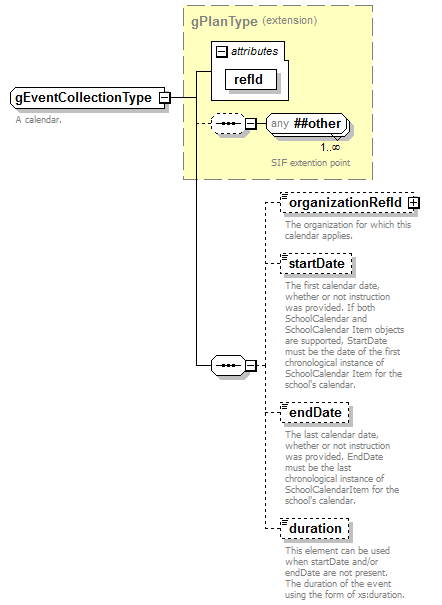

complexType gEventCollectionType

diagram
type	extension of gPlanType
properties	base  gPlanType
children	organizationRefId startDate endDate duration
used by	complexTypes  gBellScheduleType gSchoolCalendarType
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation A calendar.

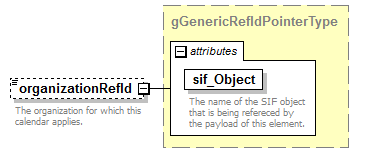

element gEventCollectionType/organizationRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.
annotation	documentation The organization for which this calendar applies.

element gEventCollectionType/startDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The first calendar date, whether or not instruction was provided. If both SchoolCalendar and SchoolCalendar Item objects are supported, StartDate must be the date of the first chronological instance of SchoolCalendar Item for the school's calendar.

element gEventCollectionType/endDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The last calendar date, whether or not instruction was provided. EndDate must be the last chronological instance of SchoolCalendarItem for the school's calendar.

element gEventCollectionType/duration

diagram
type	xs:duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation This element can be used when startDate and/or endDate are not present. The duration of the event using the form of xs:duration.
