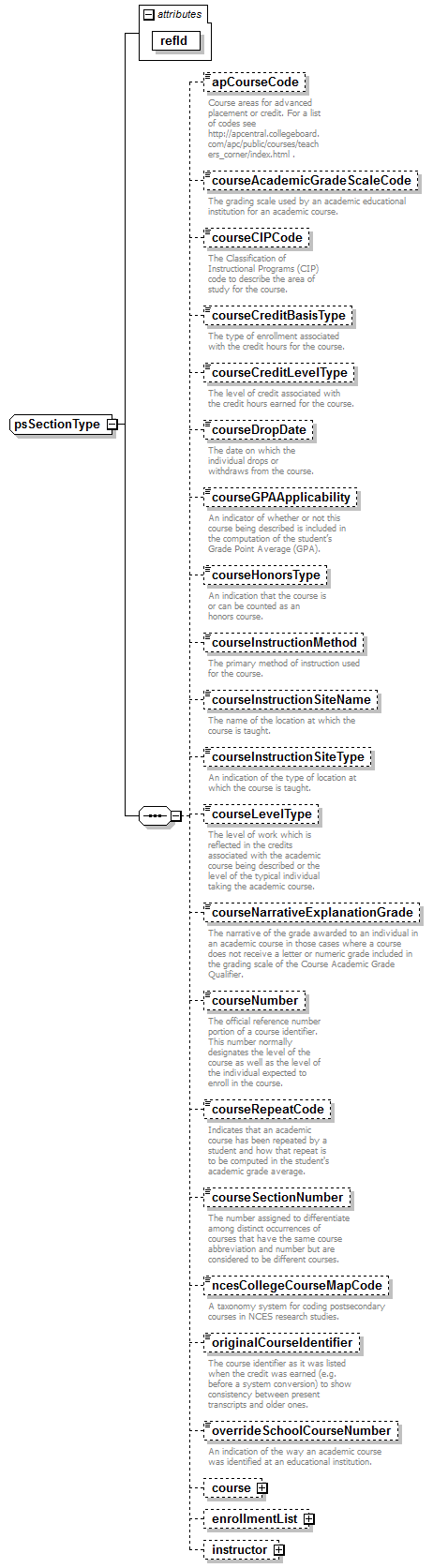

complexType psSectionType

diagram
children	apCourseCode courseAcademicGradeScaleCode courseCIPCode courseCreditBasisType courseCreditLevelType courseDropDate courseGPAApplicability courseHonorsType courseInstructionMethod courseInstructionSiteName courseInstructionSiteType courseLevelType courseNarrativeExplanationGrade courseNumber courseRepeatCode courseSectionNumber ncesCollegeCourseMapCode originalCourseIdentifier overrideSchoolCourseNumber course enrollmentList instructor
used by	element  psSection
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName/> <events/> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/>

attribute psSectionType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element psSectionType/apCourseCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Advanced Placement Course Code</elementName> <sifChar>O</sifChar> <cedsId>001278</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6244</cedsURL> documentation Course areas for advanced placement or credit. For a list of codes see http://apcentral.collegeboard.com/apc/public/courses/teachers_corner/index.html .

element psSectionType/courseAcademicGradeScaleCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Academic Grade Scale Code</elementName> <sifChar>O</sifChar> <cedsId>001298</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6264</cedsURL> documentation The grading scale used by an academic educational institution for an academic course.

element psSectionType/courseCIPCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Classification of Instructional Programs Code</elementName> <sifChar>O</sifChar> <cedsId>001502</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6474</cedsURL> documentation The Classification of Instructional Programs (CIP) code to describe the area of study for the course.

element psSectionType/courseCreditBasisType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Credit Basis Type</elementName> <sifChar>O</sifChar> <cedsId>001303</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6269</cedsURL> documentation The type of enrollment associated with the credit hours for the course.

element psSectionType/courseCreditLevelType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Credit Level Type</elementName> <sifChar>O</sifChar> <cedsId>001304</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6270</cedsURL> documentation The level of credit associated with the credit hours earned for the course.

element psSectionType/courseDropDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Drop Date</elementName> <sifChar>O</sifChar> <cedsId>001305</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6271</cedsURL> documentation The date on which the individual drops or withdraws from the course.

element psSectionType/courseGPAApplicability

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Grade Point Average Applicability</elementName> <sifChar>O</sifChar> <cedsId>000060</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5060</cedsURL> documentation An indicator of whether or not this course being described is included in the computation of the student’s Grade Point Average (GPA).

element psSectionType/courseHonorsType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Honors Type</elementName> <sifChar>O</sifChar> <cedsId>001307</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6273</cedsURL> documentation An indication that the course is or can be counted as an honors course.

element psSectionType/courseInstructionMethod

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Instruction Method</elementName> <sifChar>O</sifChar> <cedsId>001308</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6274</cedsURL> documentation The primary method of instruction used for the course.

element psSectionType/courseInstructionSiteName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Instruction Site Name</elementName> <sifChar>O</sifChar> <cedsId>001309</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6275</cedsURL> documentation The name of the location at which the course is taught.

element psSectionType/courseInstructionSiteType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Instruction Site Type</elementName> <sifChar>O</sifChar> <cedsId>001310</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6276</cedsURL> documentation An indication of the type of location at which the course is taught.

element psSectionType/courseLevelType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Level Type</elementName> <sifChar>O</sifChar> <cedsId>001312</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6278</cedsURL> documentation The level of work which is reflected in the credits associated with the academic course being described or the level of the typical individual taking the academic course.

element psSectionType/courseNarrativeExplanationGrade

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Narrative Explanation Grade</elementName> <sifChar>O</sifChar> <cedsId>001313</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6279</cedsURL> documentation The narrative of the grade awarded to an individual in an academic course in those cases where a course does not receive a letter or numeric grade included in the grading scale of the Course Academic Grade Qualifier.

element psSectionType/courseNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Number</elementName> <sifChar>O</sifChar> <cedsId>001314</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6280</cedsURL> documentation The official reference number portion of a course identifier. This number normally designates the level of the course as well as the level of the individual expected to enroll in the course.

element psSectionType/courseRepeatCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Repeat Code</elementName> <sifChar>O</sifChar> <cedsId>000065</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5065</cedsURL> documentation Indicates that an academic course has been repeated by a student and how that repeat is to be computed in the student's academic grade average.

element psSectionType/courseSectionNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Section Number</elementName> <sifChar>O</sifChar> <cedsId>001315</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6281</cedsURL> documentation The number assigned to differentiate among distinct occurrences of courses that have the same course abbreviation and number but are considered to be different courses.

element psSectionType/ncesCollegeCourseMapCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>NCES College Course Map Code</elementName> <sifChar>O</sifChar> <cedsId>001414</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6383</cedsURL> documentation A taxonomy system for coding postsecondary courses in NCES research studies.

element psSectionType/originalCourseIdentifier

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Original Course Identifier</elementName> <sifChar>O</sifChar> <cedsId>001420</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6389</cedsURL> documentation The course identifier as it was listed when the credit was earned (e.g. before a system conversion) to show consistency between present transcripts and older ones.

element psSectionType/overrideSchoolCourseNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Override School Course Number</elementName> <sifChar>O</sifChar> <cedsId>001422</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6391</cedsURL> documentation An indication of the way an academic course was identified at an educational institution.

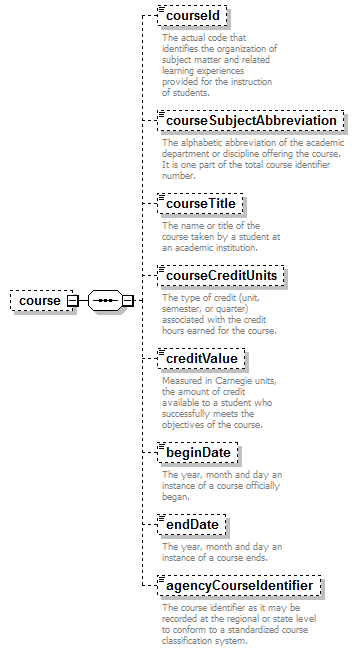

element psSectionType/course

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	courseId courseSubjectAbbreviation courseTitle courseCreditUnits creditValue beginDate endDate agencyCourseIdentifier

element psSectionType/course/courseId

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000055</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3055</cedsURL> documentation The actual code that identifies the organization of subject matter and related learning experiences provided for the instruction of students.

element psSectionType/course/courseSubjectAbbreviation

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000066</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3066</cedsURL> documentation The alphabetic abbreviation of the academic department or discipline offering the course. It is one part of the total course identifier number.

element psSectionType/course/courseTitle

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000068</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3068</cedsURL> documentation The name or title of the course taken by a student at an academic institution.

element psSectionType/course/courseCreditUnits

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000057</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3057</cedsURL> documentation The type of credit (unit, semester, or quarter) associated with the credit hours earned for the course.

element psSectionType/course/creditValue

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000058</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3058</cedsURL> documentation Measured in Carnegie units, the amount of credit available to a student who successfully meets the objectives of the course.

element psSectionType/course/beginDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000054</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3054</cedsURL> documentation The year, month and day an instance of a course officially began.

element psSectionType/course/endDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000059</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3059</cedsURL> documentation The year, month and day an instance of a course ends.

element psSectionType/course/agencyCourseIdentifier

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Agency Course Identifier</elementName> <sifChar>O</sifChar> <cedsId>001280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6246</cedsURL> documentation The course identifier as it may be recorded at the regional or state level to conform to a standardized course classification system.

element psSectionType/enrollmentList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	enrollment

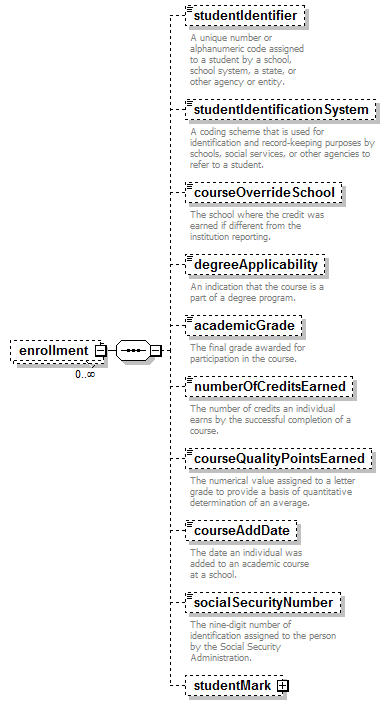

element psSectionType/enrollmentList/enrollment

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	studentIdentifier studentIdentificationSystem courseOverrideSchool degreeApplicability academicGrade numberOfCreditsEarned courseQualityPointsEarned courseAddDate socialSecurityNumber studentMark

element psSectionType/enrollmentList/enrollment/studentIdentifier

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Student Identifier</elementName> <sifChar>O</sifChar> <cedsId>001071</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5157</cedsURL> documentation A unique number or alphanumeric code assigned to a student by a school, school system, a state, or other agency or entity.

element psSectionType/enrollmentList/enrollment/studentIdentificationSystem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Student Identification System</elementName> <sifChar>O</sifChar> <cedsId>001075</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5163</cedsURL> documentation A coding scheme that is used for identification and record-keeping purposes by schools, social services, or other agencies to refer to a student.

element psSectionType/enrollmentList/enrollment/courseOverrideSchool

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Override School</elementName> <sifChar>O</sifChar> <cedsId>000063</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5063</cedsURL> documentation The school where the credit was earned if different from the institution reporting.

element psSectionType/enrollmentList/enrollment/degreeApplicability

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Degree Applicability</elementName> <sifChar>O</sifChar> <cedsId>000077</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5077</cedsURL> documentation An indication that the course is a part of a degree program.

element psSectionType/enrollmentList/enrollment/academicGrade

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Academic Grade</elementName> <sifChar>O</sifChar> <cedsId>000053</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5053</cedsURL> documentation The final grade awarded for participation in the course.

element psSectionType/enrollmentList/enrollment/numberOfCreditsEarned

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Number of Credits Earned</elementName> <sifChar>O</sifChar> <cedsId>000200</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5200</cedsURL> documentation The number of credits an individual earns by the successful completion of a course.

element psSectionType/enrollmentList/enrollment/courseQualityPointsEarned

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Quality Points Earned</elementName> <sifChar>O</sifChar> <cedsId>000064</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5064</cedsURL> documentation The numerical value assigned to a letter grade to provide a basis of quantitative determination of an average.

element psSectionType/enrollmentList/enrollment/courseAddDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Add Date</elementName> <sifChar>O</sifChar> <cedsId>001300</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6266</cedsURL> documentation The date an individual was added to an academic course at a school.

element psSectionType/enrollmentList/enrollment/socialSecurityNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Social Security Number</elementName> <sifChar>O</sifChar> <cedsId>000259</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5259</cedsURL> documentation The nine-digit number of identification assigned to the person by the Social Security Administration.

element psSectionType/enrollmentList/enrollment/studentMark

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	academicGradeStatusCode

element psSectionType/enrollmentList/enrollment/studentMark/academicGradeStatusCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Course Academic Grade Status Code</elementName> <sifChar>O</sifChar> <cedsId>001299</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6265</cedsURL> documentation Additional information regarding the context of the given grade.

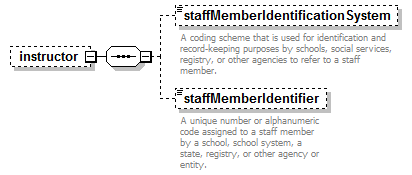

element psSectionType/instructor

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	staffMemberIdentificationSystem staffMemberIdentifier

element psSectionType/instructor/staffMemberIdentificationSystem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Staff Member Identification System</elementName> <sifChar>O</sifChar> <cedsId>001074</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5162</cedsURL> documentation A coding scheme that is used for identification and record-keeping purposes by schools, social services, registry, or other agencies to refer to a staff member.

element psSectionType/instructor/staffMemberIdentifier

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Staff Member Identifier</elementName> <sifChar>O</sifChar> <cedsId>001070</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5156</cedsURL> documentation A unique number or alphanumeric code assigned to a staff member by a school, school system, a state, registry, or other agency or entity.
