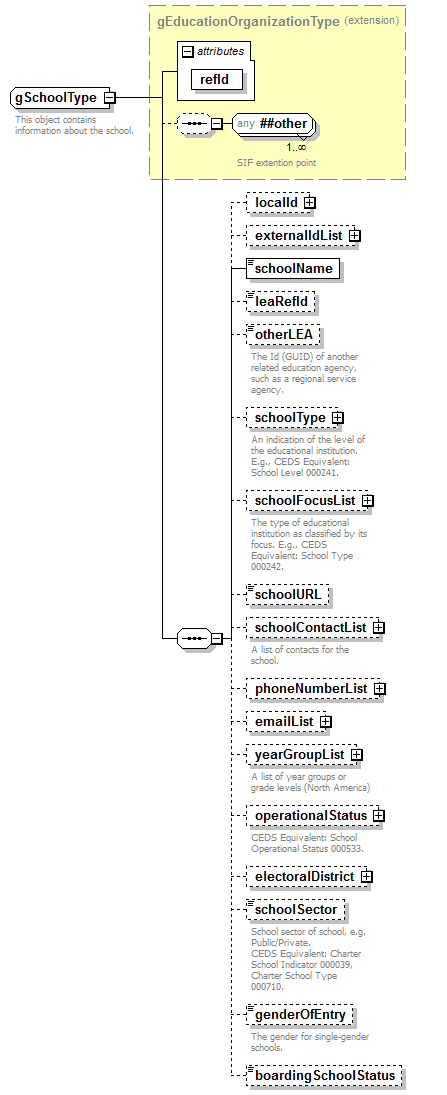

complexType gSchoolType

diagram
type	extension of gEducationOrganizationType
properties	base  gEducationOrganizationType
children	localId externalIdList schoolName leaRefId otherLEA schoolType schoolFocusList schoolURL schoolContactList phoneNumberList emailList yearGroupList operationalStatus electoralDistrict schoolSector genderOfEntry boardingSchoolStatus
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation This object contains information about the school.

element gSchoolType/localId

diagram
type	gLocalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue

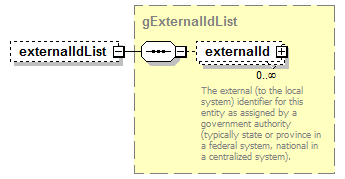

element gSchoolType/externalIdList

diagram
type	gExternalIdList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	externalId

element gSchoolType/schoolName

diagram
type	xs:token
properties	isRef  0 content  simple

element gSchoolType/leaRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element gSchoolType/otherLEA

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	documentation The Id (GUID) of another related education agency, such as a regional service agency.

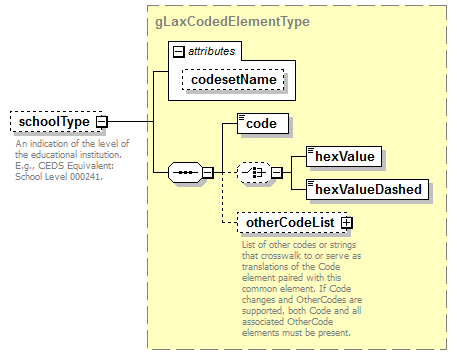

element gSchoolType/schoolType

diagram
type	gLaxCodedElementType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	documentation An indication of the level of the educational institution. E.g., CEDS Equivalent: School Level 000241.

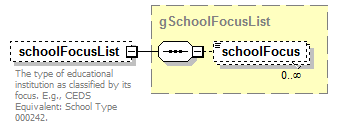

element gSchoolType/schoolFocusList

diagram
type	gSchoolFocusList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	schoolFocus
annotation	documentation The type of educational institution as classified by its focus. E.g., CEDS Equivalent: School Type 000242.

element gSchoolType/schoolURL

diagram
type	xs:anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gSchoolType/schoolContactList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	schoolContact
annotation	documentation A list of contacts for the school.

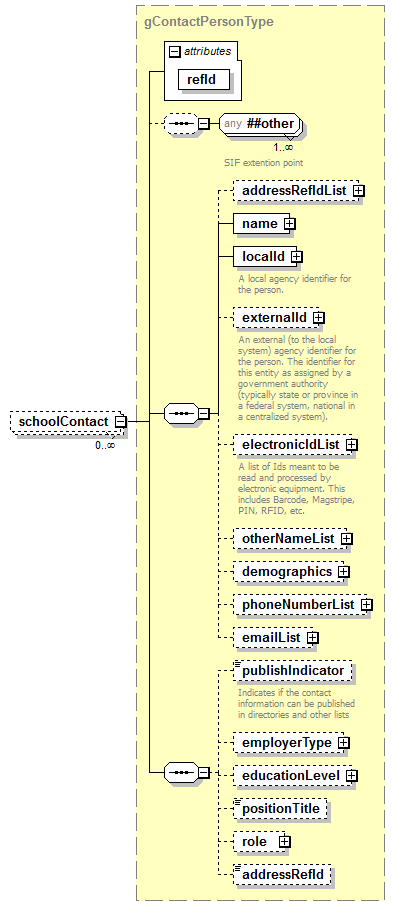

element gSchoolType/schoolContactList/schoolContact

diagram
type	gContactPersonType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	addressRefIdList name localId externalId electronicIdList otherNameList demographics phoneNumberList emailList publishIndicator employerType educationLevel positionTitle role addressRefId
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required

element gSchoolType/phoneNumberList

diagram
type	gPhoneNumberList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumber

element gSchoolType/emailList

diagram
type	gEmailList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	email

element gSchoolType/yearGroupList

diagram
type	gYearGroupList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yearGroup
annotation	documentation A list of year groups or grade levels (North America)

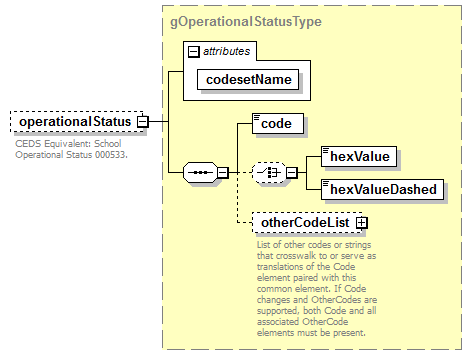

element gSchoolType/operationalStatus

diagram
type	gOperationalStatusType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	documentation CEDS Equivalent: School Operational Status 000533.

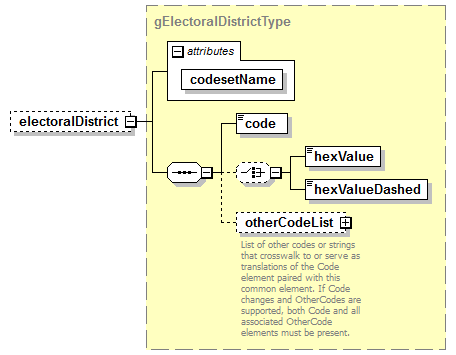

element gSchoolType/electoralDistrict

diagram
type	gElectoralDistrictType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required

element gSchoolType/schoolSector

diagram
type	gSchoolSectorType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation School sector of school, e.g. Public/Private. CEDS Equivalent: Charter School Indicator 000039, Charter School Type 000710.

element gSchoolType/genderOfEntry

diagram
type	gGenderOfEntryType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The gender for single-gender schools.

element gSchoolType/boardingSchoolStatus

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
