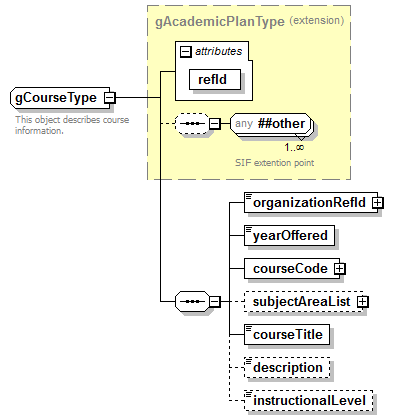

complexType gCourseType

diagram
type	extension of gAcademicPlanType
properties	base  gAcademicPlanType
children	organizationRefId yearOffered courseCode subjectAreaList courseTitle description instructionalLevel
used by	complexType  gK12CourseType
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation This object describes course information.

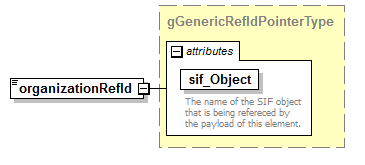

element gCourseType/organizationRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

element gCourseType/yearOffered

diagram
type	xs:gYear
properties	isRef  0 content  simple

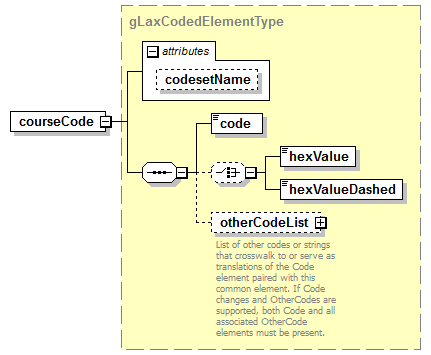

element gCourseType/courseCode

diagram
type	gLaxCodedElementType
properties	isRef  0 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName

element gCourseType/subjectAreaList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subjectArea

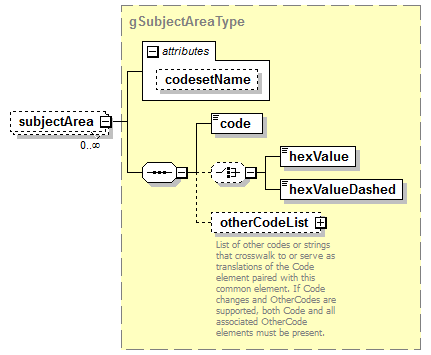

element gCourseType/subjectAreaList/subjectArea

diagram
type	gSubjectAreaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName

element gCourseType/courseTitle

diagram
type	xs:token
properties	isRef  0 content  simple

element gCourseType/description

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gCourseType/instructionalLevel

diagram
type	gInstructionalLevelType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
