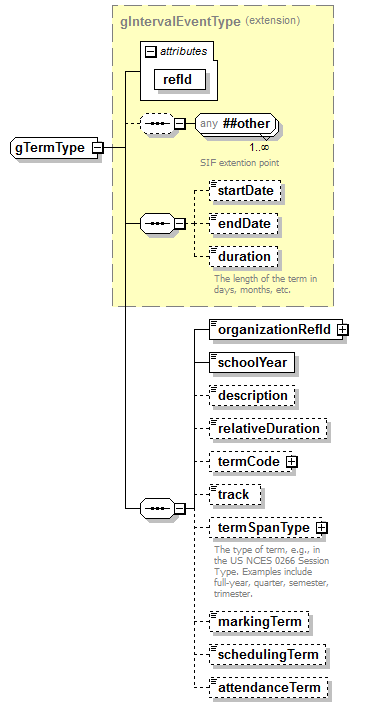

complexType gTermType

diagram
type	extension of gIntervalEventType
properties	base  gIntervalEventType
children	startDate endDate duration organizationRefId schoolYear description relativeDuration termCode track termSpanType markingTerm schedulingTerm attendanceTerm
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/>

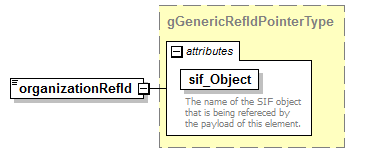

element gTermType/organizationRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

element gTermType/schoolYear

diagram
type	xs:gYear
properties	isRef  0 content  simple

element gTermType/description

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gTermType/relativeDuration

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

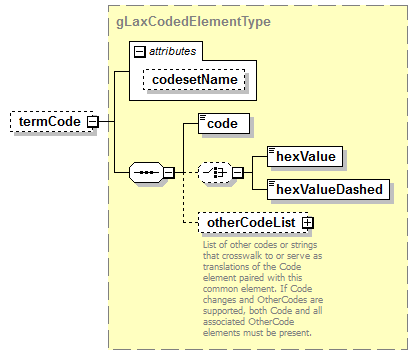

element gTermType/termCode

diagram
type	gLaxCodedElementType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName

element gTermType/track

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

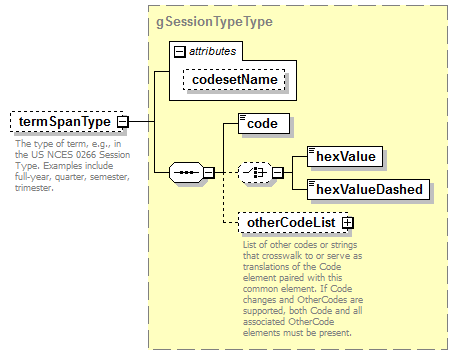

element gTermType/termSpanType

diagram
type	gSessionTypeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	documentation The type of term, e.g., in the US NCES 0266 Session Type. Examples include full-year, quarter, semester, trimester.

element gTermType/markingTerm

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes

element gTermType/schedulingTerm

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes

element gTermType/attendanceTerm

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
