complexType achievementCEDSType

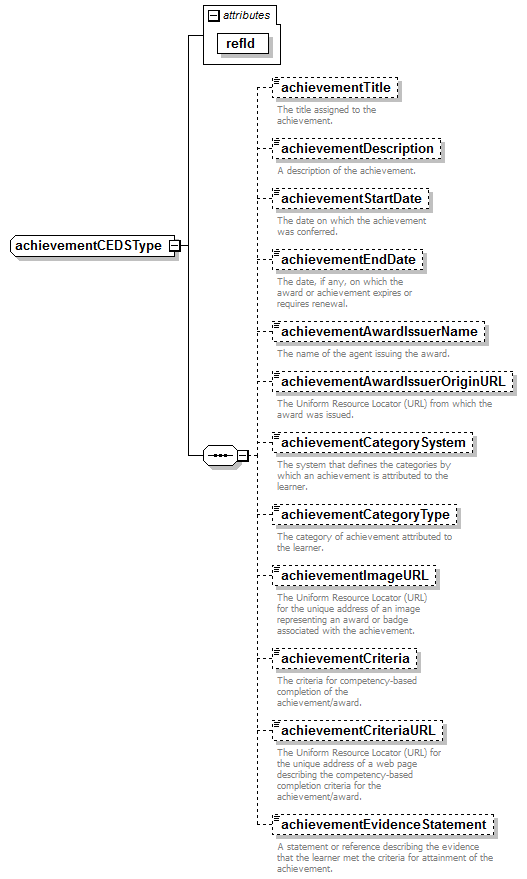

diagram
children	achievementTitle achievementDescription achievementStartDate achievementEndDate achievementAwardIssuerName achievementAwardIssuerOriginURL achievementCategorySystem achievementCategoryType achievementImageURL achievementCriteria achievementCriteriaURL achievementEvidenceStatement
used by	element  achievementCEDS
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName/> <events/> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/>

attribute achievementCEDSType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element achievementCEDSType/achievementTitle

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Title</elementName> <sifChar>O</sifChar> <cedsId>000893</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5893</cedsURL> documentation The title assigned to the achievement.

element achievementCEDSType/achievementDescription

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Description</elementName> <sifChar>O</sifChar> <cedsId>000895</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5895</cedsURL> documentation A description of the achievement.

element achievementCEDSType/achievementStartDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Start Date</elementName> <sifChar>O</sifChar> <cedsId>001163</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6120</cedsURL> documentation The date on which the achievement was conferred.

element achievementCEDSType/achievementEndDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement End Date</elementName> <sifChar>O</sifChar> <cedsId>001164</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6121</cedsURL> documentation The date, if any, on which the award or achievement expires or requires renewal.

element achievementCEDSType/achievementAwardIssuerName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Award Issuer Name</elementName> <sifChar>O</sifChar> <cedsId>000898</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5898</cedsURL> documentation The name of the agent issuing the award.

element achievementCEDSType/achievementAwardIssuerOriginURL

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Award Issuer Origin URL</elementName> <sifChar>O</sifChar> <cedsId>000900</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5900</cedsURL> documentation The Uniform Resource Locator (URL) from which the award was issued.

element achievementCEDSType/achievementCategorySystem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Category System</elementName> <sifChar>O</sifChar> <cedsId>001245</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6211</cedsURL> documentation The system that defines the categories by which an achievement is attributed to the learner.

element achievementCEDSType/achievementCategoryType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Category Type</elementName> <sifChar>O</sifChar> <cedsId>000892</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5892</cedsURL> documentation The category of achievement attributed to the learner.

element achievementCEDSType/achievementImageURL

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Image URL</elementName> <sifChar>O</sifChar> <cedsId>000894</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5894</cedsURL> documentation The Uniform Resource Locator (URL) for the unique address of an image representing an award or badge associated with the achievement.

element achievementCEDSType/achievementCriteria

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Criteria</elementName> <sifChar>O</sifChar> <cedsId>000896</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5896</cedsURL> documentation The criteria for competency-based completion of the achievement/award.

element achievementCEDSType/achievementCriteriaURL

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Criteria URL</elementName> <sifChar>O</sifChar> <cedsId>001153</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6113</cedsURL> documentation The Uniform Resource Locator (URL) for the unique address of a web page describing the competency-based completion criteria for the achievement/award.

element achievementCEDSType/achievementEvidenceStatement

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Achievement Evidence Statement</elementName> <sifChar>O</sifChar> <cedsId>000901</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5901</cedsURL> documentation A statement or reference describing the evidence that the learner met the criteria for attainment of the achievement.
