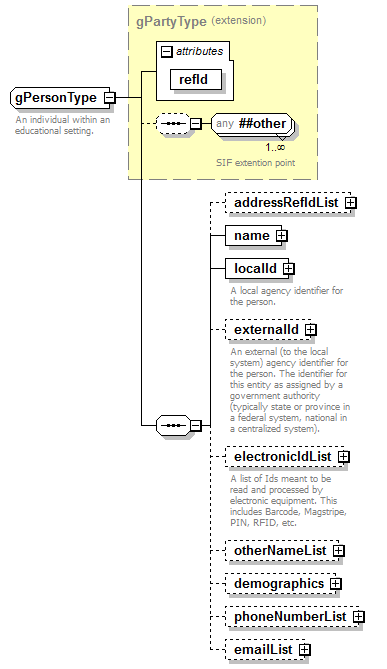

complexType gPersonType

diagram
type	extension of gPartyType
properties	base  gPartyType
children	addressRefIdList name localId externalId electronicIdList otherNameList demographics phoneNumberList emailList
used by	complexTypes  gClientType gServiceProviderType
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation An individual within an educational setting.

element gPersonType/addressRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	addressRefId

element gPersonType/addressRefIdList/addressRefId

diagram
type	extension of gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation addressRole          documentation The type or function of the address, e.g., summer address, mailing address, residential address, etc.

attribute gPersonType/addressRefIdList/addressRefId/@addressRole

properties	isRef  0
annotation	documentation The type or function of the address, e.g., summer address, mailing address, residential address, etc.

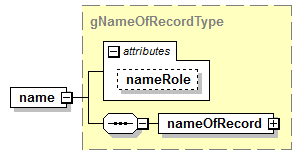

element gPersonType/name

diagram
type	gNameOfRecordType
properties	isRef  0 content  complex
children	nameOfRecord
attributes	Name   Type   Use   Default   Fixed   annotation nameRole gNameRoleType optional         appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

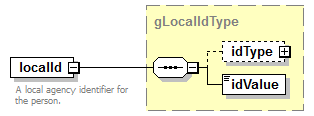

element gPersonType/localId

diagram
type	gLocalIdType
properties	isRef  0 content  complex
children	idType idValue
annotation	documentation A local agency identifier for the person.

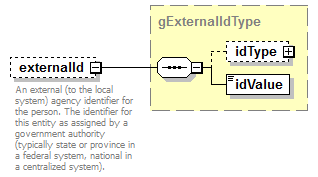

element gPersonType/externalId

diagram
type	gExternalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue
annotation	documentation An external (to the local system) agency identifier for the person. The identifier for this entity as assigned by a government authority (typically state or province in a federal system, national in a centralized system).

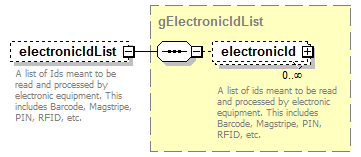

element gPersonType/electronicIdList

diagram
type	gElectronicIdList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	electronicId
annotation	documentation A list of Ids meant to be read and processed by electronic equipment. This includes Barcode, Magstripe, PIN, RFID, etc.

element gPersonType/otherNameList

diagram
type	gOtherNameListType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	otherName

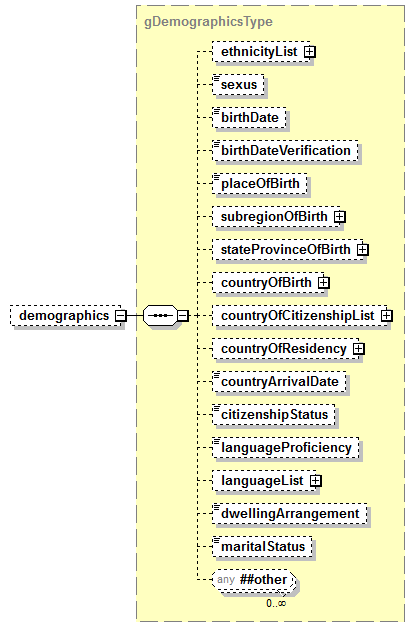

element gPersonType/demographics

diagram
type	gDemographicsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	ethnicityList sexus birthDate birthDateVerification placeOfBirth subregionOfBirth stateProvinceOfBirth countryOfBirth countryOfCitizenshipList countryOfResidency countryArrivalDate citizenshipStatus languageProficiency languageList dwellingArrangement maritalStatus

element gPersonType/phoneNumberList

diagram
type	gPhoneNumberList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumber

element gPersonType/emailList

diagram
type	gEmailList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	email
