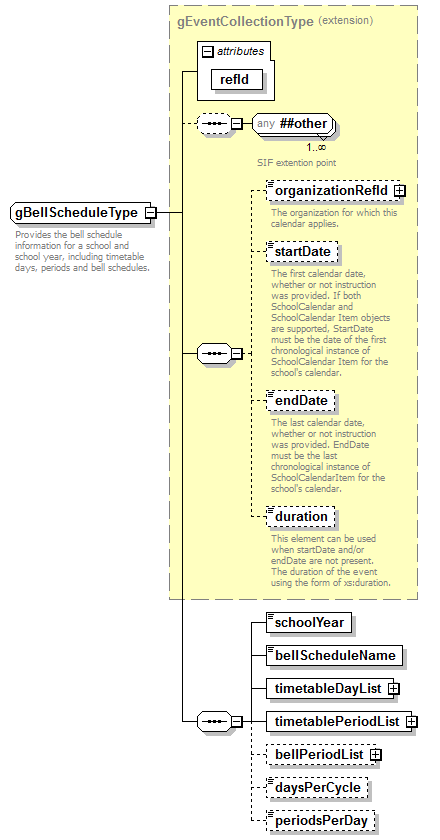

complexType gBellScheduleType

diagram
type	extension of gEventCollectionType
properties	base  gEventCollectionType
children	organizationRefId startDate endDate duration schoolYear bellScheduleName timetableDayList timetablePeriodList bellPeriodList daysPerCycle periodsPerDay
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation Provides the bell schedule information for a school and school year, including timetable days, periods and bell schedules.

element gBellScheduleType/schoolYear

diagram
type	xs:gYear
properties	isRef  0 content  simple

element gBellScheduleType/bellScheduleName

diagram
type	xs:token
properties	isRef  0 content  simple

element gBellScheduleType/timetableDayList

diagram
type	gTimetableDayList
properties	isRef  0 content  complex
children	timetableDay

element gBellScheduleType/timetablePeriodList

diagram
type	gTimetablePeriodList
properties	isRef  0 content  complex
children	timetablePeriod

element gBellScheduleType/bellPeriodList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	bellPeriod

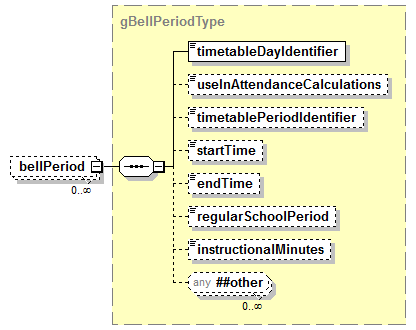

element gBellScheduleType/bellPeriodList/bellPeriod

diagram
type	gBellPeriodType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	timetableDayIdentifier useInAttendanceCalculations timetablePeriodIdentifier startTime endTime regularSchoolPeriod instructionalMinutes

element gBellScheduleType/daysPerCycle

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gBellScheduleType/periodsPerDay

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
