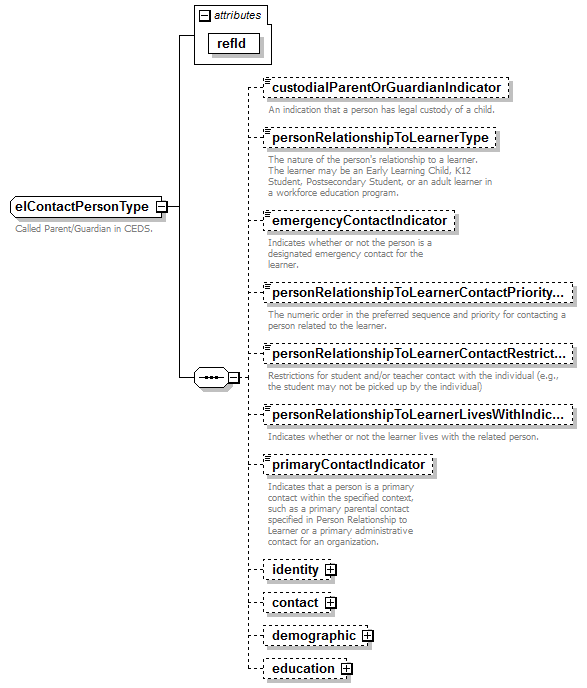

complexType elContactPersonType

diagram
children	custodialParentOrGuardianIndicator personRelationshipToLearnerType emergencyContactIndicator personRelationshipToLearnerContactPriorityNumber personRelationshipToLearnerContactRestrictionsDescription personRelationshipToLearnerLivesWithIndicator primaryContactIndicator identity contact demographic education
used by	element  elContactPerson
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	documentation Called Parent/Guardian in CEDS.

attribute elContactPersonType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element elContactPersonType/custodialParentOrGuardianIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Custodial Parent or Guardian Indicator</elementName> <sifChar>O</sifChar> <cedsId>000329</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5328</cedsURL> documentation An indication that a person has legal custody of a child.

element elContactPersonType/personRelationshipToLearnerType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Person Relationship to Learner Type</elementName> <sifChar>O</sifChar> <cedsId>000425</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5415</cedsURL> documentation The nature of the person's relationship to a learner. The learner may be an Early Learning Child, K12 Student, Postsecondary Student, or an adult learner in a workforce education program.

element elContactPersonType/emergencyContactIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Emergency Contact Indicator</elementName> <sifChar>O</sifChar> <cedsId>001341</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6308</cedsURL> documentation Indicates whether or not the person is a designated emergency contact for the learner.

element elContactPersonType/personRelationshipToLearnerContactPriorityNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Person Relationship to Learner Contact Priority Number</elementName> <sifChar>O</sifChar> <cedsId>001423</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6392</cedsURL> documentation The numeric order in the preferred sequence and priority for contacting a person related to the learner.

element elContactPersonType/personRelationshipToLearnerContactRestrictionsDescription

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Person Relationship to Learner Contact Restrictions Description</elementName> <sifChar>O</sifChar> <cedsId>001424</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6393</cedsURL> documentation Restrictions for student and/or teacher contact with the individual (e.g., the student may not be picked up by the individual)

element elContactPersonType/personRelationshipToLearnerLivesWithIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Person Relationship to Learner Lives With Indicator</elementName> <sifChar>O</sifChar> <cedsId>001425</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6394</cedsURL> documentation Indicates whether or not the learner lives with the related person.

element elContactPersonType/primaryContactIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Primary Contact Indicator</elementName> <sifChar>O</sifChar> <cedsId>001428</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6397</cedsURL> documentation Indicates that a person is a primary contact within the specified context, such as a primary parental contact specified in Person Relationship to Learner or a primary administrative contact for an organization.

element elContactPersonType/identity

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name otherNameList

element elContactPersonType/identity/name

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	firstName middleName lastName suffix prefix

element elContactPersonType/identity/name/firstName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000115</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3115</cedsURL> documentation The full legal first name given to a person at birth, baptism, or through legal change.

element elContactPersonType/identity/name/middleName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000184</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3184</cedsURL> documentation A full legal middle name given to a person at birth, baptism, or through legal change.

element elContactPersonType/identity/name/lastName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000172</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3172</cedsURL> documentation The full legal last name borne in common by members of a family.

element elContactPersonType/identity/name/suffix

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000121</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3121</cedsURL> documentation An appendage, if any, used to denote a person's generation in his family (e.g., Jr., Sr., III).

element elContactPersonType/identity/name/prefix

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000212</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3212</cedsURL> documentation An appellation, if any, used to denote rank, placement, or status (e.g., Mr., Ms., Reverend, Sister, Dr., Colonel).

element elContactPersonType/identity/otherNameList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	otherName

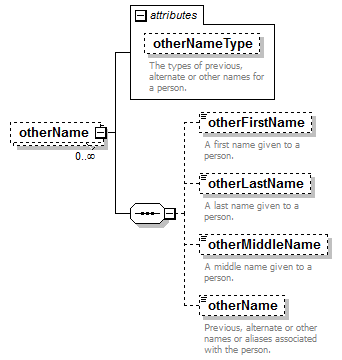

element elContactPersonType/identity/otherNameList/otherName

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	otherFirstName otherLastName otherMiddleName otherName
attributes	Name   Type   Use   Default   Fixed   annotation otherNameType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000634</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3627</cedsURL> documentation The types of previous, alternate or other names for a person.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute elContactPersonType/identity/otherNameList/otherName/@otherNameType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000634</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3627</cedsURL> documentation The types of previous, alternate or other names for a person.

element elContactPersonType/identity/otherNameList/otherName/otherFirstName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Other First Name</elementName> <sifChar>O</sifChar> <cedsId>001514</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6486</cedsURL> documentation A first name given to a person.

element elContactPersonType/identity/otherNameList/otherName/otherLastName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Other Last Name</elementName> <sifChar>O</sifChar> <cedsId>001513</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6485</cedsURL> documentation A last name given to a person.

element elContactPersonType/identity/otherNameList/otherName/otherMiddleName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Other Middle Name</elementName> <sifChar>O</sifChar> <cedsId>001515</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=6487</cedsURL> documentation A middle name given to a person.

element elContactPersonType/identity/otherNameList/otherName/otherName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Other Name</elementName> <sifChar>O</sifChar> <cedsId>000206</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5206</cedsURL> documentation Previous, alternate or other names or aliases associated with the person.

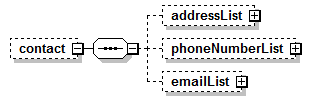

element elContactPersonType/contact

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	addressList phoneNumberList emailList

element elContactPersonType/contact/addressList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	address

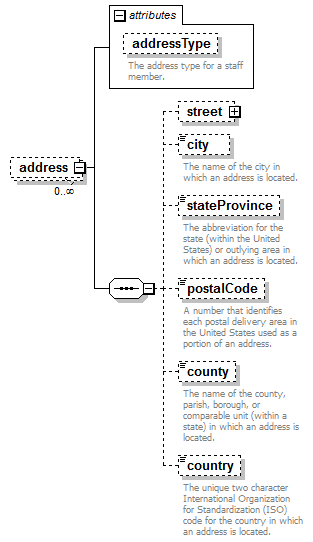

element elContactPersonType/contact/addressList/address

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	street city stateProvince postalCode county country
attributes	Name   Type   Use   Default   Fixed   annotation addressType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000722</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3698</cedsURL> documentation The address type for a staff member.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute elContactPersonType/contact/addressList/address/@addressType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000722</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3698</cedsURL> documentation The address type for a staff member.

element elContactPersonType/contact/addressList/address/street

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	line1 apartmentNumber

element elContactPersonType/contact/addressList/address/street/line1

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000269</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3269</cedsURL> documentation The street number and street name or post office box number of an address.

element elContactPersonType/contact/addressList/address/street/apartmentNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000019</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3019</cedsURL> documentation The apartment, room, or suite number of an address.

element elContactPersonType/contact/addressList/address/city

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000040</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3040</cedsURL> documentation The name of the city in which an address is located.

element elContactPersonType/contact/addressList/address/stateProvince

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000267</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3267</cedsURL> documentation The abbreviation for the state (within the United States) or outlying area in which an address is located.

element elContactPersonType/contact/addressList/address/postalCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000214</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3214</cedsURL> documentation A number that identifies each postal delivery area in the United States used as a portion of an address.

element elContactPersonType/contact/addressList/address/county

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000190</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3190</cedsURL> documentation The name of the county, parish, borough, or comparable unit (within a state) in which an address is located.

element elContactPersonType/contact/addressList/address/country

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000050</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3050</cedsURL> documentation The unique two character International Organization for Standardization (ISO) code for the country in which an address is located.

element elContactPersonType/contact/phoneNumberList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumber

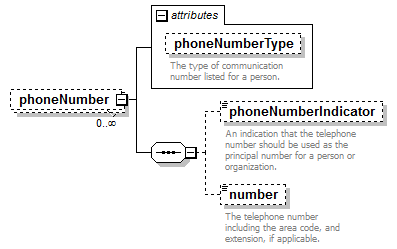

element elContactPersonType/contact/phoneNumberList/phoneNumber

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	phoneNumberIndicator number
attributes	Name   Type   Use   Default   Fixed   annotation phoneNumberType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3280</cedsURL> documentation The type of communication number listed for a person.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute elContactPersonType/contact/phoneNumberList/phoneNumber/@phoneNumberType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3280</cedsURL> documentation The type of communication number listed for a person.

element elContactPersonType/contact/phoneNumberList/phoneNumber/phoneNumberIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000219</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3219</cedsURL> documentation An indication that the telephone number should be used as the principal number for a person or organization.

element elContactPersonType/contact/phoneNumberList/phoneNumber/number

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000279</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3279</cedsURL> documentation The telephone number including the area code, and extension, if applicable.

element elContactPersonType/contact/emailList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	email

element elContactPersonType/contact/emailList/email

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation emailType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000089</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3089</cedsURL> documentation The type of electronic mail (e-mail) address listed for a person or organization.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute elContactPersonType/contact/emailList/email/@emailType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000089</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3089</cedsURL> documentation The type of electronic mail (e-mail) address listed for a person or organization.

element elContactPersonType/demographic

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	birthdate

element elContactPersonType/demographic/birthdate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Birthdate</elementName> <sifChar>O</sifChar> <cedsId>000033</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5033</cedsURL> documentation The year, month and day on which a person was born.

element elContactPersonType/education

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	highestLevelOfEducationCompleted

element elContactPersonType/education/highestLevelOfEducationCompleted

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName>Highest Level of Education Completed</elementName> <sifChar>O</sifChar> <cedsId>000141</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=5141</cedsURL> documentation The extent of formal instruction a person has received (e.g., the highest grade in school completed or its equivalent or the highest degree received).
