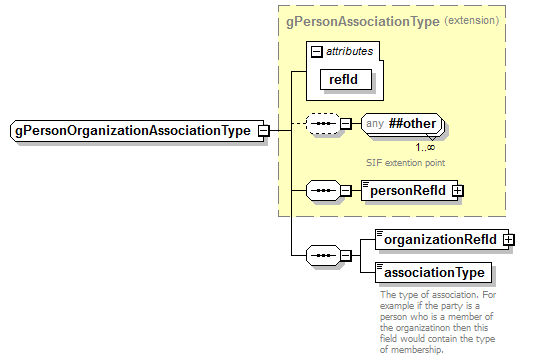

complexType gPersonOrganizationAssociationType

diagram
type	extension of gPersonAssociationType
properties	base  gPersonAssociationType
children	personRefId organizationRefId associationType
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required

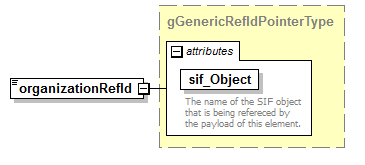

element gPersonOrganizationAssociationType/organizationRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

element gPersonOrganizationAssociationType/associationType

diagram
type	xs:token
properties	isRef  0 content  simple
annotation	documentation The type of association. For example if the party is a person who is a member of the organizatinon then this field would contain the type of membership.
