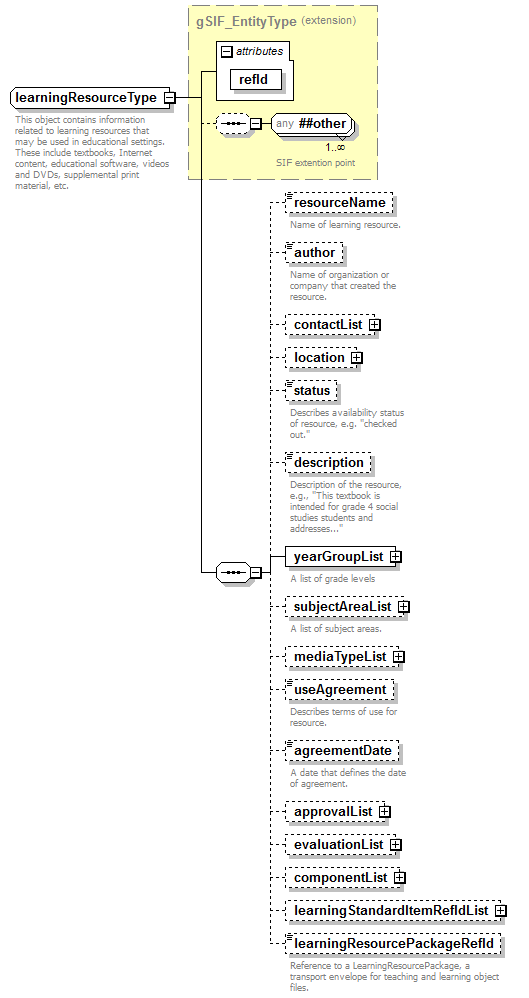

complexType learningResourceType

diagram
type	extension of gSIF_EntityType
properties	base  gSIF_EntityType
children	resourceName author contactList location status description yearGroupList subjectAreaList mediaTypeList useAgreement agreementDate approvalList evaluationList componentList learningStandardItemRefIdList learningResourcePackageRefId
used by	element  learningResource
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Learning Resource</elementName> <events>yes</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation This object contains information related to learning resources that may be used in educational settings. These include textbooks, Internet content, educational software, videos and DVDs, supplemental print material, etc.

element learningResourceType/resourceName

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of learning resource.

element learningResourceType/author

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of organization or company that created the resource.

element learningResourceType/contactList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	contact
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/contactList/contact

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name address phoneNumber email
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/contactList/contact/name

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of contact person.

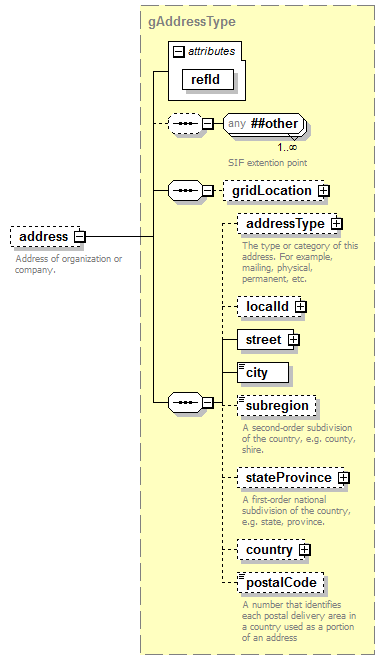

element learningResourceType/contactList/contact/address

diagram
type	gAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gridLocation addressType localId street city subregion stateProvince country postalCode
used by	element  seaType/addressList
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Address of organization or company.

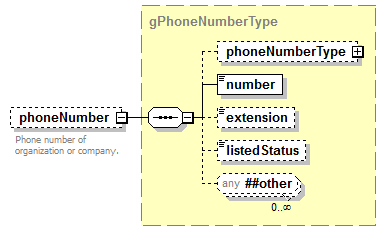

element learningResourceType/contactList/contact/phoneNumber

diagram
type	gPhoneNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumberType number extension listedStatus
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Phone number of organization or company.

element learningResourceType/contactList/contact/email

diagram
type	gEmailType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	emailType emailAddress
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The email of the organization or company.

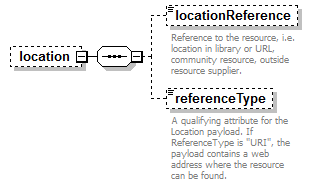

element learningResourceType/location

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationReference referenceType

element learningResourceType/location/locationReference

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Reference to the resource, i.e. location in library or URL, community resource, outside resource supplier.

element learningResourceType/location/referenceType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A qualifying attribute for the Location payload. If ReferenceType is "URI", the payload contains a web address where the resource can be found.

element learningResourceType/status

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Describes availability status of resource, e.g. "checked out."

element learningResourceType/description

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Description of the resource, e.g., "This textbook is intended for grade 4 social studies students and addresses..."

element learningResourceType/yearGroupList

diagram
type	gYearGroupList
properties	isRef  0 content  complex
children	yearGroup
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A list of grade levels

element learningResourceType/subjectAreaList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subjectArea
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A list of subject areas.

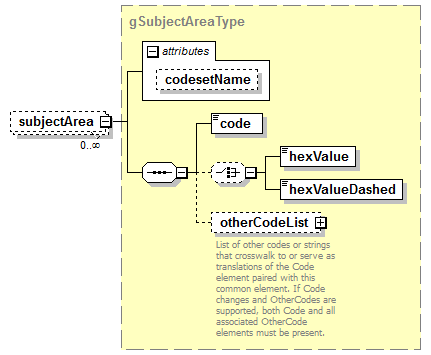

element learningResourceType/subjectAreaList/subjectArea

diagram
type	gSubjectAreaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/mediaTypeList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	mediaType
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/mediaTypeList/mediaType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation MIME type [MIME] based on IANA registration (see RFC2048) or 'non-digital'.

element learningResourceType/useAgreement

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Describes terms of use for resource.

element learningResourceType/agreementDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A date that defines the date of agreement.

element learningResourceType/approvalList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	approval
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/approvalList/approval

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	organization approvalDate
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/approvalList/approval/organization

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of agency that approved use of resource.

element learningResourceType/approvalList/approval/approvalDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date resource was approved.

element learningResourceType/evaluationList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	evaluation
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

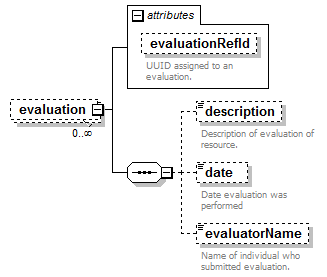

element learningResourceType/evaluationList/evaluation

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	description date evaluatorName
attributes	Name   Type   Use   Default   Fixed   annotation evaluationRefId gRefIdPointerType          appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation UUID assigned to an evaluation.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute learningResourceType/evaluationList/evaluation/@evaluationRefId

type	gRefIdPointerType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation UUID assigned to an evaluation.

element learningResourceType/evaluationList/evaluation/description

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Description of evaluation of resource.

element learningResourceType/evaluationList/evaluation/date

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date evaluation was performed

element learningResourceType/evaluationList/evaluation/evaluatorName

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of individual who submitted evaluation.

element learningResourceType/componentList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	component
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

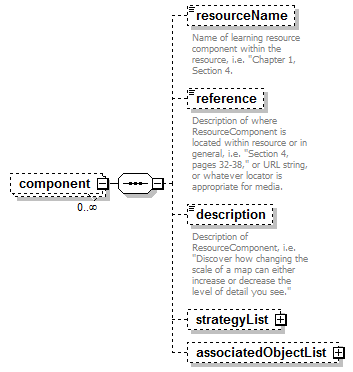

element learningResourceType/componentList/component

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	resourceName reference description strategyList associatedObjectList
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/componentList/component/resourceName

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of learning resource component within the resource, i.e. "Chapter 1, Section 4.

element learningResourceType/componentList/component/reference

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Description of where ResourceComponent is located within resource or in general, i.e. "Section 4, pages 32-38," or URL string, or whatever locator is appropriate for media.

element learningResourceType/componentList/component/description

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Description of ResourceComponent, i.e. "Discover how changing the scale of a map can either increase or decrease the level of detail you see."

element learningResourceType/componentList/component/strategyList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	strategy
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/componentList/component/strategyList/strategy

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Teaching/learning strategy used in the learning resource. One per element.

element learningResourceType/componentList/component/associatedObjectList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	associatedObject
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

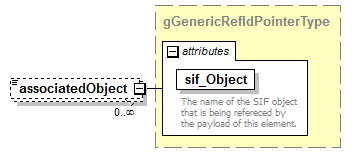

element learningResourceType/componentList/component/associatedObjectList/associatedObject

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/learningStandardItemRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	learningStandardItemRefId
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element learningResourceType/learningStandardItemRefIdList/learningStandardItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Reference to a LearningStandardItem.

element learningResourceType/learningResourcePackageRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Reference to a LearningResourcePackage, a transport envelope for teaching and learning object files.
