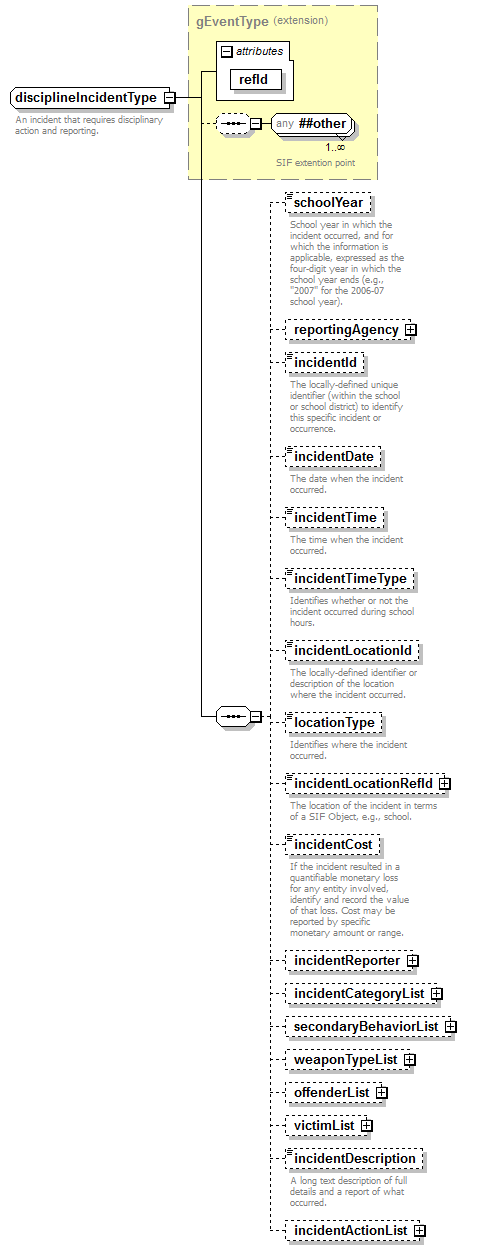

complexType disciplineIncidentType

diagram
type	extension of gEventType
properties	base  gEventType
children	schoolYear reportingAgency incidentId incidentDate incidentTime incidentTimeType incidentLocationId locationType incidentLocationRefId incidentCost incidentReporter incidentCategoryList secondaryBehaviorList weaponTypeList offenderList victimList incidentDescription incidentActionList
used by	element  disciplineIncident
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Discipline Incident</elementName> <events>yes</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation An incident that requires disciplinary action and reporting.

element disciplineIncidentType/schoolYear

diagram
type	xs:gYear
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation School year in which the incident occurred, and for which the information is applicable, expressed as the four-digit year in which the school year ends (e.g., "2007" for the 2006-07 school year).

element disciplineIncidentType/reportingAgency

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	agencyRefId agencyName

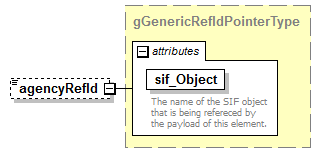

element disciplineIncidentType/reportingAgency/agencyRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

element disciplineIncidentType/reportingAgency/agencyName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element disciplineIncidentType/incidentId

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The locally-defined unique identifier (within the school or school district) to identify this specific incident or occurrence.

element disciplineIncidentType/incidentDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The date when the incident occurred.

element disciplineIncidentType/incidentTime

diagram
type	xs:time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The time when the incident occurred.

element disciplineIncidentType/incidentTimeType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not the incident occurred during school hours.

element disciplineIncidentType/incidentLocationId

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The locally-defined identifier or description of the location where the incident occurred.

element disciplineIncidentType/locationType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies where the incident occurred.

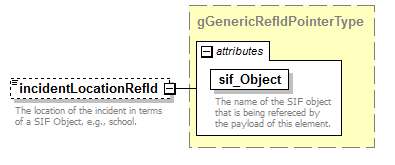

element disciplineIncidentType/incidentLocationRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.
annotation	documentation The location of the incident in terms of a SIF Object, e.g., school.

element disciplineIncidentType/incidentCost

diagram
type	restriction of xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  0  fractionDigits  2
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation If the incident resulted in a quantifiable monetary loss for any entity involved, identify and record the value of that loss. Cost may be reported by specific monetary amount or range.

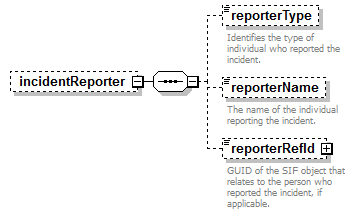

element disciplineIncidentType/incidentReporter

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	reporterType reporterName reporterRefId

element disciplineIncidentType/incidentReporter/reporterType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the type of individual who reported the incident.

element disciplineIncidentType/incidentReporter/reporterName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The name of the individual reporting the incident.

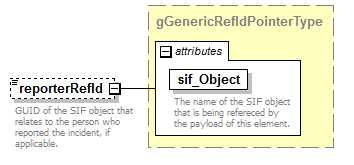

element disciplineIncidentType/incidentReporter/reporterRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.
annotation	documentation GUID of the SIF object that relates to the person who reported the incident, if applicable.

element disciplineIncidentType/incidentCategoryList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	incidentCategory
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

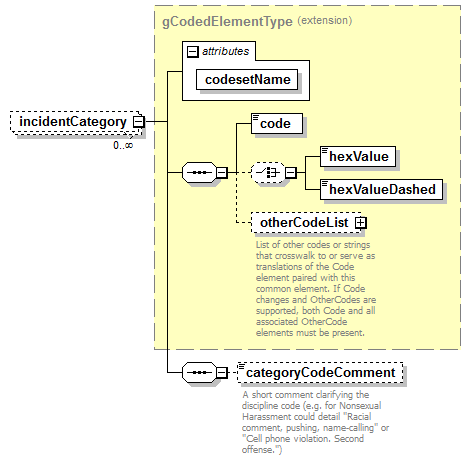

element disciplineIncidentType/incidentCategoryList/incidentCategory

diagram
type	extension of gCodedElementType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList categoryCodeComment
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/incidentCategoryList/incidentCategory/categoryCodeComment

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A short comment clarifying the discipline code (e.g. for Nonsexual Harassment could detail "Racial comment, pushing, name-calling" or "Cell phone violation. Second offense.")

element disciplineIncidentType/secondaryBehaviorList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	secondaryBehaviorCode
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/secondaryBehaviorList/secondaryBehaviorCode

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Identifies if incident was related to a specific category.

element disciplineIncidentType/weaponTypeList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	weaponType
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

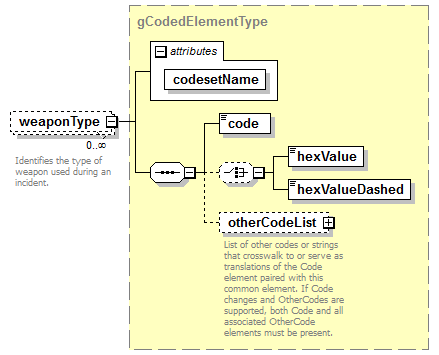

element disciplineIncidentType/weaponTypeList/weaponType

diagram
type	gCodedElementType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Identifies the type of weapon used during an incident.

element disciplineIncidentType/offenderList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	offender
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

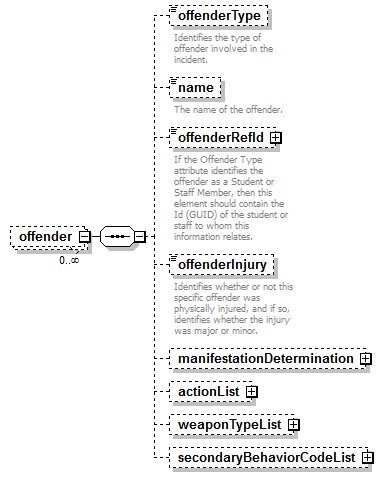

element disciplineIncidentType/offenderList/offender

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	offenderType name offenderRefId offenderInjury manifestationDetermination actionList weaponTypeList secondaryBehaviorCodeList
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/offenderList/offender/offenderType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the type of offender involved in the incident.

element disciplineIncidentType/offenderList/offender/name

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The name of the offender.

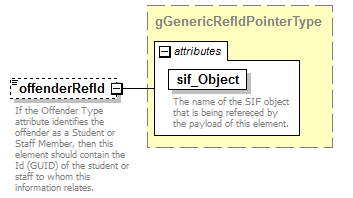

element disciplineIncidentType/offenderList/offender/offenderRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.
annotation	documentation If the Offender Type attribute identifies the offender as a Student or Staff Member, then this element should contain the Id (GUID) of the student or staff to whom this information relates.

element disciplineIncidentType/offenderList/offender/offenderInjury

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not this specific offender was physically injured, and if so, identifies whether the injury was major or minor.

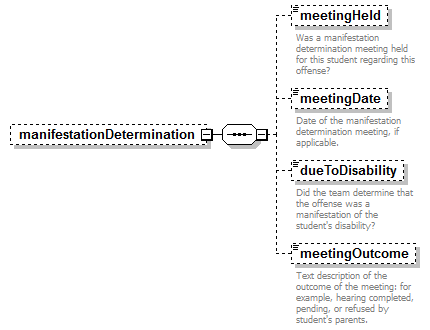

element disciplineIncidentType/offenderList/offender/manifestationDetermination

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	meetingHeld meetingDate dueToDisability meetingOutcome

element disciplineIncidentType/offenderList/offender/manifestationDetermination/meetingHeld

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Was a manifestation determination meeting held for this student regarding this offense?

element disciplineIncidentType/offenderList/offender/manifestationDetermination/meetingDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date of the manifestation determination meeting, if applicable.

element disciplineIncidentType/offenderList/offender/manifestationDetermination/dueToDisability

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Did the team determine that the offense was a manifestation of the student's disability?

element disciplineIncidentType/offenderList/offender/manifestationDetermination/meetingOutcome

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Text description of the outcome of the meeting: for example, hearing completed, pending, or refused by student's parents.

element disciplineIncidentType/offenderList/offender/actionList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	action
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

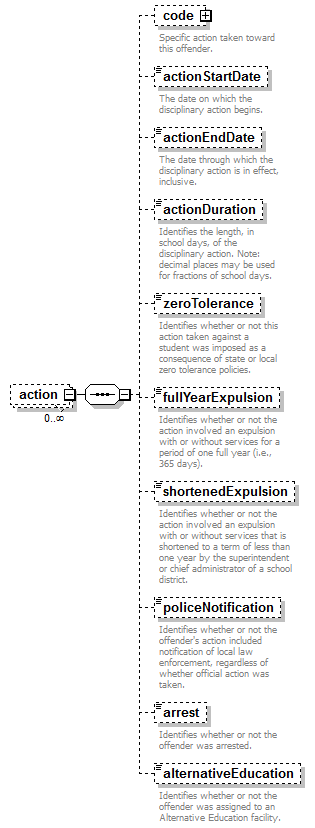

element disciplineIncidentType/offenderList/offender/actionList/action

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code actionStartDate actionEndDate actionDuration zeroTolerance fullYearExpulsion shortenedExpulsion policeNotification arrest alternativeEducation
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

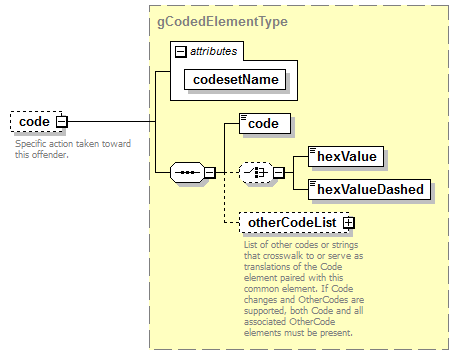

element disciplineIncidentType/offenderList/offender/actionList/action/code

diagram
type	gCodedElementType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Specific action taken toward this offender.

element disciplineIncidentType/offenderList/offender/actionList/action/actionStartDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The date on which the disciplinary action begins.

element disciplineIncidentType/offenderList/offender/actionList/action/actionEndDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The date through which the disciplinary action is in effect, inclusive.

element disciplineIncidentType/offenderList/offender/actionList/action/actionDuration

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the length, in school days, of the disciplinary action. Note: decimal places may be used for fractions of school days.

element disciplineIncidentType/offenderList/offender/actionList/action/zeroTolerance

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not this action taken against a student was imposed as a consequence of state or local zero tolerance policies.

element disciplineIncidentType/offenderList/offender/actionList/action/fullYearExpulsion

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not the action involved an expulsion with or without services for a period of one full year (i.e., 365 days).

element disciplineIncidentType/offenderList/offender/actionList/action/shortenedExpulsion

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not the action involved an expulsion with or without services that is shortened to a term of less than one year by the superintendent or chief administrator of a school district.

element disciplineIncidentType/offenderList/offender/actionList/action/policeNotification

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not the offender's action included notification of local law enforcement, regardless of whether official action was taken.

element disciplineIncidentType/offenderList/offender/actionList/action/arrest

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not the offender was arrested.

element disciplineIncidentType/offenderList/offender/actionList/action/alternativeEducation

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not the offender was assigned to an Alternative Education facility.

element disciplineIncidentType/offenderList/offender/weaponTypeList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	weaponType
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

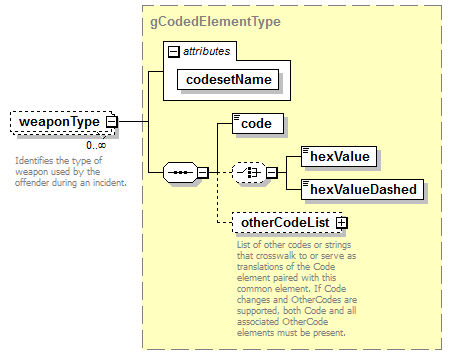

element disciplineIncidentType/offenderList/offender/weaponTypeList/weaponType

diagram
type	gCodedElementType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Identifies the type of weapon used by the offender during an incident.

element disciplineIncidentType/offenderList/offender/secondaryBehaviorCodeList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	secondaryBehaviorCode
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/offenderList/offender/secondaryBehaviorCodeList/secondaryBehaviorCode

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Identifies if offender's incident was related to a specific category.

element disciplineIncidentType/victimList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	victim
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

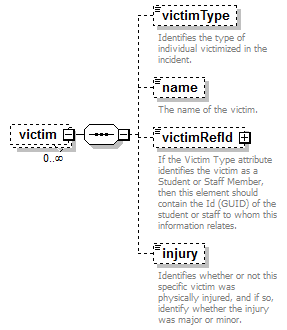

element disciplineIncidentType/victimList/victim

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	victimType name victimRefId injury
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/victimList/victim/victimType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the type of individual victimized in the incident.

element disciplineIncidentType/victimList/victim/name

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The name of the victim.

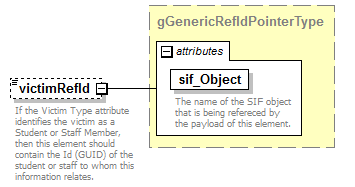

element disciplineIncidentType/victimList/victim/victimRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.
annotation	documentation If the Victim Type attribute identifies the victim as a Student or Staff Member, then this element should contain the Id (GUID) of the student or staff to whom this information relates.

element disciplineIncidentType/victimList/victim/injury

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not this specific victim was physically injured, and if so, identify whether the injury was major or minor.

element disciplineIncidentType/incidentDescription

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A long text description of full details and a report of what occurred.

element disciplineIncidentType/incidentActionList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	incidentAction
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/incidentActionList/incidentAction

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	startDate endDate duration zeroTolerance policeNotification arrest
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element disciplineIncidentType/incidentActionList/incidentAction/startDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The date on which the action begins.

element disciplineIncidentType/incidentActionList/incidentAction/endDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The date through which the action is in effect, inclusive.

element disciplineIncidentType/incidentActionList/incidentAction/duration

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the length, in school days, of the action. Note: decimal places may be used for fractions of school days.

element disciplineIncidentType/incidentActionList/incidentAction/zeroTolerance

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether or not this action was imposed as a consequence of state or local zero tolerance policies.

element disciplineIncidentType/incidentActionList/incidentAction/policeNotification

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether there was notification of local law enforcement, regardless of whether official action was taken.

element disciplineIncidentType/incidentActionList/incidentAction/arrest

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies whether there were any arrests.

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
