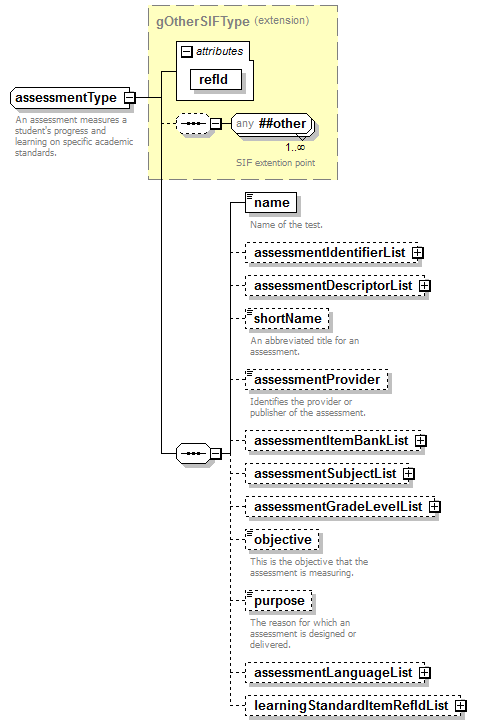

complexType assessmentType

diagram
type	extension of gOtherSIFType
properties	base  gOtherSIFType
children	name assessmentIdentifierList assessmentDescriptorList shortName assessmentProvider assessmentItemBankList assessmentSubjectList assessmentGradeLevelList objective purpose assessmentLanguageList learningStandardItemRefIdList
used by	element  assessment
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment</elementName> <events>no</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation An assessment measures a student's progress and learning on specific academic standards.

element assessmentType/name

diagram
type	xs:normalizedString
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000028</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3028</cedsURL> documentation Name of the test.

element assessmentType/assessmentIdentifierList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentIdentifier
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

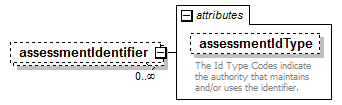

element assessmentType/assessmentIdentifierList/assessmentIdentifier

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation assessmentIdType xs:string          appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000365</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3158</cedsURL> documentation The Id Type Codes indicate the authority that maintains and/or uses the identifier.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute assessmentType/assessmentIdentifierList/assessmentIdentifier/@assessmentIdType

type	xs:string
properties	isRef  0
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000365</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3158</cedsURL> documentation The Id Type Codes indicate the authority that maintains and/or uses the identifier.

element assessmentType/assessmentDescriptorList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentDescriptor
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentType/assessmentDescriptorList/assessmentDescriptor

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId>000029</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3029</cedsURL>

element assessmentType/shortName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar/> <cedsId>000931</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3932</cedsURL> documentation An abbreviated title for an assessment.

element assessmentType/assessmentProvider

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001006</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4009</cedsURL> documentation Identifies the provider or publisher of the assessment.

element assessmentType/assessmentItemBankList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentItemBank
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

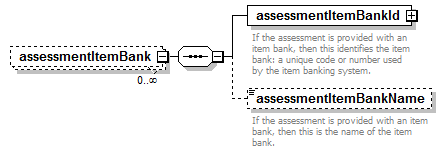

element assessmentType/assessmentItemBankList/assessmentItemBank

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	assessmentItemBankId assessmentItemBankName
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

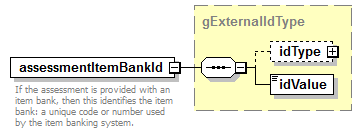

element assessmentType/assessmentItemBankList/assessmentItemBank/assessmentItemBankId

diagram
type	gExternalIdType
properties	isRef  0 content  complex
children	idType idValue
annotation	appinfo <elementName/> <sifChar>M</sifChar> <cedsId/> <cedsURL/> documentation If the assessment is provided with an item bank, then this identifies the item bank: a unique code or number used by the item banking system.

element assessmentType/assessmentItemBankList/assessmentItemBank/assessmentItemBankName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation If the assessment is provided with an item bank, then this is the name of the item bank.

element assessmentType/assessmentSubjectList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentSubject
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

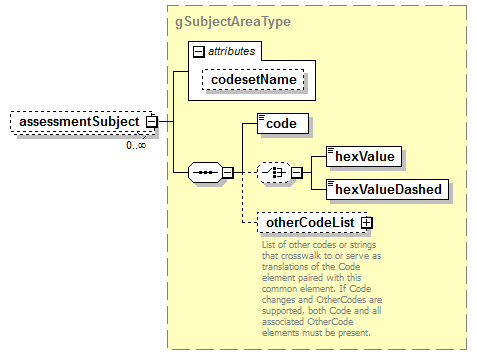

element assessmentType/assessmentSubjectList/assessmentSubject

diagram
type	gSubjectAreaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId>000021</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3021</cedsURL>

element assessmentType/assessmentGradeLevelList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentGradeLevel
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

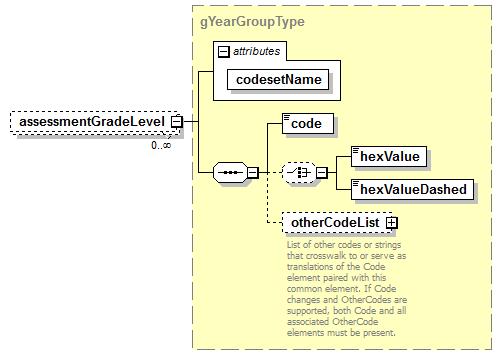

element assessmentType/assessmentGradeLevelList/assessmentGradeLevel

diagram
type	gYearGroupType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentType/objective

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000382</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3373</cedsURL> documentation This is the objective that the assessment is measuring.

element assessmentType/purpose

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000026</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3026</cedsURL> documentation The reason for which an assessment is designed or delivered.

element assessmentType/assessmentLanguageList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentLanguage
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

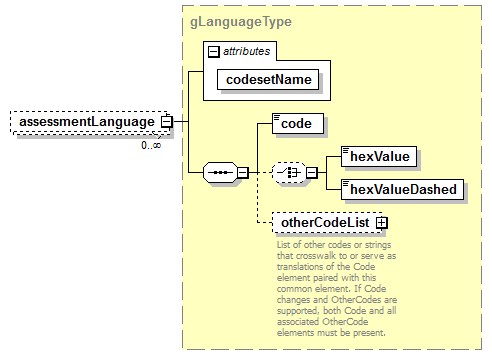

element assessmentType/assessmentLanguageList/assessmentLanguage

diagram
type	gLanguageType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId>000317</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3317</cedsURL>

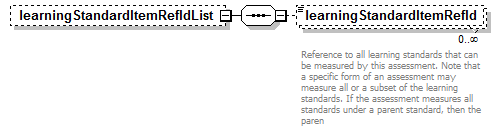

element assessmentType/learningStandardItemRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	learningStandardItemRefId
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentType/learningStandardItemRefIdList/learningStandardItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Reference to all learning standards that can be measured by this assessment. Note that a specific form of an assessment may measure all or a subset of the learning standards. If the assessment measures all standards under a parent standard, then the paren
