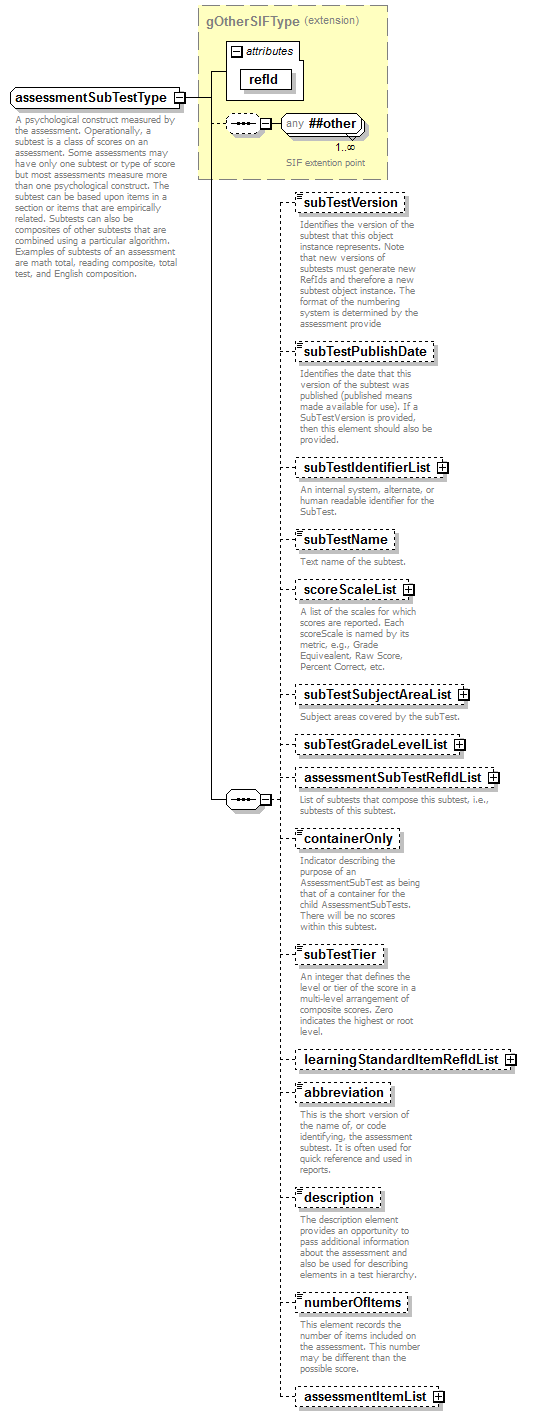

complexType assessmentSubTestType

diagram
type	extension of gOtherSIFType
properties	base  gOtherSIFType
children	subTestVersion subTestPublishDate subTestIdentifierList subTestName scoreScaleList subTestSubjectAreaList subTestGradeLevelList assessmentSubTestRefIdList containerOnly subTestTier learningStandardItemRefIdList abbreviation description numberOfItems assessmentItemList
used by	element  assessmentSubTest
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment Sub Test</elementName> <events>no</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation A psychological construct measured by the assessment. Operationally, a subtest is a class of scores on an assessment. Some assessments may have only one subtest or type of score but most assessments measure more than one psychological construct. The subtest can be based upon items in a section or items that are empirically related. Subtests can also be composites of other subtests that are combined using a particular algorithm. Examples of subtests of an assessment are math total, reading composite, total test, and English composition.

element assessmentSubTestType/subTestVersion

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the version of the subtest that this object instance represents. Note that new versions of subtests must generate new RefIds and therefore a new subtest object instance. The format of the numbering system is determined by the assessment provide

element assessmentSubTestType/subTestPublishDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the date that this version of the subtest was published (published means made available for use). If a SubTestVersion is provided, then this element should also be provided.

element assessmentSubTestType/subTestIdentifierList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subTestIdentifier
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation An internal system, alternate, or human readable identifier for the SubTest.

element assessmentSubTestType/subTestIdentifierList/subTestIdentifier

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentSubTestType/subTestName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Text name of the subtest.

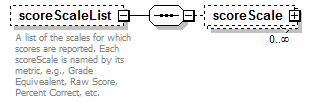

element assessmentSubTestType/scoreScaleList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	scoreScale
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A list of the scales for which scores are reported. Each scoreScale is named by its metric, e.g., Grade Equivealent, Raw Score, Percent Correct, etc.

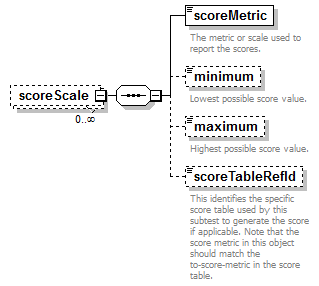

element assessmentSubTestType/scoreScaleList/scoreScale

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	scoreMetric minimum maximum scoreTableRefId
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentSubTestType/scoreScaleList/scoreScale/scoreMetric

diagram
type	xs:token
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The metric or scale used to report the scores.

element assessmentSubTestType/scoreScaleList/scoreScale/minimum

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Lowest possible score value.

element assessmentSubTestType/scoreScaleList/scoreScale/maximum

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Highest possible score value.

element assessmentSubTestType/scoreScaleList/scoreScale/scoreTableRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This identifies the specific score table used by this subtest to generate the score if applicable. Note that the score metric in this object should match the to-score-metric in the score table.

element assessmentSubTestType/subTestSubjectAreaList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subTestSubjectArea
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Subject areas covered by the subTest.

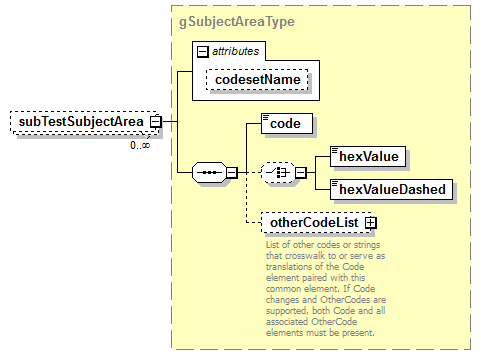

element assessmentSubTestType/subTestSubjectAreaList/subTestSubjectArea

diagram
type	gSubjectAreaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentSubTestType/subTestGradeLevelList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subTestGradeLevel
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

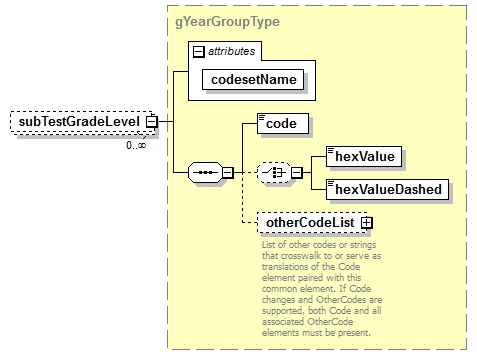

element assessmentSubTestType/subTestGradeLevelList/subTestGradeLevel

diagram
type	gYearGroupType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentSubTestType/assessmentSubTestRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentSubTestRefId
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation List of subtests that compose this subtest, i.e., subtests of this subtest.

element assessmentSubTestType/assessmentSubTestRefIdList/assessmentSubTestRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation A reference to a child AssessmentSubTest by RefId.

element assessmentSubTestType/containerOnly

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Indicator describing the purpose of an AssessmentSubTest as being that of a container for the child AssessmentSubTests. There will be no scores within this subtest.

element assessmentSubTestType/subTestTier

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation An integer that defines the level or tier of the score in a multi-level arrangement of composite scores. Zero indicates the highest or root level.

element assessmentSubTestType/learningStandardItemRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	learningStandardItemRefId
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentSubTestType/learningStandardItemRefIdList/learningStandardItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation A reference to a LearningStandardItem by RefId.

element assessmentSubTestType/abbreviation

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This is the short version of the name of, or code identifying, the assessment subtest. It is often used for quick reference and used in reports.

element assessmentSubTestType/description

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The description element provides an opportunity to pass additional information about the assessment and also be used for describing elements in a test hierarchy.

element assessmentSubTestType/numberOfItems

diagram
type	xs:int
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This element records the number of items included on the assessment. This number may be different than the possible score.

element assessmentSubTestType/assessmentItemList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentItem
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

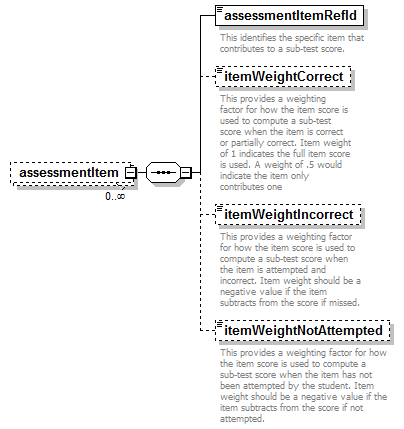

element assessmentSubTestType/assessmentItemList/assessmentItem

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	assessmentItemRefId itemWeightCorrect itemWeightIncorrect itemWeightNotAttempted
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentSubTestType/assessmentItemList/assessmentItem/assessmentItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>M</sifChar> <cedsId/> <cedsURL/> documentation This identifies the specific item that contributes to a sub-test score.

element assessmentSubTestType/assessmentItemList/assessmentItem/itemWeightCorrect

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001010</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4013</cedsURL> documentation This provides a weighting factor for how the item score is used to compute a sub-test score when the item is correct or partially correct. Item weight of 1 indicates the full item score is used. A weight of .5 would indicate the item only contributes one

element assessmentSubTestType/assessmentItemList/assessmentItem/itemWeightIncorrect

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001012</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4014</cedsURL> documentation This provides a weighting factor for how the item score is used to compute a sub-test score when the item is attempted and incorrect. Item weight should be a negative value if the item subtracts from the score if missed.

element assessmentSubTestType/assessmentItemList/assessmentItem/itemWeightNotAttempted

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001013</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4015</cedsURL> documentation This provides a weighting factor for how the item score is used to compute a sub-test score when the item has not been attempted by the student. Item weight should be a negative value if the item subtracts from the score if not attempted.
