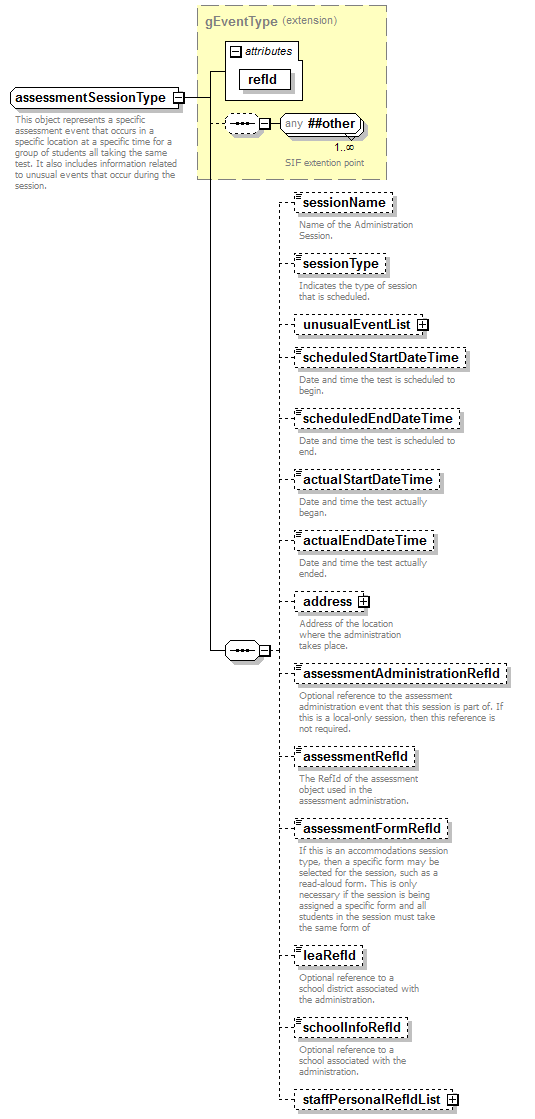

complexType assessmentSessionType

diagram
type	extension of gEventType
properties	base  gEventType
children	sessionName sessionType unusualEventList scheduledStartDateTime scheduledEndDateTime actualStartDateTime actualEndDateTime address assessmentAdministrationRefId assessmentRefId assessmentFormRefId leaRefId schoolInfoRefId staffPersonalRefIdList
used by	element  assessmentSession
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment Session</elementName> <events>no</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation This object represents a specific assessment event that occurs in a specific location at a specific time for a group of students all taking the same test. It also includes information related to unusual events that occur during the session.

element assessmentSessionType/sessionName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of the Administration Session.

element assessmentSessionType/sessionType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Indicates the type of session that is scheduled.

element assessmentSessionType/unusualEventList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	unusualEvent
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

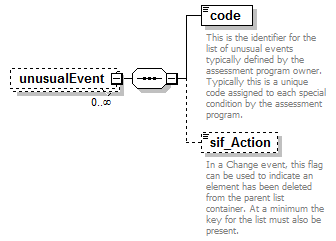

element assessmentSessionType/unusualEventList/unusualEvent

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code sif_Action
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentSessionType/unusualEventList/unusualEvent/code

diagram
type	xs:token
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This is the identifier for the list of unusual events typically defined by the assessment program owner. Typically this is a unique code assigned to each special condition by the assessment program.

element assessmentSessionType/unusualEventList/unusualEvent/sif_Action

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation In a Change event, this flag can be used to indicate an element has been deleted from the parent list container. At a minimum the key for the list must also be present.

element assessmentSessionType/scheduledStartDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date and time the test is scheduled to begin.

element assessmentSessionType/scheduledEndDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date and time the test is scheduled to end.

element assessmentSessionType/actualStartDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date and time the test actually began.

element assessmentSessionType/actualEndDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date and time the test actually ended.

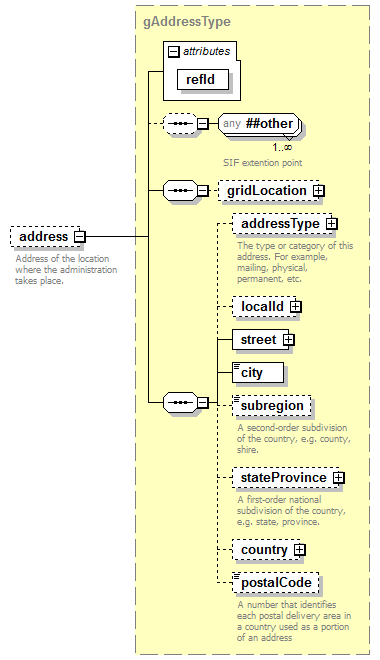

element assessmentSessionType/address

diagram
type	gAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gridLocation addressType localId street city subregion stateProvince country postalCode
used by	element  seaType/addressList
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Address of the location where the administration takes place.

element assessmentSessionType/assessmentAdministrationRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to the assessment administration event that this session is part of. If this is a local-only session, then this reference is not required.

element assessmentSessionType/assessmentRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The RefId of the assessment object used in the assessment administration.

element assessmentSessionType/assessmentFormRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation If this is an accommodations session type, then a specific form may be selected for the session, such as a read-aloud form. This is only necessary if the session is being assigned a specific form and all students in the session must take the same form of

element assessmentSessionType/leaRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to a school district associated with the administration.

element assessmentSessionType/schoolInfoRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to a school associated with the administration.

element assessmentSessionType/staffPersonalRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	staffPersonalRefId

element assessmentSessionType/staffPersonalRefIdList/staffPersonalRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation A StaffPersonal RefId.
