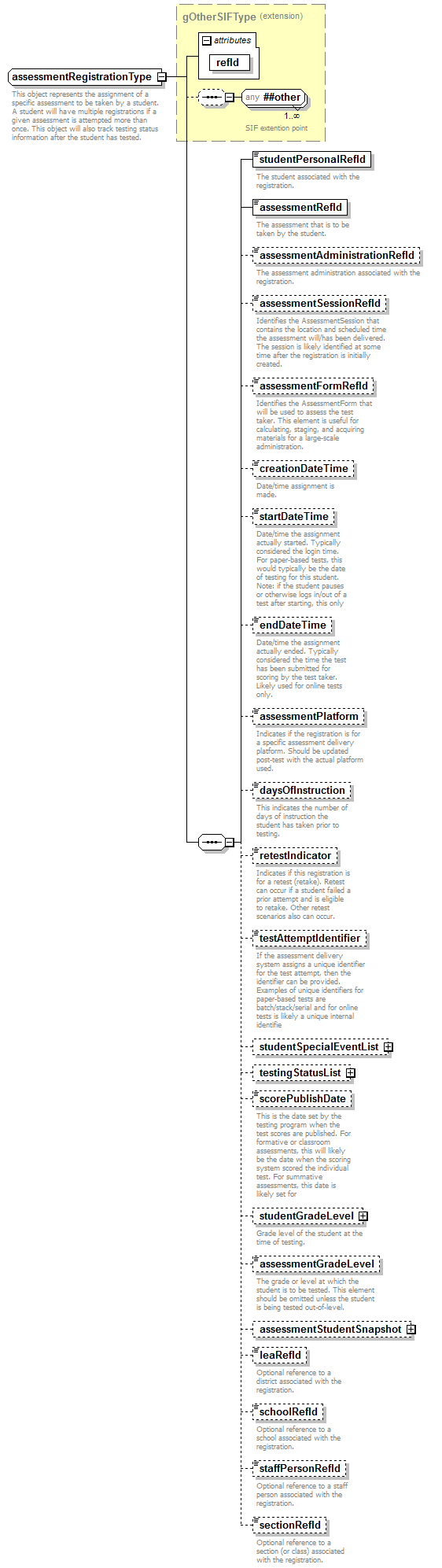

complexType assessmentRegistrationType

diagram
type	extension of gOtherSIFType
properties	base  gOtherSIFType
children	studentPersonalRefId assessmentRefId assessmentAdministrationRefId assessmentSessionRefId assessmentFormRefId creationDateTime startDateTime endDateTime assessmentPlatform daysOfInstruction retestIndicator testAttemptIdentifier studentSpecialEventList testingStatusList scorePublishDate studentGradeLevel assessmentGradeLevel assessmentStudentSnapshot leaRefId schoolRefId staffPersonRefId sectionRefId
used by	element  assessmentRegistration
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment Registration</elementName> <events>yes</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation This object represents the assignment of a specific assessment to be taken by a student. A student will have multiple registrations if a given assessment is attempted more than once. This object will also track testing status information after the student has tested.

element assessmentRegistrationType/studentPersonalRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>M</sifChar> <cedsId/> <cedsURL/> documentation The student associated with the registration.

element assessmentRegistrationType/assessmentRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>M</sifChar> <cedsId/> <cedsURL/> documentation The assessment that is to be taken by the student.

element assessmentRegistrationType/assessmentAdministrationRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The assessment administration associated with the registration.

element assessmentRegistrationType/assessmentSessionRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the AssessmentSession that contains the location and scheduled time the assessment will/has been delivered. The session is likely identified at some time after the registration is initially created.

element assessmentRegistrationType/assessmentFormRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Identifies the AssessmentForm that will be used to assess the test taker. This element is useful for calculating, staging, and acquiring materials for a large-scale administration.

element assessmentRegistrationType/creationDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date/time assignment is made.

element assessmentRegistrationType/startDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date/time the assignment actually started. Typically considered the login time. For paper-based tests, this would typically be the date of testing for this student. Note: if the student pauses or otherwise logs in/out of a test after starting, this only

element assessmentRegistrationType/endDateTime

diagram
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date/time the assignment actually ended. Typically considered the time the test has been submitted for scoring by the test taker. Likely used for online tests only.

element assessmentRegistrationType/assessmentPlatform

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Indicates if the registration is for a specific assessment delivery platform. Should be updated post-test with the actual platform used.

element assessmentRegistrationType/daysOfInstruction

diagram
type	xs:unsignedShort
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This indicates the number of days of instruction the student has taken prior to testing.

element assessmentRegistrationType/retestIndicator

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Indicates if this registration is for a retest (retake). Retest can occur if a student failed a prior attempt and is eligible to retake. Other retest scenarios also can occur.

element assessmentRegistrationType/testAttemptIdentifier

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation If the assessment delivery system assigns a unique identifier for the test attempt, then the identifier can be provided. Examples of unique identifiers for paper-based tests are batch/stack/serial and for online tests is likely a unique internal identifie

element assessmentRegistrationType/studentSpecialEventList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	studentSpecialEvent
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

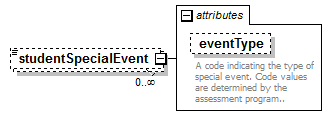

element assessmentRegistrationType/studentSpecialEventList/studentSpecialEvent

diagram
type	extension of xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation eventType xs:token          appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A code indicating the type of special event. Code values are determined by the assessment program..
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute assessmentRegistrationType/studentSpecialEventList/studentSpecialEvent/@eventType

type	xs:token
properties	isRef  0
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A code indicating the type of special event. Code values are determined by the assessment program..

element assessmentRegistrationType/testingStatusList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	testingStatus
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

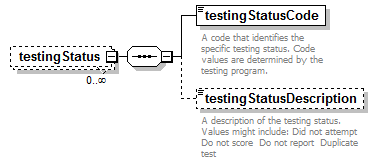

element assessmentRegistrationType/testingStatusList/testingStatus

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	testingStatusCode testingStatusDescription
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/testingStatusList/testingStatus/testingStatusCode

diagram
type	xs:token
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>M</sifChar> <cedsId/> <cedsURL/> documentation A code that identifies the specific testing status. Code values are determined by the testing program.

element assessmentRegistrationType/testingStatusList/testingStatus/testingStatusDescription

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A description of the testing status. Values might include: Did not attempt Do not score  Do not report  Duplicate test

element assessmentRegistrationType/scorePublishDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This is the date set by the testing program when the test scores are published. For formative or classroom assessments, this will likely be the date when the scoring system scored the individual test. For summative assessments, this date is likely set for

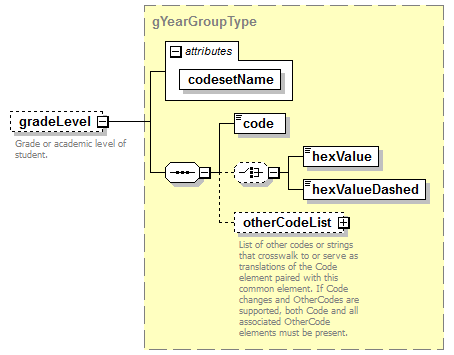

element assessmentRegistrationType/studentGradeLevel

diagram
type	gYearGroupType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Grade level of the student at the time of testing.

element assessmentRegistrationType/assessmentGradeLevel

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The grade or level at which the student is to be tested. This element should be omitted unless the student is being tested out-of-level.

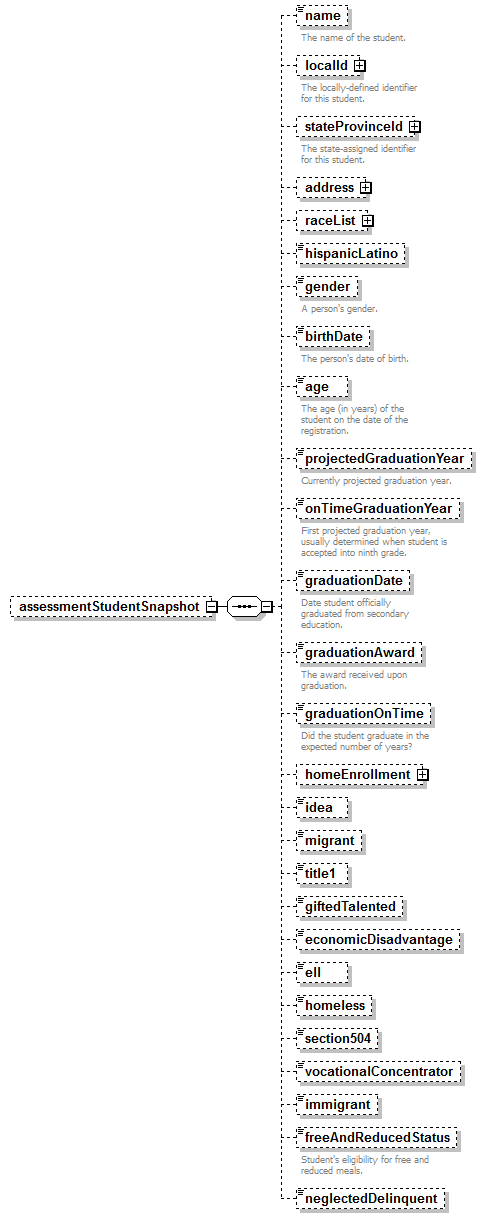

element assessmentRegistrationType/assessmentStudentSnapshot

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name localId stateProvinceId address raceList hispanicLatino gender birthDate age projectedGraduationYear onTimeGraduationYear graduationDate graduationAward graduationOnTime homeEnrollment idea migrant title1 giftedTalented economicDisadvantage ell homeless section504 vocationalConcentrator immigrant freeAndReducedStatus neglectedDelinquent

element assessmentRegistrationType/assessmentStudentSnapshot/name

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The name of the student.

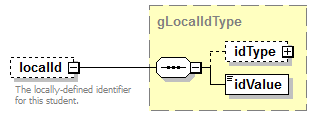

element assessmentRegistrationType/assessmentStudentSnapshot/localId

diagram
type	gLocalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The locally-defined identifier for this student.

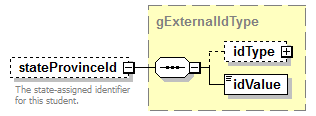

element assessmentRegistrationType/assessmentStudentSnapshot/stateProvinceId

diagram
type	gExternalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The state-assigned identifier for this student.

element assessmentRegistrationType/assessmentStudentSnapshot/address

diagram
type	gAddressType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gridLocation addressType localId street city subregion stateProvince country postalCode
used by	element  seaType/addressList
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required

element assessmentRegistrationType/assessmentStudentSnapshot/raceList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	race
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/raceList/race

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/hispanicLatino

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/gender

diagram
type	gSexusType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  M  enumeration  F  enumeration  U
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A person's gender.

element assessmentRegistrationType/assessmentStudentSnapshot/birthDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The person's date of birth.

element assessmentRegistrationType/assessmentStudentSnapshot/age

diagram
type	xs:unsignedShort
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The age (in years) of the student on the date of the registration.

element assessmentRegistrationType/assessmentStudentSnapshot/projectedGraduationYear

diagram
type	gPartialDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Currently projected graduation year.

element assessmentRegistrationType/assessmentStudentSnapshot/onTimeGraduationYear

diagram
type	gPartialDateType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation First projected graduation year, usually determined when student is accepted into ninth grade.

element assessmentRegistrationType/assessmentStudentSnapshot/graduationDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Date student officially graduated from secondary education.

element assessmentRegistrationType/assessmentStudentSnapshot/graduationAward

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The award received upon graduation.

element assessmentRegistrationType/assessmentStudentSnapshot/graduationOnTime

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Did the student graduate in the expected number of years?

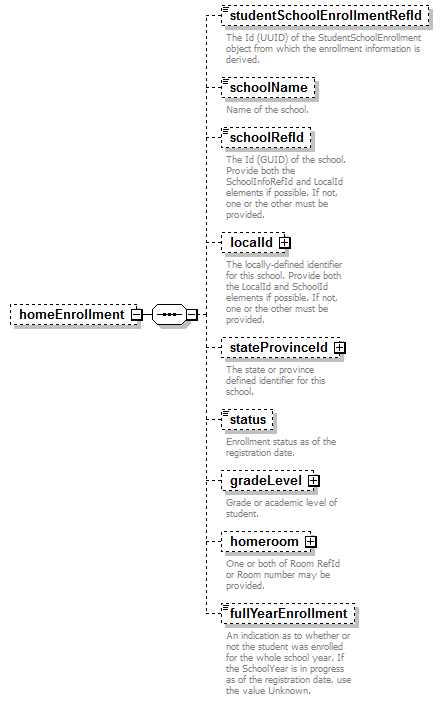

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	studentSchoolEnrollmentRefId schoolName schoolRefId localId stateProvinceId status gradeLevel homeroom fullYearEnrollment

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/studentSchoolEnrollmentRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The Id (UUID) of the StudentSchoolEnrollment object from which the enrollment information is derived.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/schoolName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Name of the school.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/schoolRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The Id (GUID) of the school. Provide both the SchoolInfoRefId and LocalId elements if possible. If not, one or the other must be provided.

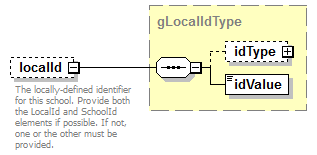

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/localId

diagram
type	gLocalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The locally-defined identifier for this school. Provide both the LocalId and SchoolId elements if possible. If not, one or the other must be provided.

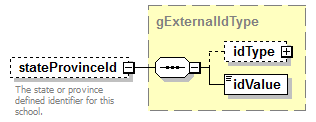

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/stateProvinceId

diagram
type	gExternalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The state or province defined identifier for this school.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/status

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Enrollment status as of the registration date.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/gradeLevel

diagram
type	gYearGroupType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Grade or academic level of student.

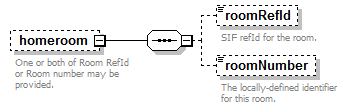

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/homeroom

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	roomRefId roomNumber
annotation	documentation One or both of Room RefId or Room number may be provided.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/homeroom/roomRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation SIF refId for the room.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/homeroom/roomNumber

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The locally-defined identifier for this room.

element assessmentRegistrationType/assessmentStudentSnapshot/homeEnrollment/fullYearEnrollment

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation An indication as to whether or not the student was enrolled for the whole school year. If the SchoolYear is in progress as of the registration date, use the value Unknown.

element assessmentRegistrationType/assessmentStudentSnapshot/idea

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/migrant

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/title1

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/giftedTalented

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/economicDisadvantage

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/ell

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/homeless

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/section504

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/vocationalConcentrator

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/immigrant

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/assessmentStudentSnapshot/freeAndReducedStatus

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Student's eligibility for free and reduced meals.

element assessmentRegistrationType/assessmentStudentSnapshot/neglectedDelinquent

diagram
type	gYesNoUnknownType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  No  enumeration  Unknown  enumeration  Yes
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentRegistrationType/leaRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to a district associated with the registration.

element assessmentRegistrationType/schoolRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to a school associated with the registration.

element assessmentRegistrationType/staffPersonRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to a staff person associated with the registration.

element assessmentRegistrationType/sectionRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Optional reference to a section (or class) associated with the registration.

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
