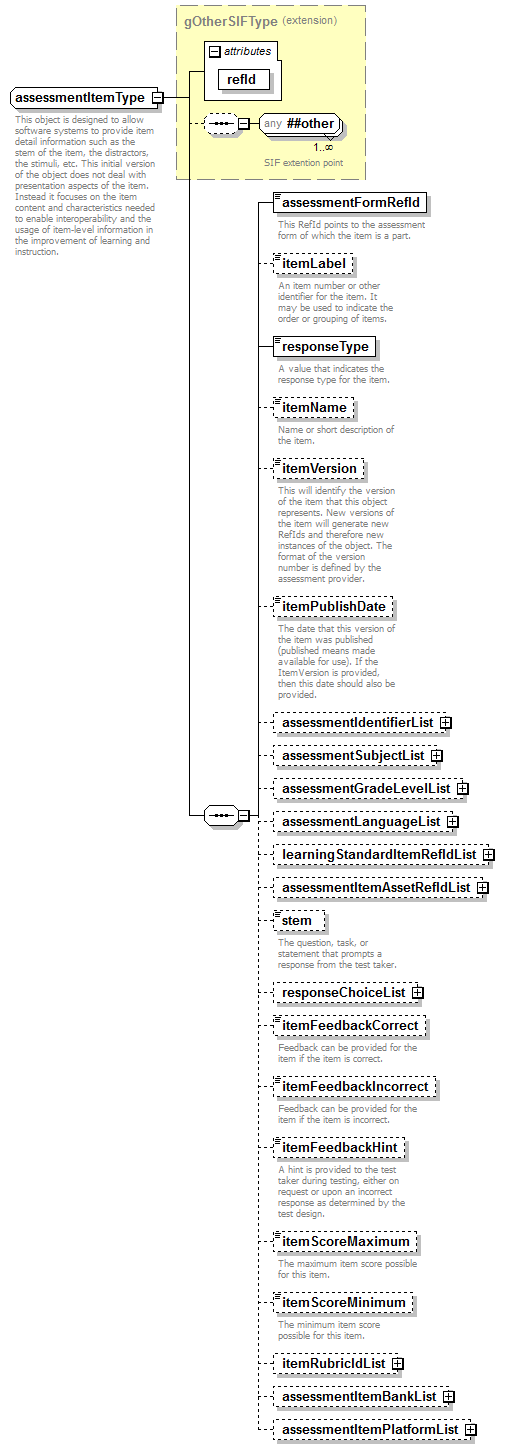

complexType assessmentItemType

diagram
type	extension of gOtherSIFType
properties	base  gOtherSIFType
children	assessmentFormRefId itemLabel responseType itemName itemVersion itemPublishDate assessmentIdentifierList assessmentSubjectList assessmentGradeLevelList assessmentLanguageList learningStandardItemRefIdList assessmentItemAssetRefIdList stem responseChoiceList itemFeedbackCorrect itemFeedbackIncorrect itemFeedbackHint itemScoreMaximum itemScoreMinimum itemRubricIdList assessmentItemBankList assessmentItemPlatformList
used by	element  assessmentItem
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment Item</elementName> <events>no</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation This object is designed to allow software systems to provide item detail information such as the stem of the item, the distractors, the stimuli, etc. This initial version of the object does not deal with presentation aspects of the item. Instead it focuses on the item content and characteristics needed to enable interoperability and the usage of item-level information in the improvement of learning and instruction.

element assessmentItemType/assessmentFormRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	documentation This RefId points to the assessment form of which the item is a part.

element assessmentItemType/itemLabel

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation An item number or other identifier for the item. It may be used to indicate the order or grouping of items.

element assessmentItemType/responseType

diagram
type	xs:token
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A value that indicates the response type for the item.

element assessmentItemType/itemName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000368</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3367</cedsURL> documentation Name or short description of the item.

element assessmentItemType/itemVersion

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation This will identify the version of the item that this object represents. New versions of the item will generate new RefIds and therefore new instances of the object. The format of the version number is defined by the assessment provider.

element assessmentItemType/itemPublishDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The date that this version of the item was published (published means made available for use). If the ItemVersion is provided, then this date should also be provided.

element assessmentItemType/assessmentIdentifierList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentIdentifier
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

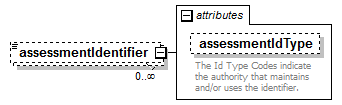

element assessmentItemType/assessmentIdentifierList/assessmentIdentifier

diagram
type	extension of xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation assessmentIdType xs:token          appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The Id Type Codes indicate the authority that maintains and/or uses the identifier.
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute assessmentItemType/assessmentIdentifierList/assessmentIdentifier/@assessmentIdType

type	xs:token
properties	isRef  0
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The Id Type Codes indicate the authority that maintains and/or uses the identifier.

element assessmentItemType/assessmentSubjectList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentSubject
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

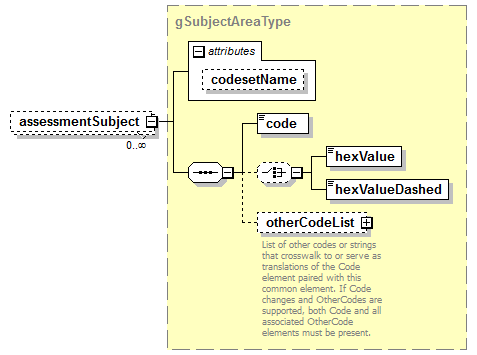

element assessmentItemType/assessmentSubjectList/assessmentSubject

diagram
type	gSubjectAreaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/assessmentGradeLevelList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentGradeLevel
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

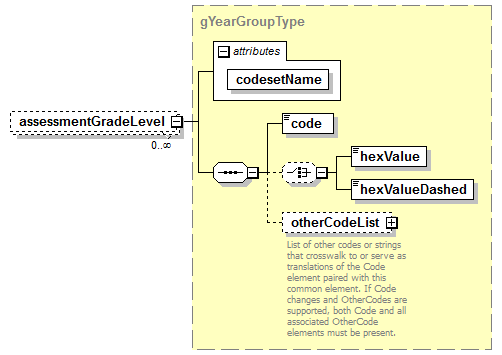

element assessmentItemType/assessmentGradeLevelList/assessmentGradeLevel

diagram
type	gYearGroupType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/assessmentLanguageList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentLanguage
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

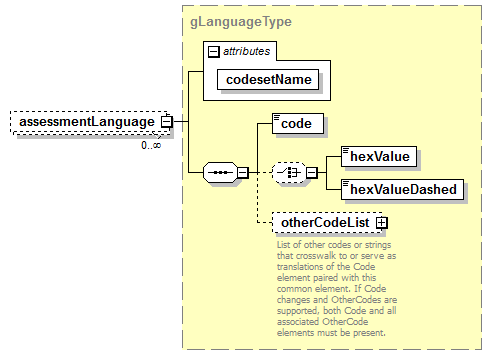

element assessmentItemType/assessmentLanguageList/assessmentLanguage

diagram
type	gLanguageType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/learningStandardItemRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	learningStandardItemRefId
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/learningStandardItemRefIdList/learningStandardItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/assessmentItemAssetRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentItemAssetRefId
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/assessmentItemAssetRefIdList/assessmentItemAssetRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation Reference to an asset used by this item.

element assessmentItemType/stem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The question, task, or statement that prompts a response from the test taker.

element assessmentItemType/responseChoiceList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	responseChoice
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

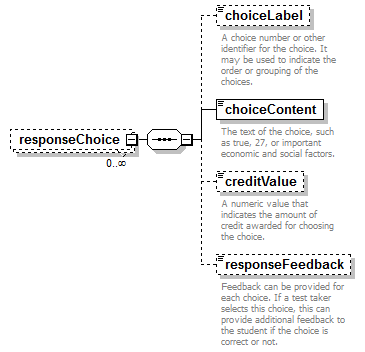

element assessmentItemType/responseChoiceList/responseChoice

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	choiceLabel choiceContent creditValue responseFeedback
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/responseChoiceList/responseChoice/choiceLabel

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A choice number or other identifier for the choice. It may be used to indicate the order or grouping of the choices.

element assessmentItemType/responseChoiceList/responseChoice/choiceContent

diagram
type	xs:string
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The text of the choice, such as true, 27, or important economic and social factors.

element assessmentItemType/responseChoiceList/responseChoice/creditValue

diagram
type	xs:decimal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A numeric value that indicates the amount of credit awarded for choosing the choice.

element assessmentItemType/responseChoiceList/responseChoice/responseFeedback

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Feedback can be provided for each choice. If a test taker selects this choice, this can provide additional feedback to the student if the choice is correct or not.

element assessmentItemType/itemFeedbackCorrect

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Feedback can be provided for the item if the item is correct.

element assessmentItemType/itemFeedbackIncorrect

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Feedback can be provided for the item if the item is incorrect.

element assessmentItemType/itemFeedbackHint

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation A hint is provided to the test taker during testing, either on request or upon an incorrect response as determined by the test design.

element assessmentItemType/itemScoreMaximum

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The maximum item score possible for this item.

element assessmentItemType/itemScoreMinimum

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The minimum item score possible for this item.

element assessmentItemType/itemRubricIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itemRubricId
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/itemRubricIdList/itemRubricId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation If this item is scored using a rubric, this will identify the specific rubric used.

element assessmentItemType/assessmentItemBankList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentItemBank
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

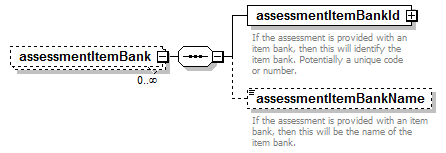

element assessmentItemType/assessmentItemBankList/assessmentItemBank

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	assessmentItemBankId assessmentItemBankName
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

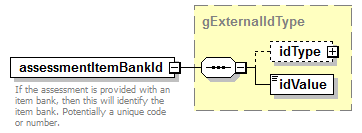

element assessmentItemType/assessmentItemBankList/assessmentItemBank/assessmentItemBankId

diagram
type	gExternalIdType
properties	isRef  0 content  complex
children	idType idValue
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation If the assessment is provided with an item bank, then this will identify the item bank. Potentially a unique code or number.

element assessmentItemType/assessmentItemBankList/assessmentItemBank/assessmentItemBankName

diagram
type	xs:normalizedString
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation If the assessment is provided with an item bank, then this will be the name of the item bank.

element assessmentItemType/assessmentItemPlatformList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentItemPlatform
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentItemType/assessmentItemPlatformList/assessmentItemPlatform

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation The specific delivery platform that this item will support.
