complexType assessmentItemAssociationType

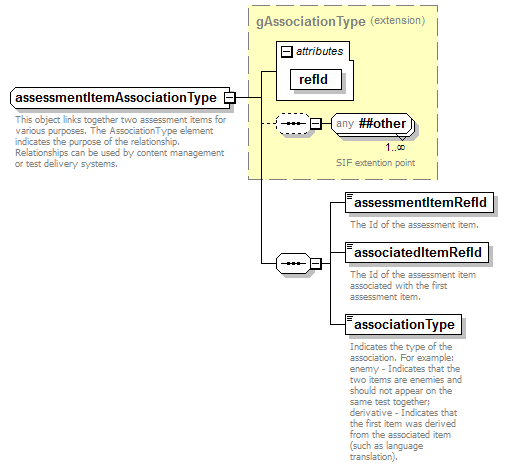

diagram
type	extension of gAssociationType
properties	base  gAssociationType
children	assessmentItemRefId associatedItemRefId associationType
used by	element  assessmentItemAssociation
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment Item Association</elementName> <events>no</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation This object links together two assessment items for various purposes. The AssociationType element indicates the purpose of the relationship. Relationships can be used by content management or test delivery systems.

element assessmentItemAssociationType/assessmentItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	documentation The Id of the assessment item.

element assessmentItemAssociationType/associatedItemRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	documentation The Id of the assessment item associated with the first assessment item.

element assessmentItemAssociationType/associationType

diagram
type	xs:token
properties	isRef  0 content  simple
annotation	documentation Indicates the type of the association. For example: enemy - Indicates that the two items are enemies and should not appear on the same test together; derivative - Indicates that the first item was derived from the associated item (such as language translation).
