complexType gLEAType

diagram
type	extension of gEducationOrganizationType
properties	base  gEducationOrganizationType
children	localId externalIdList leaName leaURL educationAgencyType leaContactList phoneNumberList emailList yearGroupList operationalStatus electoralDistrict
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation This object contains information about a school district, region, or other Local, State or Jurisdiction Educational Authority.

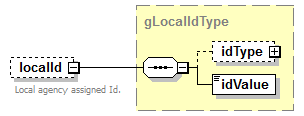

element gLEAType/localId

diagram
type	gLocalIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	idType idValue
annotation	documentation Local agency assigned Id.

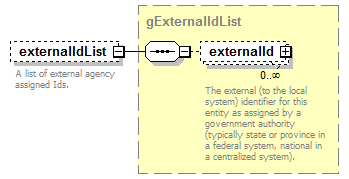

element gLEAType/externalIdList

diagram
type	gExternalIdList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	externalId
annotation	documentation A list of external agency assigned Ids.

element gLEAType/leaName

diagram
type	xs:token
properties	isRef  0 content  simple

element gLEAType/leaURL

diagram
type	xs:anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gLEAType/educationAgencyType

diagram
type	gLeaTypeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element gLEAType/leaContactList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	leaContact
annotation	documentation A list of contacts for the LEA

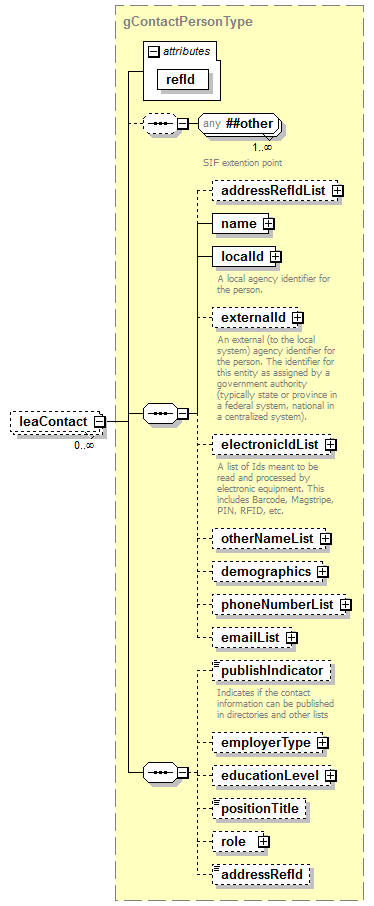

element gLEAType/leaContactList/leaContact

diagram
type	gContactPersonType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	addressRefIdList name localId externalId electronicIdList otherNameList demographics phoneNumberList emailList publishIndicator employerType educationLevel positionTitle role addressRefId
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required

element gLEAType/phoneNumberList

diagram
type	gPhoneNumberList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumber

element gLEAType/emailList

diagram
type	gEmailList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	email

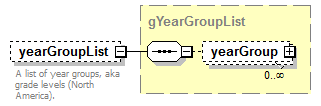

element gLEAType/yearGroupList

diagram
type	gYearGroupList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yearGroup
annotation	documentation A list of year groups, aka grade levels (North America).

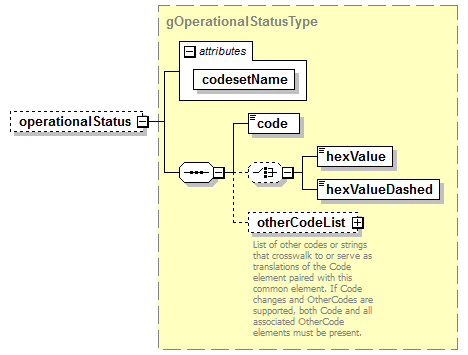

element gLEAType/operationalStatus

diagram
type	gOperationalStatusType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required

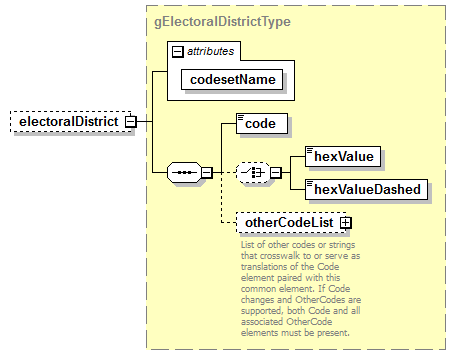

element gLEAType/electoralDistrict

diagram
type	gElectoralDistrictType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
