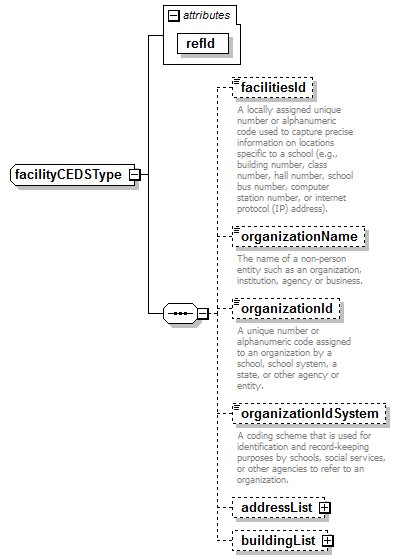

complexType facilityCEDSType

diagram
children	facilitiesId organizationName organizationId organizationIdSystem addressList buildingList
used by	element  facilityCEDS
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName/> <events/> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/>

attribute facilityCEDSType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element facilityCEDSType/facilitiesId

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000504</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3495</cedsURL> documentation A locally assigned unique number or alphanumeric code used to capture precise information on locations specific to a school (e.g., building number, class number, hall number, school bus number, computer station number, or internet protocol (IP) address).

element facilityCEDSType/organizationName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000204</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3204</cedsURL> documentation The name of a non-person entity such as an organization, institution, agency or business.

element facilityCEDSType/organizationId

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000826</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3825</cedsURL> documentation A unique number or alphanumeric code assigned to an organization by a school, school system, a state, or other agency or entity.

element facilityCEDSType/organizationIdSystem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000827</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3827</cedsURL> documentation A coding scheme that is used for identification and record-keeping purposes by schools, social services, or other agencies to refer to an organization.

element facilityCEDSType/addressList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	address

element facilityCEDSType/addressList/address

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	street city stateProvince postalCode county
attributes	Name   Type   Use   Default   Fixed   annotation addressType xs:string          appinfo <sifChar>O</sifChar> <cedsId>001066</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3644</cedsURL> documentation The type of address listed for an organization.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute facilityCEDSType/addressList/address/@addressType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>001066</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3644</cedsURL> documentation The type of address listed for an organization.

element facilityCEDSType/addressList/address/street

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	line1 apartmentNumber

element facilityCEDSType/addressList/address/street/line1

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000269</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3269</cedsURL> documentation The street number and street name or post office box number of an address.

element facilityCEDSType/addressList/address/street/apartmentNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000019</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3019</cedsURL> documentation The apartment, room, or suite number of an address.

element facilityCEDSType/addressList/address/city

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000040</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3040</cedsURL> documentation The name of the city in which an address is located.

element facilityCEDSType/addressList/address/stateProvince

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000267</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3267</cedsURL> documentation The abbreviation for the state (within the United States) or outlying area in which an address is located.

element facilityCEDSType/addressList/address/postalCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000214</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3214</cedsURL> documentation A number that identifies each postal delivery area in the United States used as a portion of an address.

element facilityCEDSType/addressList/address/county

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000190</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3190</cedsURL> documentation The name of the county, parish, borough, or comparable unit (within a state) in which an address is located.

element facilityCEDSType/buildingList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	building

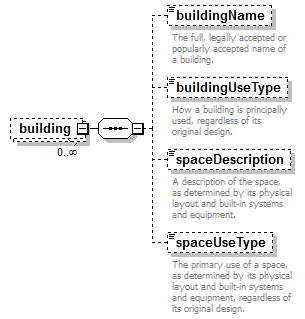

element facilityCEDSType/buildingList/building

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	buildingName buildingUseType spaceDescription spaceUseType
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element facilityCEDSType/buildingList/building/buildingName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001205</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4172</cedsURL> documentation The full, legally accepted or popularly accepted name of a building.

element facilityCEDSType/buildingList/building/buildingUseType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001206</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4173</cedsURL> documentation How a building is principally used, regardless of its original design.

element facilityCEDSType/buildingList/building/spaceDescription

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001207</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4174</cedsURL> documentation A description of the space, as determined by its physical layout and built-in systems and equipment.

element facilityCEDSType/buildingList/building/spaceUseType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001208</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4175</cedsURL> documentation The primary use of a space, as determined by its physical layout and built-in systems and equipment, regardless of its original design.
