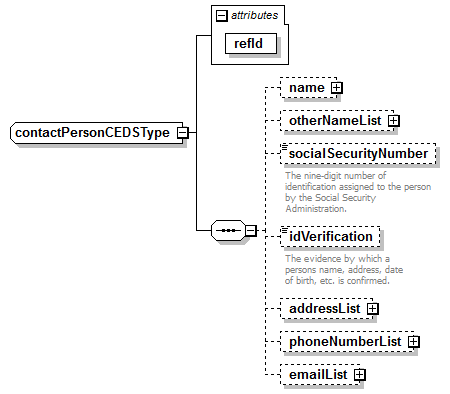

complexType contactPersonCEDSType

diagram
children	name otherNameList socialSecurityNumber idVerification addressList phoneNumberList emailList
used by	element  contactPersonCEDS
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName/> <events/> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/>

attribute contactPersonCEDSType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

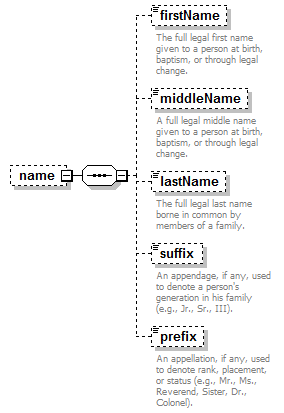

element contactPersonCEDSType/name

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	firstName middleName lastName suffix prefix

element contactPersonCEDSType/name/firstName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000115</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3115</cedsURL> documentation The full legal first name given to a person at birth, baptism, or through legal change.

element contactPersonCEDSType/name/middleName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000184</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3184</cedsURL> documentation A full legal middle name given to a person at birth, baptism, or through legal change.

element contactPersonCEDSType/name/lastName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000172</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3172</cedsURL> documentation The full legal last name borne in common by members of a family.

element contactPersonCEDSType/name/suffix

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000121</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3121</cedsURL> documentation An appendage, if any, used to denote a person's generation in his family (e.g., Jr., Sr., III).

element contactPersonCEDSType/name/prefix

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000212</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3212</cedsURL> documentation An appellation, if any, used to denote rank, placement, or status (e.g., Mr., Ms., Reverend, Sister, Dr., Colonel).

element contactPersonCEDSType/otherNameList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	otherName

element contactPersonCEDSType/otherNameList/otherName

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation otherotherNameType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000634</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3627</cedsURL> documentation The types of previous, alternate or other names for a person.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute contactPersonCEDSType/otherNameList/otherName/@otherotherNameType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000634</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3627</cedsURL> documentation The types of previous, alternate or other names for a person.

element contactPersonCEDSType/socialSecurityNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000259</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3259</cedsURL> documentation The nine-digit number of identification assigned to the person by the Social Security Administration.

element contactPersonCEDSType/idVerification

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000618</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3611</cedsURL> documentation The evidence by which a persons name, address, date of birth, etc. is confirmed.

element contactPersonCEDSType/addressList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	address

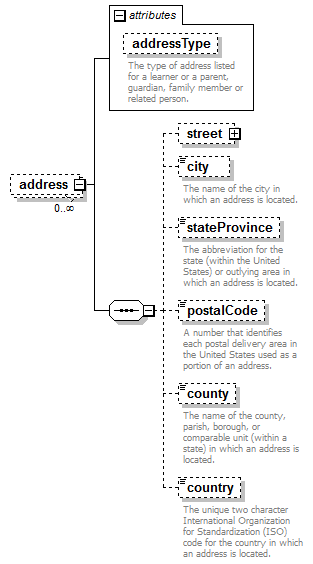

element contactPersonCEDSType/addressList/address

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	street city stateProvince postalCode county country
attributes	Name   Type   Use   Default   Fixed   annotation addressType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000010</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3358</cedsURL> documentation The type of address listed for a learner or a parent, guardian, family member or related person.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute contactPersonCEDSType/addressList/address/@addressType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000010</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3358</cedsURL> documentation The type of address listed for a learner or a parent, guardian, family member or related person.

element contactPersonCEDSType/addressList/address/street

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	line1 apartmentNumber

element contactPersonCEDSType/addressList/address/street/line1

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000269</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3269</cedsURL> documentation The street number and street name or post office box number of an address.

element contactPersonCEDSType/addressList/address/street/apartmentNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000019</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3019</cedsURL> documentation The apartment, room, or suite number of an address.

element contactPersonCEDSType/addressList/address/city

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000040</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3040</cedsURL> documentation The name of the city in which an address is located.

element contactPersonCEDSType/addressList/address/stateProvince

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000267</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3267</cedsURL> documentation The abbreviation for the state (within the United States) or outlying area in which an address is located.

element contactPersonCEDSType/addressList/address/postalCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000214</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3214</cedsURL> documentation A number that identifies each postal delivery area in the United States used as a portion of an address.

element contactPersonCEDSType/addressList/address/county

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000190</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3190</cedsURL> documentation The name of the county, parish, borough, or comparable unit (within a state) in which an address is located.

element contactPersonCEDSType/addressList/address/country

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000050</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3050</cedsURL> documentation The unique two character International Organization for Standardization (ISO) code for the country in which an address is located.

element contactPersonCEDSType/phoneNumberList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumber

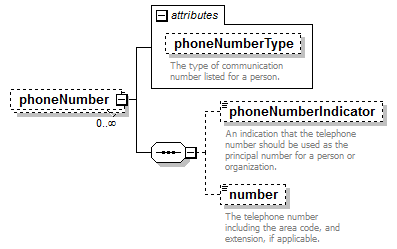

element contactPersonCEDSType/phoneNumberList/phoneNumber

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	phoneNumberIndicator number
attributes	Name   Type   Use   Default   Fixed   annotation phoneNumberType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3280</cedsURL> documentation The type of communication number listed for a person.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute contactPersonCEDSType/phoneNumberList/phoneNumber/@phoneNumberType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3280</cedsURL> documentation The type of communication number listed for a person.

element contactPersonCEDSType/phoneNumberList/phoneNumber/phoneNumberIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000219</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3219</cedsURL> documentation An indication that the telephone number should be used as the principal number for a person or organization.

element contactPersonCEDSType/phoneNumberList/phoneNumber/number

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000279</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3279</cedsURL> documentation The telephone number including the area code, and extension, if applicable.

element contactPersonCEDSType/emailList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	email

element contactPersonCEDSType/emailList/email

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation emailType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000089</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3089</cedsURL> documentation The type of electronic mail (e-mail) address listed for a person or organization.
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

attribute contactPersonCEDSType/emailList/email/@emailType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000089</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3089</cedsURL> documentation The type of electronic mail (e-mail) address listed for a person or organization.
