complexType achievementCEDSType

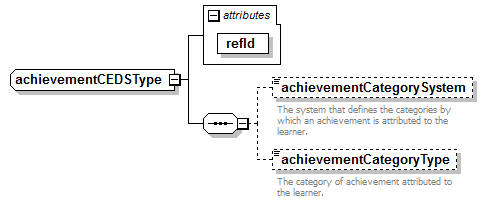

diagram
children	achievementCategorySystem achievementCategoryType
used by	element  achievementCEDS
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName/> <events/> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/>

attribute achievementCEDSType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element achievementCEDSType/achievementCategorySystem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001245</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4211</cedsURL> documentation The system that defines the categories by which an achievement is attributed to the learner.

element achievementCEDSType/achievementCategoryType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000892</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3892</cedsURL> documentation The category of achievement attributed to the learner.
