6.3 SIF UK

6.3.1 AssessmentLearnerSet

This object describes learners assigned to take an assessment or component grouping (can represent a markbook, exam entry, or an cohort objective).

SIF_Events are reported for this object.

AssessmentLearnerSet
Figure 6.3.1-1: AssessmentLearnerSet AssessmentLearnerSet RefId AssessmentResultComponentGroupRefId CreationDateTime LocalId LearnerList LearnerPersonalRefId SchoolGroupRefId WorkforcePersonalRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentLearnerSet

This object describes learners assigned to take an assessment or component grouping (can represent a markbook, exam entry, or an cohort objective).



@
key
RefIdM

The ID (GUID) that uniquely identifies an instance of this object.


RefIdType
@AssessmentResultComponentGroupRefIdM

The assessment result component group (test or assessment) associated with the set of listed learners.


IdRefType
 CreationDateTimeM

Date/time assignment is created.


xs:dateTime
 LocalIdO

Value supplied by publishing vendor/supplier.


xs:normalizedString
 LearnerListC

A list of learners who are to take the test.

Required when SchoolGroupRefId is not supplied.


List
 LearnerList/LearnerPersonalRefId

MR

The ID (GUID) of a learner assigned to take an assessment.


IdRefType
 SchoolGroupRefIdC

Optional reference to the class group(s) to which this will be/are drawn.

Note that this is required when LearnerList is not supplied.


IdRefType
 WorkforcePersonalRefIdO

The ID (GUID) that uniquely identifies the teacher or staff member who created the learner set.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.1-1: AssessmentLearnerSet
<AssessmentLearnerSet RefId="AE98AE59A2841743117D9192C326B873" AssessmentResultComponentGroupRefId="8456D39051CC755293A4A4763088F3D3"> <CreationDateTime>2007-02-04T15:30:05</CreationDateTime> <LocalId>21</LocalId> <LearnerList> <LearnerPersonalRefId>8456D39051CC755293A4A4763088F3D1</LearnerPersonalRefId> <LearnerPersonalRefId>8456D39051CC755293A5A4763088F3D2</LearnerPersonalRefId> <LearnerPersonalRefId>8456D39051CC755293A6A4763088F3D3</LearnerPersonalRefId> <LearnerPersonalRefId>8456D39051CC755293A7A4763088F3D4</LearnerPersonalRefId> <LearnerPersonalRefId>8456D39051CC755293A8A4763088F3D5</LearnerPersonalRefId> </LearnerList> <WorkforcePersonalRefId>AE98AE59A2841743117D9192C326B878</WorkforcePersonalRefId> </AssessmentLearnerSet>
Example 6.3.1-1: AssessmentLearnerSet

6.3.2 AssessmentResponseComponent

This object describes a single component of the assessment or test paper/quiz taken by a learner. A response component has one or more responses.

SIF_Events are not reported for this object.

AssessmentResponseComponent
Figure 6.3.2-1: AssessmentResponseComponent AssessmentResponseComponent RefId Name LocalId SupplierName Description YearList Year SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentResponseComponent

This object describes a single component of the assessment or test paper/quiz taken by a learner. A response component has one or more responses.



@
key
RefIdM

The GUID that uniquely identifies an instance of this object.


RefIdType
 NameM

The identifier used within the publishing application.


xs:normalizedString
 LocalIdO

Optional reference to the school associated with the administration.


xs:normalizedString
 SupplierNameO

The supplier/originator/designer/owner of the described component.


xs:normalizedString
 DescriptionM

Longer text describing features of the component.


xs:normalizedString
 YearListO

A list of specific years in which this component is applicable. By convention, if a list is not supplied then this component is assumed to be always available.


List
 YearList/YearMR

A year with which the component grouping is applicable (by convention this is the end year of an academic year eg: 2007/8 resolves to 2008).


xs:normalizedString
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.2-1: AssessmentResponseComponent
<AssessmentResponseComponent RefId="876602EF432763EB81928376498038E3"> <Name>Maths 4C</Name> <LocalId>MAT4C</LocalId> <SupplierName>ABC Assessments</SupplierName> <Description>Maths Level 4 Section C</Description> <YearList> <Year>2007</Year> <Year>2008</Year> </YearList> </AssessmentResponseComponent>
Example 6.3.2-1: AssessmentResponseComponent

6.3.3 AssessmentResponseComponentGroup

High level container describing components of the actual assessment or test paper/quiz taken by the learner. A response component group contains one or more components.

SIF_Events are not reported for this object.

AssessmentResponseComponentGroup
Figure 6.3.3-1: AssessmentResponseComponentGroup AssessmentResponseComponentGroup RefId AssessmentSessionRefId Name LocalId SupplierName ComponentList AssessmentResponseComponentRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentResponseComponentGroup

High level container describing components of the actual assessment or test paper/quiz taken by the learner. A response component group contains one or more components.



@
key
RefIdM

The ID (GUID) that uniquely identifies an instance of this object.


RefIdType
@AssessmentSessionRefIdM

The ID (GUID) of the assessment session in which the responses were collected.


IdRefType
 NameM

Name of the assessment/test/taken.


xs:normalizedString
 LocalIdO

The identifier used for this entity within the publishing application.


xs:normalizedString
 SupplierNameO

The supplier/originator/designer/owner of the described component grouping.


xs:normalizedString
 ComponentListM

A list of the components contained within this component group.


List
 ComponentList/AssessmentResponseComponentRefId

MR

The SIF identifier for an assessment response component.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.3-1: AssessmentResponseComponentGroup
<AssessmentResponseComponentGroup RefId="87302A8E7492310B8CC5636A321F934E" AssessmentSessionRefId="559023AF3BC83210987477108EFA438C"> <Name>Maths Level 4</Name> <LocalId>MAT4</LocalId> <SupplierName>ABC Assessments</SupplierName> <ComponentList> <AssessmentResponseComponentRefId>73920A9834E8DF216526690AE58F3219</AssessmentResponseComponentRefId> <AssessmentResponseComponentRefId>829763D0934A98120AB87459381AB064</AssessmentResponseComponentRefId> <AssessmentResponseComponentRefId>87389EE348A23416589320A7DE456104</AssessmentResponseComponentRefId> </ComponentList> </AssessmentResponseComponentGroup>
Example 6.3.3-1: AssessmentREsponseComponentGroup

6.3.4 AssessmentResultComponent

A psychological construct measured by the assessment. Operationally, an assessment component or subtest is a class of scores within an assessment that might collectively represent a column within a mark book. Some assessments may consist of only one component, aspect or subtest although it is more common for assessments to have several.

Similar to AssessmentSubTest in US model.

SIF_Events are reported for this object.

AssessmentResultComponent
Figure 6.3.4-1: AssessmentResultComponent AssessmentResultComponent RefId Name LocalId ShortDescription Description YearList Year AssessmentSubjectList Subject StageList Stage AssessmentResultGradeSetRefId MarkSetList MarkSet StartDate EndDate MinValue MaxValue ComponentType ResultQualifier AssessmentMethod SupplierName SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentResultComponent

A psychological construct measured by the assessment. Operationally, an assessment component or subtest is a class of scores within an assessment that might collectively represent a column within a mark book. Some assessments may consist of only one component, aspect or subtest although it is more common for assessments to have several.

Similar to AssessmentSubTest in US model.



@
key
RefIdMThe ID (GUID) of this aspect or subtest. RefIdType
 NameM

The name used to identify this component or aspect.


xs:normalizedString
 LocalIdO

The identifier used within the publishing application.


xs:normalizedString
 ShortDescriptionM

Shorter description used for column headers in marksheets, etc.


xs:normalizedString
 DescriptionM

Longer text describing features of the component.


xs:normalizedString
 YearListO

A list of specific years in which this component is applicable. By convention, if a list is not supplied then this component is assumed to be always available.


List
 YearList/YearMR

A year with which the component grouping is applicable (by convention this is the end year of an academic year eg: 2007/8 resolves to 2008).


xs:normalizedString
 AssessmentSubjectListO

A list of subject areas associated with this assessment component or aspect.


List
 AssessmentSubjectList/Subject

MR

A subject area associated with this assessment component or aspect.


UKAssessmentSubjectType
 StageListO

List of the stages that this component can be used to assess.


List
 StageList/StageMR

The assessed stage (this may well be a Keystage List, but there is no reason why it couldn’t be used for other concepts such as NcYear applicability, Level Exam Level GCSE, A-Level etc.).


UKAssessmentStageType
 AssessmentResultGradeSetRefIdC

The gradeset associated with the component or aspect.

Required if ComponentType is set to Grade.


IdRefType
 MarkSetListC

Required if ComponentType is Mark.


List
 MarkSetList/MarkSetMR

Defines a mark range.



 MarkSetList/MarkSet/StartDate

O

Start date of the range validity - ranges should not overlap. If not supplied then assumed to have always been valid in the past.


xs:date
 MarkSetList/MarkSet/EndDate

O

End date of the range validity - ranges should not overlap. If not supplied then assumed to always will be valid in the future.


xs:date
 MarkSetList/MarkSet/MinValue

M

The minimum value in the range of marks.


xs:decimal
 MarkSetList/MarkSet/MaxValue

M

The maximum value in the range of marks.


xs:decimal
 ComponentTypeM

Defines the associated result format.


values:
Comment
Grade
Mark
 ResultQualifierM

Defines the format or type of result(s) awarded.


UKAssessmentResultQualifierType
 AssessmentMethodM

The method or format of the Assessment.


UKAssessmentMethodType
 SupplierNameO

The supplier/originator/designer/owner of the aspect.


xs:normalizedString
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.4-1: AssessmentResultComponent
<AssessmentResultComponent RefId="7C834EA9EDA12090347F83297E1C290C"> <Name>AT2</Name> <ShortDescription>AT2</ShortDescription> <Description>English Reading (AT2)</Description> <YearList> <Year>2007</Year> </YearList> <AssessmentSubjectList> <Subject>ENG</Subject> </AssessmentSubjectList> <StageList> <Stage>KS1</Stage> </StageList> <MarkSetList> <MarkSet> <StartDate>2005-07-01</StartDate> <MinValue>5</MinValue> <MaxValue>17</MaxValue> </MarkSet> </MarkSetList> <ComponentType>Mark</ComponentType> <ResultQualifier>NL</ResultQualifier> <AssessmentMethod>TA</AssessmentMethod> <SupplierName>XYZ Assessment Services</SupplierName> </AssessmentResultComponent>
Example 6.3.4-1: AssessmentResultComponent

6.3.5 AssessmentResultComponentGroup

High level container describing an assessment or test or common goal. Each component group contains one or more components, also known as subtests, aspects, or sub-assessments.

SIF_Events are reported for this object.

AssessmentResultComponentGroup
Figure 6.3.5-1: AssessmentResultComponentGroup AssessmentResultComponentGroup RefId Name LocalId SupplierName ComponentList AssessmentResultComponentRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentResultComponentGroup

High level container describing an assessment or test or common goal. Each component group contains one or more components, also known as subtests, aspects, or sub-assessments.



@
key
RefIdM

The ID (GUID) that uniquely identifies a component group.


RefIdType
 NameM

Name of the assessment/test/goal.


xs:normalizedString
 LocalIdO

The identifier used for this entity within the publishing application.


xs:normalizedString
 SupplierNameO

The supplier/originator/designer/owner of the described component grouping.


xs:normalizedString
 ComponentListM

A list of the components contained within this component group.


List
 ComponentList/AssessmentResultComponentRefId

MR

A SIF identifier for an assessment result component.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.5-1: AssessmentResultComponentGroup
<AssessmentResultComponentGroup RefId="C39048BE914227F9F32B193C408542D3"> <Name>Science Test Level KS2</Name> <SupplierName>DCSF</SupplierName> <ComponentList> <AssessmentResultComponentRefId>C39048BE914224F9F32B193C408542D5</AssessmentResultComponentRefId> <AssessmentResultComponentRefId>C39048BE914224F9F32B193C408542D5</AssessmentResultComponentRefId> <AssessmentResultComponentRefId>C39048BE914224F9F32B193C408542D5</AssessmentResultComponentRefId> </ComponentList> </AssessmentResultComponentGroup>
Example 6.3.5-1: AssessmentResultComponentGroup

6.3.6 AssessmentResultGradeSet

Represents a range of valid grades (over time) for a result.

SIF_Events are reported for this object.

AssessmentResultGradeSet
Figure 6.3.6-1: AssessmentResultGradeSet AssessmentResultGradeSet RefId LocalId Name Notes SupplierName GradeSets GradeSet StartDate EndDate Grades Grade Title Description RankOrder NumericValue SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentResultGradeSet

Represents a range of valid grades (over time) for a result.



@
key
RefIdM

The ID (GUID) of this grade set.


RefIdType
 LocalIdO

The locally assigned identifier for this grade set.


xs:normalizedString
 NameM

The descriptive identifier for the grade set.


xs:normalizedString
 NotesO

Explanatory/usage notes for grade set.


xs:normalizedString
 SupplierNameO

The supplier/originator/designer/owner of the gradeset.


xs:normalizedString
 GradeSetsM

Collection of versions of a grade set (dated, non-overlapping).


List
 GradeSets/GradeSetMR

A specific version of a grade set.



 GradeSets/GradeSet/StartDate

M

The start date from which this version is valid.


xs:date
 GradeSets/GradeSet/EndDate

O

The end date until which this version is valid.


xs:date
 GradeSets/GradeSet/Grades

M

The list of grades in the set.


List
 GradeSets/GradeSet/Grades/
     Grade
MR

Description of an individual grade in the set.



 GradeSets/GradeSet/Grades/
     Grade/Title
M

The visual representation of the grade.


xs:normalizedString
 GradeSets/GradeSet/Grades/
     Grade/Description
M

The meaning of the grade.


xs:normalizedString
 GradeSets/GradeSet/Grades/
     Grade/RankOrder
M

The rank position of the grade within the set where the highest value is assumed to be the best. While duplicate ranks are allowed they are discouraged.


xs:unsignedInt
 GradeSets/GradeSet/Grades/
     Grade/NumericValue
M

The numeric equivalent value of the grade.


xs:decimal
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.6-1: AssessmentResultGradeSet
<AssessmentResultGradeSet RefId="B8359C32AE94474174B03008D9A2744E"> <LocalId>PScaleIndATs</LocalId> <Name>P Scale Individual ATs</Name> <Notes>Grades for use with individual P Scale ATs in English and Maths</Notes> <SupplierName>XYZ Assessment Services</SupplierName> <GradeSets> <GradeSet> <StartDate>2004-01-09</StartDate> <EndDate>2006-08-31</EndDate> <Grades> <Grade> <Title>P8</Title> <Description>P8</Description> <RankOrder>1</RankOrder> <NumericValue>8.00</NumericValue> </Grade> <Grade> <Title>P7</Title> <Description>P7</Description> <RankOrder>22</RankOrder> <NumericValue>7.00</NumericValue> </Grade> <Grade> <Title>P6</Title> <Description>P6</Description> <RankOrder>3</RankOrder> <NumericValue>6.00</NumericValue> </Grade> </Grades> </GradeSet> </GradeSets> </AssessmentResultGradeSet>
Example 6.3.6-1: AssessmentResultGradeSet

6.3.7 AssessmentSession

A session is an event where an activity is performed by or on a learner set which contributes to the attainment of the objective. Occurs at a place and time (e.g., a test is taken, assignments are handed in, a test is marked).

SIF_Events are reported for this object.

AssessmentSession
Figure 6.3.7-1: AssessmentSession AssessmentSession RefId AssessmentLearnerSetRefId SessionDate SchoolInfoRefId Activity Status StaffList WorkforcePersonalRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 AssessmentSession

A session is an event where an activity is performed by or on a learner set which contributes to the attainment of the objective. Occurs at a place and time (e.g., a test is taken, assignments are handed in, a test is marked).



@
key
RefIdM

The ID (GUID) of this session.


RefIdType
@AssessmentLearnerSetRefIdM

The ID (GUID) of the set of people the session refers to.


IdRefType
 SessionDateO

The date at which the activity takes place.


xs:date
 SchoolInfoRefIdO

The ID (GUID) of the school that the event takes place.


IdRefType
 ActivityO

The activity which takes place.


values:
Test
Homework
Exam
 StatusO

The current status of the session.


values:
Planned
Complete
Published
 StaffListO

A list of the teachers or other staff responsible for administering or assisting the learner with this assessment.


List
 StaffList/WorkforcePersonalRefId

MR

The GUID that uniquely identifies a teacher or other staff member responsible for administering or assisting the learner with this assessment.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.7-1: AssessmentSession
<AssessmentSession RefId="E98AE59C32A2117D9192A6B873841743" AssessmentLearnerSetRefId="8456D39051CC755293A4A4763088F3D3"> <SessionDate>2007-01-27</SessionDate> <SchoolInfoRefId>8456D39051CC755293A4A4763088F3D3</SchoolInfoRefId> <Activity>Test</Activity> <Status>Complete</Status> <StaffList> <WorkforcePersonalRefId>E98AE59C32A2117D9192A6B873841743</WorkforcePersonalRefId> </StaffList> </AssessmentSession>
Example 6.3.7-1: AssessmentSession

6.3.8 ContactPersonal

This object describes any person created as a contact at a school, LEA, or other institution, or associated with a Learner or other Workforce person.

SIF_Events are reported for this object.

ContactPersonal
Figure 6.3.8-1: ContactPersonal ContactPersonal RefId PersonalInformation SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 ContactPersonal This object describes any person created as a contact at a school, LEA, or other institution, or associated with a Learner or other Workforce person.
@
key
RefIdMThe ID (GUID) of a person referenced as a contact. Note that this GUID may be the same GUID assigned to a LearnerPersonal and/or WorkforcePersonal object record. RefIdType
 PersonalInformationMName, demographic, address, email, and phone information for a person acting as a contact. PersonalInformation
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.8-1: ContactPersonal
<ContactPersonal RefId="92E50229EC3911DBA762000E0CA41EF3"> <PersonalInformation> <Name Type="C"> <FamilyName>Jorgenson</FamilyName> <GivenName>Stephen</GivenName> </Name> <Demographics> <Gender>M</Gender> </Demographics> <Email Type="Personal">sjorgens@myschool.co.uk</Email> <Address Type="Current"> <PAON> <StartNumber>27</StartNumber> </PAON> <Street>Lower Guildford Road</Street> <Locality>Knaphill</Locality> <Town>Woking</Town> <AdministrativeArea>Surrey</AdministrativeArea> <PostCode>GU22 2DE</PostCode> <Country>GBR</Country> </Address> <PhoneNumber Type="H"> <Number>01748661731</Number> </PhoneNumber> <OtherPhoneNumberList> <PhoneNumber Type="M"> <Number>07777977341</Number> </PhoneNumber> </OtherPhoneNumberList> </PersonalInformation> </ContactPersonal>
Example 6.3.8-1: ContactPersonal

6.3.9 Cycle

The timetable cycle

SIF_Events are reported for this object.

Cycle
Figure 6.3.9-1: Cycle Cycle RefId CycleName CycleDays PeriodsPerDay StandardPeriodList Period TTDayList TTDay TTDayId ShortName LongName DayIndex PeriodList Period SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 Cycle The timetable cycle
@
key
RefIdMUnique GUID for this cycle RefIdType
 CycleNameO

A label for this cycle


xs:normalizedString
xs:maxLength40
 CycleDaysM

Number of days in cycle


xs:integer
 PeriodsPerDayM

(Max) Number of periods per day (see Rectangular Grid Representation above)


xs:integer
 StandardPeriodListM

Period/ShortName and Period/LongName are Mandatory in this list.


List
 StandardPeriodList/Period

MR

Periods in a "standard timetable day"


Period
 TTDayListM

List all the days of the cycle


List
 TTDayList/TTDayMR

The days in the cycle



 TTDayList/TTDay/TTDayIdM

A unique local ID for this day


xs:normalizedString
xs:maxLength5
 TTDayList/TTDay/ShortName

M

A short day label


xs:normalizedString
xs:maxLength15
 TTDayList/TTDay/LongNameM

A long day label


xs:normalizedString
xs:maxLength25
 TTDayList/TTDay/DayIndexM

The day’s position in the cycle (1,2,3,etc).


xs:integer
 TTDayList/TTDay/PeriodList

O

List of the periods on this day – only need to list the periods that are different from the "standard timetable day" – any period not listed here is taken to be the same as in the "standard timetable day". Period/LongName and Period/ShortName are optional in this list.


List
 TTDayList/TTDay/PeriodList/
     Period
MR

A period


Period
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.9-1: Cycle
<Cycle RefId="07660F2862CA460BAA95E57AB49CBE88"> <CycleName>Cycle for Final Schedule</CycleName> <CycleDays>10</CycleDays> <PeriodsPerDay>5</PeriodsPerDay> <StandardPeriodList> <Period> <PeriodIndex>1</PeriodIndex> <ShortName>Reg</ShortName> <LongName>Registration</LongName> <StartTime>08:45:27</StartTime> <EndTime>08:50:27</EndTime> <Type>R</Type> </Period> <Period> <PeriodIndex>2</PeriodIndex> <ShortName>2</ShortName> <LongName>Period 1</LongName> <StartTime>08:50:27-05:00</StartTime> <EndTime>09:50:27</EndTime> <Type>T</Type> </Period> <Period> <PeriodIndex>3</PeriodIndex> <ShortName>3</ShortName> <LongName>Period 2</LongName> <StartTime>09:50:27</StartTime> <EndTime>10:50:27-05:00</EndTime> <Type>T</Type> </Period> </StandardPeriodList> <TTDayList> <TTDay> <TTDayId>DY01</TTDayId> <ShortName>Mon A</ShortName> <LongName>Monday Week A</LongName> <DayIndex>1</DayIndex> </TTDay> <TTDay> <TTDayId>DY02</TTDayId> <ShortName>Tue A</ShortName> <LongName>Tuesday Week A</LongName> <DayIndex>2</DayIndex> <PeriodList> <Period> <PeriodIndex>2</PeriodIndex> <StartTime>08:50:27-05:00</StartTime> <EndTime>09:40:27-05:00</EndTime> <Type>T</Type> </Period> <Period> <PeriodIndex>3</PeriodIndex> <StartTime>09:40:27-05:00</StartTime> <EndTime>10:50:27-05:00</EndTime> <Type>T</Type> </Period> </PeriodList> </TTDay> <TTDay> <TTDayId>DY10</TTDayId> <ShortName>Fri B</ShortName> <LongName>Friday Week B</LongName> <DayIndex>10</DayIndex> <PeriodList> <Period> <PeriodIndex>5</PeriodIndex> <Type>X</Type> </Period> </PeriodList> </TTDay> </TTDayList> </Cycle>
Example 6.3.9-1: Cycle

6.3.10 Identity

This object allows a system that stores network identities and/or passwords to share them with other applications through SIF. The provider of the Identity object may only support providing an identity or a password, or it may support both.

SIF_Events are reported for this object.

Identity
Figure 6.3.10-1: Identity Identity RefId SIF_RefId SIF_RefObject AuthenticationSource IdentityAssertions IdentityAssertion SchemaName PasswordList Password Algorithm KeyName AuthenticationSourceGlobalUID SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 Identity

This object allows a system that stores network identities and/or passwords to share them with other applications through SIF. The provider of the Identity object may only support providing an identity or a password, or it may support both.



@
key
RefIdM

The SIF RefId that uniquely identifies this object.


RefIdType
 SIF_RefIdM

The SIF RefId of a LearnerPersonal, WorkforcePersonal, or ContactPersonal object.


IdRefType
@SIF_RefObjectM

The type of SIF object that the SIF_RefId attribute identifies.


values:
LearnerPersonal
WorkforcePersonal
ContactPersonal
 AuthenticationSourceM

The type of source system that produced this Identityobject.

See implementation notes for provider requirements.


values:
UKAccessShibboleth
MSActiveDirectory
NovellNDS
OpenDirectory
Other
 IdentityAssertionsO

The list of identity assertions for this user.


ActionList (IdentityAssertion/@SchemaName)
 IdentityAssertions/IdentityAssertion

MR

The identification string for this user.


xs:normalizedString
@SchemaNameM

The name of the field.

See implementation notes for details on required schema elements.

Examples
eduPersonPrincipalName
sAmAccountName

xs:normalizedString
 PasswordListO

Allows a provider or publisher to specify the same password using multiple algorithms, if supported.


List
 PasswordList/PasswordMR

A representation of the user's password using the given algorithm.


xs:base64Binary
@AlgorithmM

The method used to encrypt the user's password. See the implementation details below.


values:
MD5
SHA1
DES
TripleDES
RC2
AES
@KeyNameM

The name of the key to be used for decryption of the password. Left blank for hash algorithms (MD5 and SHA1).


xs:normalizedString
 AuthenticationSourceGlobalUIDO

The globally unique identifier that links together separate Identity objects which reference the same Person.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.10-1: Identity
<Identity RefId="4286194F43ED43C18EE2F0A27C4BEF86"> <SIF_RefId SIF_RefObject="LearnerPersonal">23B08571E4D645C3B82A3E52E5349925</SIF_RefId> <AuthenticationSource>UKAccessShibboleth</AuthenticationSource> <IdentityAssertions> <IdentityAssertion SchemaName="eduPersonPrincipalName">john.doe@asdf.sch.uk</IdentityAssertion> </IdentityAssertions> <AuthenticationSourceGlobalUID>A9A6CB2BC49344278C1FD6587D448B35</AuthenticationSourceGlobalUID> </Identity>
Example 6.3.10-1: Identity published by a UK Access Federation Shibboleth Provider
<Identity RefId="4286194F43ED43C18EE2F0A27C4BEF86"> <SIF_RefId SIF_RefObject="LearnerPersonal">23B08571E4D645C3B82A3E52E5349925</SIF_RefId> <AuthenticationSource>MSActiveDirectory</AuthenticationSource> <IdentityAssertions> <IdentityAssertion SchemaName="sAmAccountName">user01</IdentityAssertion> <IdentityAssertion SchemaName="userPrincipalName">user01@asdf.sch.uk</IdentityAssertion> <IdentityAssertion SchemaName="distinguishedName">cn=User01,cn=Users,dc=org</IdentityAssertion> </IdentityAssertions> <AuthenticationSourceGlobalUID>A9A6CB2BC49344278C1FD6587D448B35</AuthenticationSourceGlobalUID> </Identity>
Example 6.3.10-2: Identity published by Microsoft Active Directory

6.3.11 Junction

A representation of the Curriculum Diagram.

SIF_Events are reported for this object.

Junction
Figure 6.3.11-1: Junction Junction RefId Label ShortLabel LocalType InputList Input Type GroupLocalId OutputList Output Type LocalType GroupLocalId TeachingGroupRefId Desc ShortDesc NCYearList NCYear SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 Junction A representation of the Curriculum Diagram.
@
key
RefIdMA unique local identifier for this junction RefIdType
 LabelM

A free-format label that describes the junction. Used for display purposes in the MIS and/or TT-Software.


xs:normalizedString
xs:maxLength40
 ShortLabelM

A shorter version of Label, for display purposes.


xs:normalizedString
xs:maxLength20
 LocalTypeO

An optional way for the TT-Software to provide information about the "type" of junction (eg: "band" or "block")


xs:normalizedString
xs:maxLength30
 InputListM

List of one or more input groups


List
 InputList/InputMR

The input(s) into this junction



 InputList/Input/TypeC

Conditional and has only one value: "SC". "SC" has special meaning – it means this is the top of the "tree" and the input is the whole school.


values:
SC
School
 InputList/Input/GroupLocalId

C

If Type != "SC", this is the LocalId of another junction output


xs:normalizedString
xs:maxLength12
 OutputListM

List of one or more output junctions


List
 OutputList/OutputMR




 OutputList/Output/TypeM

"TG" has special meaning – it means this is the bottom of the "tree" and the output is a TeachingGroup. "YR" means a year (or "principal division") within the school (7,8,9,etc).


values:
TG
TeachingGroup
YR
Year
GR
Other Groups
 OutputList/Output/LocalType

O

An optional way for the TT-Software to provide information about the "type" of junction (eg: "band" or "block").


xs:normalizedString
xs:maxLength30
 OutputList/Output/GroupLocalId

C

Unique LocalID of this junction output


xs:normalizedString
xs:maxLength12
 OutputList/Output/TeachingGroupRefId

CIf Type = "TG" then include here the TeachingGroupID (see TeachingGroup) RefIdType
 OutputList/Output/DescC

Description. Required if Type is not "TG". Optional if Type is “TG” (since a TG has its own ShortName and LongName already)


xs:normalizedString
xs:maxLength40
 OutputList/Output/ShortDesc

C

A shorter version of Desc, for display purposes


xs:normalizedString
xs:maxLength12
 OutputList/Output/NCYearList

C

Can only be present if 'Output/Type' = "YR" and even then, it is optional. Used to denote the NC Year Group of the "YR" (or give more than one NC Year Group if this is a combined-year population)


List
 OutputList/Output/NCYearList/
     NCYear
MR

NC Year Group


NCYearGroup
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.11-1: Junction
<Junction RefId="3F57DC09701928365AA0176890234654"> <Label>School years</Label> <ShortLabel>Years</ShortLabel> <LocalType>Main Divisions</LocalType> <InputList> <Input> <Type>SC</Type> </Input> </InputList> <OutputList> <Output> <Type>YR</Type> <GroupLocalId>Year7</GroupLocalId> <Desc>Year 7</Desc> <NCYearList> <NCYear>7</NCYear> </NCYearList> </Output> <Output> <Type>YR</Type> <GroupLocalId>Year8</GroupLocalId> <Desc>Year 8</Desc> <NCYearList> <NCYear>8</NCYear> </NCYearList> </Output> </OutputList> </Junction>
Example 6.3.11-1: Junction - 1
<Junction RefId="2357DC09701928365AA0176890234654"> <Label>Basic Groups in Year 7</Label> <ShortLabel>Year7 Groups</ShortLabel> <LocalType>Basic Groups</LocalType> <InputList> <Input> <GroupLocalId>Year7</GroupLocalId> </Input> </InputList> <OutputList> <Output> <Type>GR</Type> <LocalType>Group</LocalType> <GroupLocalId>C#021/7A</GroupLocalId> <Desc>7A</Desc> <ShortDesc>7A</ShortDesc> </Output> <Output> <Type>GR</Type> <LocalType>Group</LocalType> <GroupLocalId>C#022/7B</GroupLocalId> <Desc>7B</Desc> <ShortDesc>7B</ShortDesc> </Output> <Output> <Type>GR</Type> <LocalType>Group</LocalType> <GroupLocalId>C#024/7C</GroupLocalId> <Desc>7C</Desc> <ShortDesc>7C</ShortDesc> </Output> </OutputList> </Junction>
Example 6.3.11-2: Junction - 2
<Junction RefId="A234DC09701928365AA0176890234654"> <Label>7AB (p)</Label> <ShortLabel>7p</ShortLabel> <LocalType>Band</LocalType> <InputList> <Input> <GroupLocalId>C#021/7A</GroupLocalId> </Input> <Input> <GroupLocalId>C#022/7B</GroupLocalId> </Input> </InputList> <OutputList> <Output> <Type>GR</Type> <LocalType>Band</LocalType> <GroupLocalId>C#023/7AB</GroupLocalId> <Desc>7AB (p)</Desc> <ShortDesc>7p</ShortDesc> </Output> </OutputList> </Junction>
Example 6.3.11-3: Junction - 3
<Junction RefId="2347DC09701928365AA0176890234654"> <Label>7p Ma</Label> <ShortLabel>7p Ma</ShortLabel> <LocalType>Block</LocalType> <InputList> <Input> <GroupLocalId>C#023/7AB</GroupLocalId> </Input> </InputList> <OutputList> <Output> <Type>TG</Type> <LocalType>TeachingGroup</LocalType> <TeachingGroupRefId>0000000000000000002437702F4D6131</TeachingGroupRefId> <Desc>7p/Ma1</Desc> <ShortDesc>7p/Ma1</ShortDesc> </Output> <Output> <Type>TG</Type> <LocalType>TeachingGroup</LocalType> <TeachingGroupRefId>0000000000000000002437702F4D6132</TeachingGroupRefId> <Desc>7p/Ma2</Desc> <ShortDesc>7p/Ma2</ShortDesc> </Output> </OutputList> </Junction>
Example 6.3.11-4: Junction - 3

6.3.12 LAInfo

This object contains information about a Local Authority (LA). Compare with US/Canada object: LEAInfo.

SIF_Events are reported for this object.

LAInfo
Figure 6.3.12-1: LAInfo LAInfo RefId LAId LAName LAFullName LAURL LAAddress AddressList LAPhoneNumber PhoneNumberList LAContactList SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LAInfo  This object contains information about a Local Authority (LA). Compare with US/Canada object: LEAInfo.
@
key
RefIdMThe GUID of the LA whose information this is. RefIdType
 LAIdMThe 3-digit LA number assigned by DfES. LAId
 LANameMThe LA's short name to be used for reporting purposes. Normally, the word "Council" should not be included. LAName
 LAFullNameMThe LA's full name. xs:normalizedString
 LAURLOURL for the main LA website. xs:anyURI
 LAAddressOThe LA's main address information. Address
 AddressListOA list of the LA's other addresses, if any. AddressList
 LAPhoneNumberOThe LA's primary phone number. PhoneNumber
 PhoneNumberListOA list of the LA's other phone number(s). PhoneNumberList
 LAContactListOA list of contacts within the LA. ContactList
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.12-1: LAInfo
<LAInfo RefId="81559915646EBEC342277E6D2AA5EAEA"> <LAId>330</LAId> <LAName>BIRMINGHAM</LAName> <LAFullName>Birmingham City Council</LAFullName> <LAURL>http://www.birmingham.gov.uk</LAURL> <LAAddress Type="Mailing"> <PAON> <Description>Victoria Square</Description> </PAON> <SAON> <Description>Council House</Description> </SAON> <AdministrativeArea>Birmingham</AdministrativeArea> <PostCode>B1 1BB</PostCode> <Country>GBR</Country> </LAAddress> <LAPhoneNumber Type="W"> <Number>01213039944</Number> </LAPhoneNumber> <LAContactList> <Contact SIF_RefId="7B391229EC3911DBA762000E0CA444AF" SIF_RefObject="ContactPersonal"> <PositionTitle>Chief Auditor</PositionTitle> <Role>Financial auditor</Role> <PublishInDirectory>Yes</PublishInDirectory> </Contact> <Contact SIF_RefId="9AB56229EC3911DBA762000E0C57A9E3" SIF_RefObject="ContactPersonal"> <PositionTitle>Building Inspector</PositionTitle> <Role>Maintains buildings per city codes</Role> <PublishInDirectory>Yes</PublishInDirectory> </Contact> </LAContactList> </LAInfo>
Example 6.3.12-1: LAInfo

6.3.13 LearnerAssessmentResponseSet

The set of all responses provided by a learner while taking an assessment. This information represents the raw input data that is then evaluated to produce one or more scores, marks, or grades for the learner.

SIF_Events are reported for this object.

LearnerAssessmentResponseSet
Figure 6.3.13-1: LearnerAssessmentResponseSet LearnerAssessmentResponseSet RefId AssessmentResponseComponentRefId LearnerPersonalRefId Items Item Response ResponseStatus ResponseTime Mark Group ItemName ItemNumber OrderAsked NumberOfAttempts SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerAssessmentResponseSet

The set of all responses provided by a learner while taking an assessment. This information represents the raw input data that is then evaluated to produce one or more scores, marks, or grades for the learner.



@
key
RefIdM

The ID (GUID) that uniquely identifies this response set.


RefIdType
@AssessmentResponseComponentRefIdM

The ID (GUID) of the assessment response component that the responses are associated with


IdRefType
@LearnerPersonalRefIdM

The ID (GUID) of the Learner for whom these responses are.


IdRefType
 ItemsM

A container for item responses.


List
 Items/ItemOR

An item contains response data and metadata. An item is defined as the stimuli presented to a learner to evoke a response for the purpose of evaluation. In most cases an item equates to a single question on the assessment.



 Items/Item/ResponseM

Learner selection or response in raw format.


xs:string
 Items/Item/ResponseStatus

O

Status of the response.


values:
Correct
Incorrect
Complete
PartiallyComplete
Viewed
NotViewed
NotAnswered
Attempted (viewed but no response given)
Incomplete
 Items/Item/ResponseTimeO

The length of time the learner took to respond.


xs:duration
 Items/Item/MarkO

The mark achieved for this item as evaluated by the assessment tool at the time of assessment.


xs:normalizedString
 Items/Item/GroupO

The item group within the assessment.


xs:normalizedString
 Items/Item/ItemNameO

Identifies the item on the assessment by name.


xs:token
 Items/Item/ItemNumberO

Identifies the item by number on the assessment.


xs:token
 Items/Item/OrderAskedO

The order in which the item was asked.


xs:decimal
 Items/Item/NumberOfAttempts

O

The number of times a learner changes their answer or attempts a response.


xs:unsignedInt
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.13-1: LearnerAssessmentResponseSet
<LearnerAssessmentResponseSet RefId="D6548D9AE6B87192AE98384174359C32" AssessmentResponseComponentRefId="7192AE98384139051CC755293A2117BC" LearnerPersonalRefId="7192AE98384139051CC755293A2117BC"> <Items> <Item> <Response>C</Response> <ResponseStatus>Complete</ResponseStatus> <ResponseTime>PT32S</ResponseTime> <Mark>Y</Mark> <Group>Writing Section 3</Group> <ItemName>Writing 3A</ItemName> <ItemNumber>W3A</ItemNumber> <OrderAsked>1</OrderAsked> <NumberOfAttempts>2</NumberOfAttempts> </Item> </Items> </LearnerAssessmentResponseSet>
Example 6.3.13-1: LearnerAssessmentResposeSet

6.3.14 LearnerAssessmentResult

A single result for a learner.

SIF_Events are reported for this object.

LearnerAssessmentResult
Figure 6.3.14-1: LearnerAssessmentResult LearnerAssessmentResult RefId AssessmentComponentRefId LearnerPersonalRefId SchoolInfoRefId AchievementDate Result ResultStatus AssessmentSessionList AssessmentSessionRefId WorkforcePersonalRefId Note SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerAssessmentResult

A single result for a learner.



@
key
RefIdM

The ID (GUID) of this result.


RefIdType
@AssessmentComponentRefIdM

The assessment component that the result is for.


IdRefType
@LearnerPersonalRefIdM

The ID (GUID) of the learner achieving the results.


IdRefType
 SchoolInfoRefIdM

The school at which the assessment was taken.


IdRefType
 AchievementDateM

The date the results were achieved.


xs:date
 ResultM

A grade title, a comment, or a mark (dependent on ComponentType of associated aspect). Marks and grades should be valid in the grade set or mark set on the date the assessment was achieved.


xs:normalizedString
 ResultStatusM

Indicates whether the result is estimated, an interim result, provisional, actual result or a target.


UKAssessmentResultStatusType
 AssessmentSessionListO

The sessions which led to the result generation.


List
 AssessmentSessionList/AssessmentSessionRefId

MR

The ID (GUID) that uniquely identifies the session associated with the result.


IdRefType
 WorkforcePersonalRefIdO

The ID (GUID) that uniquely identifies the teacher or staff member who created the result.


IdRefType
 NoteO

Explanatory/usage notes for result.


xs:normalizedString
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO

Use extended elements to define additional information to be preserved with this result data including any learner demographic data known to be valid at the time of assessment and not otherwise specified.


SIF_ExtendedElements
Table 6.3.14-1: LearnerAssessmentResult
<LearnerAssessmentResult RefId="A2117D9192AE98AE59C326B873841743" AssessmentComponentRefId="7192AE98384139051CC755293A2117BC" LearnerPersonalRefId="8456D39051CC755293A4A4763088F3D3"> <SchoolInfoRefId>845628E00D2E7129487A7AC32598F106</SchoolInfoRefId> <AchievementDate>2007-03-04</AchievementDate> <Result>11</Result> <ResultStatus>R</ResultStatus> </LearnerAssessmentResult>
Example 6.3.14-1: LearnerAssessmentResult

6.3.15 LearnerAttendance

This object provides attendance information for a particular learner in a particular school for a particular period of time. The time can be specified as before, during, or after school and may be for any period of time, including lessons.

SIF_Events are reported for this object.

LearnerAttendance
Figure 6.3.15-1: LearnerAttendance LearnerAttendance RefId LearnerPersonalRefId SchoolInfoRefId AttendanceDate TimeIn StartTime FinishTime Session SessionLabel AttendanceDomain AttendanceCode AttendanceNote RecordTimestamp InputSource WorkforcePersonalRefId SchoolGroupRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerAttendance

This object provides attendance information for a particular learner in a particular school for a particular period of time. The time can be specified as before, during, or after school and may be for any period of time, including lessons.



@
key
RefIdM

The ID (GUID) assigned to uniquely identify this attendance record.


RefIdType
@LearnerPersonalRefIdM

The ID (GUID) of the learner for which this attendance mark is recorded.


IdRefType
@SchoolInfoRefIdM

The school where the attendance mark was taken.


IdRefType
 AttendanceDateM

The date of the attendance period.


xs:date
 TimeInO

The time when the learner began the attendance period.


xs:time
 StartTimeC

The time the attendance period started. StartTime is required when this object represents a lesson


xs:time
 FinishTimeO

The time the attendance period finished.


xs:time
 SessionC

The session within which this attendance mark applies (e.g. AM/PM). Session is required when StartTime is not specified and the object refers to a session attendance mark (i.e. AttendanceDomain is session).


UKAttendanceSessionType
 SessionLabelO

A label associated with the session to further describe the session, when applicable.


xs:normalizedString
 AttendanceDomainM

The attendance type.


UKAttendanceDomainType
 AttendanceCodeM

The attendance mark/code.


UKAttendanceCodeType
 AttendanceNoteC

Additional comments. Required when record is specified as a correction.


xs:normalizedString
 RecordTimestampO

The date/time when recorded. When more than one record exists using the same RefId, the record with the latest timestamp is assumed to be the most current. This is possible when a record is republished due to corrections.


xs:dateTime
 InputSourceM

The source of the attendance record data. Could be Workforce member, biometric device, or other.


UKAttendanceSourceType
 WorkforcePersonalRefIdO

The ID (GUID) of the staff member responsible for recording this attendance information.


IdRefType
 SchoolGroupRefIdO

The ID (GUID) of the group that this attendance applies to. Useful when the attendance period corresponds to a lesson time.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.15-1: LearnerAttendance
<LearnerAttendance RefId="749382AD4800123C9ED02054FB7842B7" LearnerPersonalRefId="98120AB87459381AB064829763D0934A" SchoolInfoRefId="44AC87090487621198AC4E89480D3AC1"> <AttendanceDate>2008-04-15</AttendanceDate> <TimeIn>08:03:44</TimeIn> <StartTime>08:00:00</StartTime> <FinishTime>08:40:00</FinishTime> <Session>AM</Session> <SessionLabel>AM Session</SessionLabel> <AttendanceDomain>Both</AttendanceDomain> <AttendanceCode>/</AttendanceCode> <RecordTimestamp>2008-04-16T10:45:21Z</RecordTimestamp> <InputSource>WF</InputSource> <WorkforcePersonalRefId>6589320A7DE45610487389EE348A2341</WorkforcePersonalRefId> <SchoolGroupRefId>94278329AE45903845F109E45934BA17</SchoolGroupRefId> </LearnerAttendance>
Example 6.3.15-1: LearnerAttendance

6.3.16 LearnerAttendanceSummary

This object provides a summary of a learner's daily attendance and membership information for a given school during the time period between the StartDate and EndDate, inclusive. As such, there may be multiple instances of this object for a learner in a school over the course of an academic school year. Note that sessions are defined by each school and in most cases is two but can be any number in the range 1-10. Compare with US/Canada object: StudentAttendanceSummary.

SIF_Events are reported for this object.

LearnerAttendanceSummary
Figure 6.3.16-1: LearnerAttendanceSummary LearnerAttendanceSummary LearnerPersonalRefId SchoolInfoRefId SchoolYear StartDate EndDate ReasonsList Reason Code Type Status Total SessionsAttendedTotal SessionsPossible AuthorisedAbsences UnauthorisedAbsences AlternativeTuitionHours SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerAttendanceSummary  This object provides a summary of a learner's daily attendance and membership information for a given school during the time period between the StartDate and EndDate, inclusive. As such, there may be multiple instances of this object for a learner in a school over the course of an academic school year. Note that sessions are defined by each school and in most cases is two but can be any number in the range 1-10. Compare with US/Canada object: StudentAttendanceSummary.
@
key
LearnerPersonalRefIdMThe ID (GUID) of the learner for whom this attendance information is being reported. IdRefType
@
key
SchoolInfoRefIdMThe ID (GUID) of the school for which this attendance information is being reported. IdRefType
key SchoolYearMSchool year for which this information is applicable, expressed as the four-digit year in which the school year ends (e.g. 2007 for the 2006/07 school year). SchoolYear
key StartDateMStarting date of this attendance reporting period. xs:date
key EndDateMEnding date of this attendance reporting period. xs:date
 ReasonsListMAn enumeration of sessions by reason code within the reporting period. List
 ReasonsList/ReasonMRLearner attendance marks by code and number.
 ReasonsList/Reason/CodeMThe attendance code. UKAttendanceCodeType
 ReasonsList/Reason/TypeMThe attendance code type. values:
Absent
EarlyDeparture
Late
Partial
Present
Other
NA
 ReasonsList/Reason/Status

MThe authorised status of the attendance code. values:
Authorised
Unauthorised
Unknown
NA
 ReasonsList/Reason/TotalMThe total number of sessions attributed to this reason between StartDate and EndDate for the specified reason. xs:unsignedInt
 SessionsAttendedTotalMThe number of sessions the learner attended school when school was in session between the StartDate and EndDate, inclusive. xs:unsignedInt
 SessionsPossibleMThe number of sessions the learner was present plus the number of sessions the learner was absent (authorised and unauthorised) when school was in session during the period between the StartDate and EndDate, inclusive. xs:unsignedInt
 AuthorisedAbsencesOThe number of sessions the learner was absent from school with a valid excuse when school was in session between the StartDate and EndDate, inclusive. Note that ts column can be derived from Reason Status. xs:unsignedInt
 UnauthorisedAbsencesOThe number of sessions the learner was absent from school without a valid excuse when school was in session between the StartDate and EndDate, inclusive. Note that this column can be derived from Reason Status. xs:unsignedInt
 AlternativeTuitionHoursONumber of Alternative Tuition (whole) hours attended between the StartDate and EndDate, inclusive. UKTuitionHoursType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.16-1: LearnerAttendanceSummary
<LearnerAttendanceSummary LearnerPersonalRefId="FD5976C1E29B11DBBB7C000F1F655C13" SchoolInfoRefId="43B3A82FDC8D11DBBB7C000F1F655C13"> <SchoolYear>2007</SchoolYear> <StartDate>2006-10-01</StartDate> <EndDate>2007-10-01</EndDate> <ReasonsList> <Reason> <Code>J</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>1</Total> </Reason> <Reason> <Code>W</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>3</Total> </Reason> <Reason> <Code>H</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>14</Total> </Reason> <Reason> <Code>I</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>349</Total> </Reason> <Reason> <Code>G</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>16</Total> </Reason> <Reason> <Code>L</Code> <Type>Late</Type> <Status>Authorised</Status> <Total>58</Total> </Reason> <Reason> <Code>D</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>4187</Total> </Reason> <Reason> <Code>C</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>573</Total> </Reason> <Reason> <Code>V</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>20</Total> </Reason> <Reason> <Code>U</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>1</Total> </Reason> <Reason> <Code>N</Code> <Type>Absent</Type> <Status>Unauthorised</Status> <Total>18</Total> </Reason> <Reason> <Code>B</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>87</Total> </Reason> <Reason> <Code>M</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>115</Total> </Reason> <Reason> <Code>O</Code> <Type>Absent</Type> <Status>Authorised</Status> <Total>462</Total> </Reason> </ReasonsList> <SessionsAttendedTotal>157</SessionsAttendedTotal> <SessionsPossible>238</SessionsPossible> <AuthorisedAbsences>73</AuthorisedAbsences> <UnauthorisedAbsences>8</UnauthorisedAbsences> </LearnerAttendanceSummary>
Example 6.3.16-1: LearnerAttendanceSummary

6.3.17 LearnerBehaviourIncident

Object to represent a behaviour incident at an educational establishment

SIF_Events are reported for this object.

LearnerBehaviourIncident
Figure 6.3.17-1: LearnerBehaviourIncident LearnerBehaviourIncident RefId SchoolInfoRefId BehaviourType Weighting Classification SubClassification Incident Date Duration Location Comments PrecursorRefId Confidentiality Participants Employees Employee WorkforcePersonalRefId ParticipationTypes ParticipationType ParticipationComment Learners Learner LearnerPersonalRefId ParticipationTypes ParticipationType ParticipationComment Motivation Weighting Actions Action Classification SubClassification Date Person Comment SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerBehaviourIncident

Object to represent a behaviour incident at an educational establishment



@
key
RefIdM

The ID (GUID) that uniquely identifies a particular incident


RefIdType
 SchoolInfoRefIdM

The ID (GUID) of the school that the event takes place.


IdRefType
 BehaviourTypeM

The type of this Behaviour



 BehaviourType/WeightingM

An indicator of the positive / Negative nature and severity of behaviour


xs:integer
xs:minInclusive-10
xs:maxInclusive10
xs:fractionDigits0
 BehaviourType/Classification

M

Agreed Classification for this behaviour type


union of:

UKPupilExclusionReasonType

additional values:

Physical Abuse
Verbal Abuse
Substance Abuse
Bullying
Property Abuse
Disruption
Compliance
Other
 BehaviourType/SubClassification

C

Free text string to precisely define the type of behaviour (if classification is Other then sub classification is mandatory else optional)


xs:normalizedString
 IncidentM




 Incident/DateM

Date and time Incident took place (started to take place)


xs:dateTime
 Incident/DurationO

How long incident lasted (minutes)


xs:integer
 Incident/LocationM

The Location the Incident (mostly) took place


values:
Offsite Unsupervised
Offsite Supervised
Class
School Indoors Non-Class
School Outdoors Non-Class
Other
 Incident/CommentsO

free text comments about the incident


xs:normalizedString
 Incident/PrecursorRefIdO

A Preceding LearnerBehaviourIncidentRefID to which this behaviour is linked


IdRefType
 Incident/ConfidentialityM

May indicate the type of persons that this should be displayed to


values:
Low
Medium
High
 ParticipantsM

people involved in the incident



 Participants/EmployeesM



List
 Participants/Employees/Employee

MR




@WorkforcePersonalRefIdM

The REFID of the member of Staff


IdRefType
 Participants/Employees/Employee/
     ParticipationTypes
M

The capacities in which this staff member was involved



 Participants/Employees/Employee/
     ParticipationTypes/ParticipationType

MR

The capacity of Involvement


values:
Recorder
Incharge
Victim/Recipient
Witness/Observer
 Participants/Employees/Employee/
     ParticipationComment
O

free text comments about the individuals Involvement In the incident


xs:normalizedString
 Participants/LearnersM

Must be at least one learner participating as the person who perpetrated the incident


List
 Participants/Learners/Learner

MR




@LearnerPersonalRefIdM

The REFID of the learner


IdRefType
 Participants/Learners/Learner/
     ParticipationTypes
M

The capacities in which this learner member was involved



 Participants/Learners/Learner/
     ParticipationTypes/ParticipationType

MR

The capacity of Involvement


values:
Perpetrator
Victim/Recipient
Witness/Observer
 Participants/Learners/Learner/
     ParticipationComment
O

free text comments about the individuals Involvement In the incident


xs:normalizedString
 Participants/Learners/Learner/
     Motivation
O

Any recorded Motivation for participation


values:
Racial
Sexual
Financial
Religious
Other
 Participants/Learners/Learner/
     Weighting
O

How many Points awarded for the participation (indicator of the positive / Negative nature and severity of individuals behaviour)



 Participants/Learners/Learner/
     Actions
O



List
 Participants/Learners/Learner/
     Actions/Action
MR

Actions/Outcomes which have or will occur for this individual



 Participants/Learners/Learner/
     Actions/Action/Classification

M

The classification Of Outcome


values:
Communication
Activity
Punishment
Exclusion
 Participants/Learners/Learner/
     Actions/Action/SubClassification

O

Free text string to precisely define the action (if classification is Other then sub classification is mandatory else optional)


xs:normalizedString
 Participants/Learners/Learner/
     Actions/Action/Date
M

Date and time Action has or Will take place


xs:dateTime
 Participants/Learners/Learner/
     Actions/Action/Person
O

The PersonRefId of the person (student/ Employee/ parent) who will carry out the action


IdRefType
 Participants/Learners/Learner/
     Actions/Action/Comment
O

free text comments about the Action


xs:normalizedString
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.17-1: LearnerBehaviourIncident
<LearnerBehaviourIncident RefId="B8359C32AE94474174B03008D9A2744E"> <SchoolInfoRefId>AE98AE59A2841743117D9192C326B873</SchoolInfoRefId> <BehaviourType> <Weighting>1</Weighting> <Classification>Substance Abuse</Classification> <SubClassification>Alcohol</SubClassification> </BehaviourType> <Incident> <Date>2009-05-02T14:30:00-05:00</Date> <Duration>200</Duration> <Location>Offsite Supervised</Location> <Comments>several students caught drinking on school trip</Comments> <PrecursorRefId>7192AE98384139051CC755293A2117BC</PrecursorRefId> <Confidentiality>Low</Confidentiality> </Incident> <Participants> <Employees> <Employee WorkforcePersonalRefId="48977F077DE24288B79F2CE196DB3CBC"> <ParticipationTypes> <ParticipationType>Witness/Observer</ParticipationType> <ParticipationType>Recorder</ParticipationType> </ParticipationTypes> <ParticipationComment>saw alcohol purchase and consumption </ParticipationComment> </Employee> </Employees> <Learners> <Learner LearnerPersonalRefId="8192BE98384149051CC755293A2117DE"> <ParticipationTypes> <ParticipationType>Perpetrator</ParticipationType> </ParticipationTypes> <ParticipationComment>Didn’t know not allowed to drink</ParticipationComment> <Motivation>Other</Motivation> <Weighting>1</Weighting> <Actions> <Action> <Classification>Punishment</Classification> <SubClassification>Detention</SubClassification> <Date>2009-05-02T14:30:00-05:00</Date> <Person>8192BE98384149051CC755293A2117DE</Person> <Comment>Essay on Social costs of Alcohol</Comment> </Action> </Actions> </Learner> <Learner LearnerPersonalRefId="9184CE98384149051CC755293A2117DE"> <ParticipationTypes> <ParticipationType>Witness/Observer</ParticipationType> </ParticipationTypes> <ParticipationComment>Saw him buy Alcohol</ParticipationComment> </Learner> </Learners> </Participants> </LearnerBehaviourIncident>
Example 6.3.17-1: LearnerBehaviourIncident

6.3.18 LearnerContact

This object contains information related to a contact person for a learner. Compare with US/Canada object: StudentContact.

SIF_Events are reported for this object.

LearnerContact
Figure 6.3.18-1: LearnerContact LearnerContact LearnerPersonalRefId ContactPersonalRefId Relationship LocalId ContactFlags ParentLegalGuardian PickupRights LivesWith AddressDisclosure EmailCommunication EmergencyContact DisciplinaryContact HomeDuringDay MemberOfArmedForces PrimaryCareProvider RequiresInterpreter TransferAddress ContactSequence ContactSequenceSource SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerContact  This object contains information related to a contact person for a learner. Compare with US/Canada object: StudentContact.
@
key
LearnerPersonalRefIdMThe ID (GUID) of the learner whose contact this is. IdRefType
@
key
ContactPersonalRefIdMThe ID (GUID) of this contact. IdRefType
 RelationshipMDefines the relationship of the contact to the learner. UKRelationshipType
 LocalIdOThe locally-assigned identifier for this contact. LocalId
 ContactFlagsMContains Yes/No characteristics of the contact person's role. Provide a Yes value for all that apply. Otherwise No is assumed. At least one of the child elements of ContactFlags must have a Yes value.
 ContactFlags/ParentLegalGuardian

CDoes the individual have parental or legal guardianship responsibility for the learner? values:
Yes
No
 ContactFlags/PickupRights

CDoes the contact have pickup rights? values:
Yes
No
 ContactFlags/LivesWithCDoes the learner live with this contact? values:
Yes
No
 ContactFlags/AddressDisclosure

CCan address information be disclosed? values:
Yes
No
 ContactFlags/EmailCommunication

CDoes the contact prefer written communcation via email? Otherwise, postal mail will be used. values:
Yes
No
 ContactFlags/EmergencyContact

CShould this contact be notified in case of emergency? values:
Yes
No
 ContactFlags/DisciplinaryContact

CIs this person to be contacted in case of disciplinary action? values:
Yes
No
 ContactFlags/HomeDuringDay

CIs the contact at home during normal daytime hours? values:
Yes
No
 ContactFlags/MemberOfArmedForces

CIs this person a member of the armed forces? values:
Yes
No
 ContactFlags/PrimaryCareProvider

CDoes this person provide daily living or personal assistance to the learner? values:
Yes
No
 ContactFlags/RequiresInterpreter

CDoes the contact need a translator or interpreter? values:
Yes
No
 ContactFlags/TransferAddress

CShould this contact be transferred with the Learner if and when the Learner moves? values:
Yes
No
 ContactSequenceONumber (1-10) indicating the order in which the person should be contacted. Note that 2 or more contacts may have the same value. xs:unsignedInt
xs:minInclusive1
xs:maxInclusive10
 ContactSequenceSourceOIndicates the person who provided the contact sequence order. UKSourceCodeType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.18-1: LearnerContact
<LearnerContact LearnerPersonalRefId="20C10263ECC511DB91D00002B3E94955" ContactPersonalRefId="DF1D7BA3ECC411DB91D00002B3E94955"> <Relationship>RELA</Relationship> <LocalId>01216</LocalId> <ContactFlags> <ParentLegalGuardian>No</ParentLegalGuardian> <PickupRights>Yes</PickupRights> <LivesWith>No</LivesWith> <AddressDisclosure>Yes</AddressDisclosure> <EmailCommunication>No</EmailCommunication> <EmergencyContact>Yes</EmergencyContact> <DisciplinaryContact>No</DisciplinaryContact> <HomeDuringDay>No</HomeDuringDay> <MemberOfArmedForces>No</MemberOfArmedForces> <PrimaryCareProvider>No</PrimaryCareProvider> <RequiresInterpreter>No</RequiresInterpreter> <TransferAddress>Yes</TransferAddress> </ContactFlags> <ContactSequence>3</ContactSequence> <ContactSequenceSource>P</ContactSequenceSource> </LearnerContact>
Example 6.3.18-1: LearnerContact

6.3.19 LearnerEntitlement

SIF_Events are reported for this object.

LearnerEntitlement
Figure 6.3.19-1: LearnerEntitlement LearnerEntitlement RefId LearnerPersonalRefId SchoolInfoRefId EntitlementType EntitlementPeriodList EntitlementPeriod StartDate EndDate Note Value ProviderId ProviderType SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerEntitlement
@
key
RefIdMThe ID (GUID) that uniquely identifies a particular entitlement. RefIdType
 LearnerPersonalRefIdM

The ID (GUID) of the learner to whom this entitlement is linked.


RefIdType
 SchoolInfoRefIdM

The ID (GUID) of the school to which this entitlement applies.


RefIdType
 EntitlementTypeM

The type of this Entitlement


xs:normalizedString
 EntitlementPeriodListO

Dated Periods of entitlement.


List
 EntitlementPeriodList/EntitlementPeriod

MR

Dated Period of entitlement.



 EntitlementPeriodList/EntitlementPeriod/
     StartDate
M

Date Specific Entitlement starts


xs:date
 EntitlementPeriodList/EntitlementPeriod/
     EndDate
O

Date Specific Entitlement Ends has to be on or after Start date


xs:date
 EntitlementPeriodList/EntitlementPeriod/
     Note
O

A note relating to entitlement period


xs:normalizedString
 EntitlementPeriodList/EntitlementPeriod/
     Value
O

Numeric value %discount or monetary value associated with entitlement, relative to @entitlementType.



 ProviderIdO

The LA or Provider identifier of awarding organisation if relevant


IdRefType
@ProviderTypeM

LA or Provider type



 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.19-1: LearnerEntitlement
<LearnerEntitlement RefId="B8359C32AE94474174B03008D9A2744E"> <LearnerPersonalRefId>8456D39051CC755293A4A4763088F3D3</LearnerPersonalRefId> <SchoolInfoRefId>AE98AE59A2841743117D9192C326B873</SchoolInfoRefId> <EntitlementType>FSM</EntitlementType> <EntitlementPeriodList> <EntitlementPeriod> <StartDate>2007-01-09</StartDate> <EndDate>2008-08-31</EndDate> <Note>Awarded as family receive income support</Note> <Value>500</Value> </EntitlementPeriod> <EntitlementPeriod> <StartDate>2008-01-09</StartDate> <EndDate>2009-08-31</EndDate> <Note>Awarded as family receive income support - </Note> <Value>530</Value> </EntitlementPeriod> </EntitlementPeriodList> <ProviderId ProviderType="LA">7192AE98384139051CC755293A2117BC</ProviderId> </LearnerEntitlement>
Example 6.3.19-1: LearnerEntitlement

6.3.20 LearnerExclusion

This object contains information related to a learner being excluded from one or more sessions of school.

SIF_Events are reported for this object.

LearnerExclusion
Figure 6.3.20-1: LearnerExclusion LearnerExclusion RefId LearnerPersonalRefId Category Reason StartDate StartSession EndDate ActualSessions Appeal AppealDate AppealResult ReinstatementDate HeadTeacherNotificationDate GovernorMeetingDate HearingNoticeOfAppealDate SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerExclusion This object contains information related to a learner being excluded from one or more sessions of school.
@
key
RefIdMThe ID (GUID) of this exclusion. RefIdType
@LearnerPersonalRefIdMThe ID (GUID) of the excluded learner. IdRefType
 CategoryMExclusion category. values:
FIXD
Fixed
PERM
Permanent
LNCH
Lunchtime
 ReasonMReason for exclusion. UKExclusionReasonType
 StartDateMDate exclusion takes effect irrespective of any review or appeal. Normally this will not be the same as Date of Leaving (exitDate) and it should be noted that the learner will remain on the schools's roll for a period after this start date. xs:date
 StartSessionMSession to begin exclusion, starting with 1 for the first session of the day. In most cases there are two sessions per day but this is not always the case. Validation: Number between 1 and 10. xs:unsignedInt
xs:minInclusive1
xs:maxInclusive10
 EndDateODate exclusion concludes. xs:date
 ActualSessionsOTotal number of sessions for which the exclusion is in effect. For lunchtime exclusions, each lunchtime for which the exclusion applies is one session. For fixed term and permanent exclusions, this is one session during the school day. For exclusions that are followed by reinstatement the actual, not the planned number of sessions should be recorded. (Exclusion sessions are used only to calculate the total allowable in a term or academic year and are not the same as an attendance session.) xs:unsignedInt
 AppealOIs there an appeal against permanent exclusion? values:
Yes
No
 AppealDateODate for appeal against permanent exclusion. xs:date
 AppealResultOThe result of the appeal against permanent exclusion. values:
R
Reinstatement
E
Exclusion stands
O
Reinstatement would be appropriate but not in best interest of learner given other circumstances
 ReinstatementDateODate learner was reinstated, if appropriate. xs:date
 HeadTeacherNotificationDateODate head teacher notified parents, school LA, and home LA (if different) of exclusion. xs:date
 GovernorMeetingDateODate of Governors' meeting with respect to exclusion. xs:date
 HearingNoticeOfAppealDateODate of exclusion hearing/expiration of notice of appeal. xs:date
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.20-1: LearnerExclusion
<LearnerExclusion RefId="BBA61B08DC7D11DB9C010016353E6F4C" LearnerPersonalRefId="2EEC6C90DC7E11DB9C010016353E6F4C"> <Category>FIXD</Category> <Reason>OT</Reason> <StartDate>2006-10-10</StartDate> <StartSession>1</StartSession> <EndDate>2006-10-14</EndDate> <ActualSessions>10</ActualSessions> <Appeal>Yes</Appeal> <AppealDate>2006-10-11</AppealDate> <AppealResult>E</AppealResult> <ReinstatementDate>2006-10-17</ReinstatementDate> <HeadTeacherNotificationDate>2006-10-10</HeadTeacherNotificationDate> <GovernorMeetingDate>2006-10-12</GovernorMeetingDate> <HearingNoticeOfAppealDate>2006-10-12</HearingNoticeOfAppealDate> </LearnerExclusion>
Example 6.3.20-1: LearnerExclusion

6.3.21 LearnerGroupEnrolment

This object contains information about a learner's enrolment in a course (teaching group) or other (class, homeroom or registration) group. Compare with US/Canada object: StudentSectionEnrollment.

SIF_Events are reported for this object.

LearnerGroupEnrolment

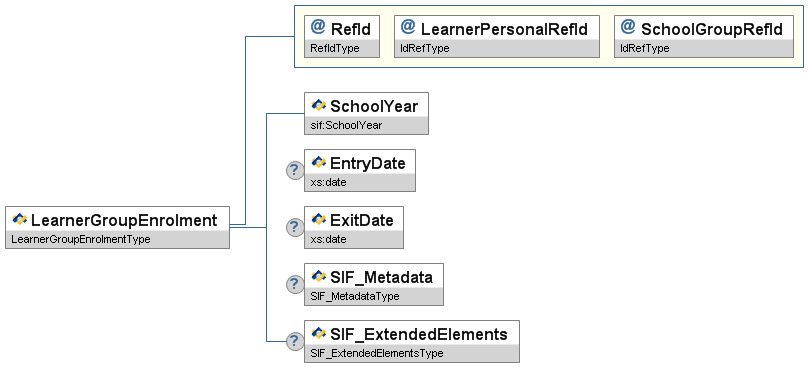

Figure 6.3.21-1: LearnerGroupEnrolment LearnerGroupEnrolment RefId LearnerPersonalRefId SchoolGroupRefId SchoolYear EntryDate ExitDate SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerGroupEnrolment  This object contains information about a learner's enrolment in a course (teaching group) or other (class, homeroom or registration) group. Compare with US/Canada object: StudentSectionEnrollment.
@
key
RefIdMThe ID (GUID) that uniquely identifies this LearnerGroupEnrolment entity. RefIdType
@LearnerPersonalRefIdMThe ID (GUID) of the learner to whom the enrolment information applies. IdRefType
@SchoolGroupRefIdMThe ID (GUID) of the group in which this learner is enroled. IdRefType
 SchoolYearMSchool year for which the information is applicable, expressed as the four-digit year in which the school year ends (e.g. 2007 for the 2006/07 school year). Where a group membership is valid across multiple years, the current year at the time of publication will be used. SchoolYear
 EntryDateODate from when this enrolment is valid. xs:date
 ExitDateODate on which the learner's enrolment ends or has ended. xs:date
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.21-1: LearnerGroupEnrolment
<LearnerGroupEnrolment RefId="E5571408DC7D11DB9C01001635359C02" LearnerPersonalRefId="9B554C90DC7E11DB9C0100163535DD18" SchoolGroupRefId="83831BA3ECC411DB91D00002B30059EC"> <SchoolYear>2007</SchoolYear> <EntryDate>2006-09-05</EntryDate> <ExitDate>2007-06-28</ExitDate> </LearnerGroupEnrolment>
Example 6.3.21-1: LearnerGroupEnrollment

6.3.22 LearnerPersonal

This object contains personal information related to a learner. As most learners are enroled in the school or establishment publishing this object, basic enrolment information is also provided to aid in overall SIF performance.

Compare with US/Canada object: StudentPersonal.

SIF_Events are reported for this object.

LearnerPersonal
Figure 6.3.22-1: LearnerPersonal LearnerPersonal RefId LocalId AlertMsgList AlertMsg Type MedicalAlertMsgList MedicalAlertMsg Severity PersonalInformation UIPI UPN UPNAllocationDate FormerUPNList UPN ULN FamilyStructure InCare Current Type LAId AtCurrentSchool PersonalEducationPlan ConnexionsAgreement ChildProtectionRegister IsRegistered LAId SiblingRegistered GiftedTalented HomeLA LearnerIdentity ModeOfTravel Pregnant SiblingList Sibling LearnerPersonalRefId UIPI UniformAllowance CurrentSchoolEnrolment LearnerSchoolEnrolmentRefId LAId EstablishmentId NCYearGroup PreviousEstablishmentList PreviousEstablishment EstablishmentId EstablishmentName LAId EntryDate ExitDate ExitType LastSchool SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerPersonal

This object contains personal information related to a learner. As most learners are enroled in the school or establishment publishing this object, basic enrolment information is also provided to aid in overall SIF performance.

Compare with US/Canada object: StudentPersonal.



@
key
RefIdMThe ID (GUID) of the learner. Note that this GUID may be the same one assigned to this person when this person is either a contact (ContactPersonal) or a member of the workforce (WorkforcePersonal). RefIdType
 LocalIdOThe locally-assigned identifier for this learner. This can be the internal pupil number or any other number as determined by the publishing agent. LocalId
 AlertMsgListO List
 AlertMsgList/AlertMsgMRThis is an alert message that is associated with the person. xs:normalizedString
@TypeMThis attribute specifies what type of alert message this is. values:
Legal
Discipline
Educational
Other
 MedicalAlertMsgListO List
 MedicalAlertMsgList/MedicalAlertMsg

MRMedical alert associated with the person. xs:normalizedString
@SeverityMThe level of severity of this medical alert. values:
Low
Moderate
High
Severe
Unknown
 PersonalInformationMPersonal name, demographic, address, email, and phone information for this learner. PersonalInformation
 UIPIOUnique Internal Pupil Number. xs:normalizedString
 UPNOUnique Pupil Number (UPN) allocated to each learner in maintained schools in England and Wales. It is an identifier for use in the educational context during a child's school career only and subject to Data Protection restrictions. xs:normalizedString
 UPNAllocationDateODate UPN was allocated by the LA. xs:date
 FormerUPNListOA list of former UPN's assigned to the learner, since it is possible that a learner could have more than one assigned. List
 FormerUPNList/UPNMRA former UPN assigned to the pupil whilst at a school (eg temporary UPN was allocated when the pupil was first admitted to the school but subsequently replaced by the permanent UPN being retrieved from a previous school). xs:normalizedString
 ULNOUnique Learner Number (ULN), a 10-digit number where zero is not allowed as the leading digit. xs:normalizedString
xs:pattern[1-9][0-9]{9}
 FamilyStructureOIndicates type of family structure learner is living in. UKFamilyStructureType
 InCareOInformation relating to whether the learner is "looked after" as defined by the Children Act 1989, which refers to children who are subject to care orders and those who are accommodated.
 InCare/CurrentMIndicates if the learner is "looked after" currently. values:
Yes
No
Unknown
 InCare/TypeOType of care the learner is in (eg fostering, children's home). UKInCareTypeType
 InCare/LAIdMThe 'originating' authority where the learner was originally placed in public care and which looks after the child for the purposes of the Children Act 1989. LAId
 InCare/AtCurrentSchoolOIndicates if the learner has ever been in care while at this school. values:
Yes
No
 InCare/PersonalEducationPlan

OIndicates if the learner in care has a personal education plan. values:
Yes
No
 ConnexionsAgreementOIndicates if parents have consented to allow learner data to be shared with Connexions (Middle, Secondary and Special Schools only). UKConnexionsAgreementType
 ChildProtectionRegisterOInformation relating to the Child Protection Register as it pertains to this learner.
 ChildProtectionRegister/IsRegistered

MIndicates if the learner has been registered on the Child Protection Register. values:
Yes
No
Unknown
 ChildProtectionRegister/LAId

OThe LA in which the learner was registered for protection. LAId
 ChildProtectionRegister/SiblingRegistered

OIndicates if the learner has a sibling that is also on the Child Protection Register. values:
Yes
No
 GiftedTalentedOLearner qualifies for Gifted/Talented status. values:
Yes
No
 HomeLAOThe LA in which the learner lives but not necessarily the one in which they attend school. LAId
 LearnerIdentityOClassification of national identity. (Wales) UKLearnerIdentityType
 ModeOfTravelOThe usual mode of travel normally used by the learner for the greater part (in distance) of the journey to and from school. UKUsualModeOfTravelType
 PregnantOLearner is pregnant. values:
Yes
No
 SiblingListOList of siblings also in same school. List
 SiblingList/SiblingMRA sibling of this learner in the same school.
 SiblingList/Sibling/LearnerPersonalRefId

MThe ID (GUID) of the LearnerPersonal record for this sibling. IdRefType
 SiblingList/Sibling/UIPIMThe Unique Internal Pupil Number for a sibling of this learner. xs:normalizedString
 UniformAllowanceOLearner is paid a uniform allowance. values:
Yes
No
 CurrentSchoolEnrolmentO This container reflects key enrolment data for the current or current main (home) school or establishment linked to a learner. This element is required except when there is no current enrolment for the learner within the school or establishment. It must also accurately reflect the data in the corresponding LearnerSchoolEnrolment object and generate change events for this object when change events are detected for LearnerSchoolEnrolment.
@LearnerSchoolEnrolmentRefIdMThe ID (GUID) of the LearnerSchoolEnrolment record associated with this learner that is also designated as the current or current main enrolment. IdRefType
 CurrentSchoolEnrolment/LAId

MThe DfES assigned number for the LA in which the learner is currently enroled with respect to their current or current main (home) school. LAId
 CurrentSchoolEnrolment/EstablishmentId

MThe DfES assigned number for the school or establishment in which the learner is currently enroled with respect to their current or current main (home) school. EstablishmentId
 CurrentSchoolEnrolment/NCYearGroup

MThe current or most recent National Curriculum Year Group of the learner in the LA. NCYearGroup
 PreviousEstablishmentListOA list of known previous schools or establishments. List
 PreviousEstablishmentList/
     PreviousEstablishment
ORA previous school or establishment.
 PreviousEstablishmentList/
     PreviousEstablishment/EstablishmentId

OEstablishment Number for this school EstablishmentId
 PreviousEstablishmentList/
     PreviousEstablishment/EstablishmentName

OSchool's name as indicated on the Annual Schools Census. xs:normalizedString
 PreviousEstablishmentList/
     PreviousEstablishment/LAId

OThe 3-digit LA number assigned by DfES. LAId
 PreviousEstablishmentList/
     PreviousEstablishment/EntryDate

OThe date the learner entered this school or establishment. xs:date
 PreviousEstablishmentList/
     PreviousEstablishment/ExitDate

OThe date the learner exited this school or establishment. xs:date
 PreviousEstablishmentList/
     PreviousEstablishment/ExitType

OCode indicating the type of exit from this school or establishment. UKLeavingReasonType
 PreviousEstablishmentList/
     PreviousEstablishment/LastSchool

OAn indication of whether the described school or establishment was the last establishment the learner attended. Note that it is possible that more than one establishment can be marked as LastSchool when a learner is enroled in more than one school simultaneously. values:
Yes
No
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.22-1: LearnerPersonal
<LearnerPersonal RefId="53E6F4C0109FDE4DC7E11DB9C0100163"> <LocalId>032134</LocalId> <PersonalInformation> <Name Type="B"> <FamilyName>Harris</FamilyName> <GivenName>Sonya</GivenName> <PreferredFamilyName>Harris</PreferredFamilyName> <PreferredGivenName>Sonya</PreferredGivenName> </Name> <Demographics> <EthnicityList> <Ethnicity> <Code>WENG</Code> <Source>P</Source> </Ethnicity> </EthnicityList> <Gender>F</Gender> <BirthDate>1990-06-23</BirthDate> <LanguageList> <Language> <Code>ENG</Code> <TypeList> <Type>F</Type> </TypeList> </Language> </LanguageList> </Demographics> <Email Type="School">sonya.harris@myschool.co.uk</Email> <Address Type="Current"> <PAON> <StartNumber>17</StartNumber> </PAON> <Street>Bushmaster Close</Street> <Town>Castle Vale</Town> <AdministrativeArea>Birmingham</AdministrativeArea> <PostCode>B35 7PH</PostCode> <Country>GBR</Country> </Address> </PersonalInformation> <UPN>F330950043367</UPN> <UPNAllocationDate>2001-08-27</UPNAllocationDate> <FormerUPNList> <UPN>C936846321107</UPN> </FormerUPNList> <ULN>1234567890</ULN> <FamilyStructure>A</FamilyStructure> <InCare> <Current>No</Current> <Type>WP</Type> <LAId>330</LAId> <AtCurrentSchool>Yes</AtCurrentSchool> <PersonalEducationPlan>No</PersonalEducationPlan> </InCare> <ConnexionsAgreement>Yes</ConnexionsAgreement> <ChildProtectionRegister> <IsRegistered>Yes</IsRegistered> <LAId>330</LAId> <SiblingRegistered>No</SiblingRegistered> </ChildProtectionRegister> <GiftedTalented>No</GiftedTalented> <HomeLA>330</HomeLA> <LearnerIdentity>ENG</LearnerIdentity> <Pregnant>No</Pregnant> <SiblingList> <Sibling> <LearnerPersonalRefId>6219B1684CF9B799640234CBB9992134</LearnerPersonalRefId> <UIPI>034887</UIPI> </Sibling> </SiblingList> <UniformAllowance>No</UniformAllowance> <CurrentSchoolEnrolment LearnerSchoolEnrolmentRefId="010C6038DC7E11DB9C010016353E6F4C"> <LAId>330</LAId> <EstablishmentId>5530</EstablishmentId> <NCYearGroup>9</NCYearGroup> </CurrentSchoolEnrolment> <PreviousEstablishmentList> <PreviousEstablishment> <EstablishmentId>2117</EstablishmentId> <EstablishmentName>Allbury Primary School</EstablishmentName> <LAId>936</LAId> <EntryDate>1999-08-20</EntryDate> <ExitDate>2001-06-14</ExitDate> <ExitType>MS</ExitType> <LastSchool>Yes</LastSchool> </PreviousEstablishment> </PreviousEstablishmentList> </LearnerPersonal>
Example 6.3.22-1: LearnerPersonal

6.3.23 LearnerSchoolEnrolment

This object defines information related to a learner's enrolment within a particular school or establishment.The current status on an enrolment is based on EntryDate and ExitDate. Future enrolments are supported where EntryDate is in the future. ExitDate may also be specified as a future occurance.

The publisher of this object must respond to all queries given EntryDate and ExitDate, when specified.

Compare with US/Canada object: StudentSchoolEnrollment.

SIF_Events are reported for this object.

LearnerSchoolEnrolment
Figure 6.3.23-1: LearnerSchoolEnrolment LearnerSchoolEnrolment RefId LearnerPersonalRefId SchoolInfoRefId MembershipType EntryDate NCYearGroupActual ClassType ExitDate ExitType Code Destination Code LAId EstablishmentId Name Sessions FTPTStatus Boarder AlternativeTuition Category StartDate EndDate TotalHours ProvisionType SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerSchoolEnrolment

This object defines information related to a learner's enrolment within a particular school or establishment.The current status on an enrolment is based on EntryDate and ExitDate. Future enrolments are supported where EntryDate is in the future. ExitDate may also be specified as a future occurance.

The publisher of this object must respond to all queries given EntryDate and ExitDate, when specified.

Compare with US/Canada object: StudentSchoolEnrollment.



@
key
RefIdMThe ID (GUID) that uniquely identifies a particular enrolment. RefIdType
@LearnerPersonalRefIdMThe ID (GUID) of the learner to whom this information is linked. IdRefType
@SchoolInfoRefIdMThe ID (GUID) of the school to which this enrolment applies. IdRefType
@MembershipTypeMThe type of this enrolment as it relates to the school identified by SchoolInfoRefId. UKLearnerEnrolmentStatusType
 EntryDateMThe date from when this enrolment is valid. xs:date
 NCYearGroupActualMThe year group in which the learner is taught for the majority of their time, regardless of their chronological age. NCYearGroup
 ClassTypeOIndicates if the learner is in a nursery class. Must be set to 'O' if age on August 31 is >= 6. UKClassTypeType
 ExitDateCThe ending date of this enrolment. If the learner has exited before the end of the school year, ExitDate must have a value. xs:date
 ExitTypeO
 ExitType/CodeMCode indicating the type of exit for this enrolment. UKLeavingReasonType
 ExitType/DestinationODescribes the destination of this learner upon exit.
 ExitType/Destination/Code

MCode indicating the destination type. UKLeavingDestinationType
 ExitType/Destination/LAId

OThe LA number for destination school or college. LAId
 ExitType/Destination/EstablishmentId

OThe DfES number for destination school or college. EstablishmentId
 ExitType/Destination/Name

OName of institution/employer of learner's destination. xs:normalizedString
 SessionsONumber of learner sessions (half days) per week. A maximum of 10 is possible per week. xs:unsignedInt
xs:maxInclusive10
 FTPTStatusOAn indication of whether the learner is enroled only part time. values:
Yes
No
 BoarderOIndicates whether the learner is a boarder at the school or not. UKBoarderTypeType
 AlternativeTuitionODescribes any alternative tuition received by the learner.
 AlternativeTuition/Category

MReason for alternative tuition. UKTuitionCategoryType
 AlternativeTuition/StartDate

MBeginning date for alternative tuition. xs:date
 AlternativeTuition/EndDate

OEnd date for alternative tuition. xs:date
 AlternativeTuition/TotalHours

OThe total number of hours provided for with the tuition. xs:unsignedInt
 AlternativeTuition/ProvisionType

MAlternative tuition provision type. UKAlternativeTuitionProvisionTypeType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.23-1: LearnerSchoolEnrolment
<LearnerSchoolEnrolment RefId="2545531BECC511DB91D00002B3E94955" LearnerPersonalRefId="2542F0C3ECC511DB91D00002B3E94955" SchoolInfoRefId="CAF16713ECC411DB91D00002B3E94955" MembershipType="P"> <EntryDate>2005-09-07</EntryDate> <NCYearGroupActual>1</NCYearGroupActual> <ClassType>O</ClassType> <ExitDate>2006-02-14</ExitDate> <ExitType> <Code>ST</Code> <Destination> <Code>MP</Code> <LAId>330</LAId> <EstablishmentId>2810</EstablishmentId> <Name>Thomas Holmes Primary School</Name> </Destination> </ExitType> <Sessions>10</Sessions> <FTPTStatus>No</FTPTStatus> <Boarder>B</Boarder> <AlternativeTuition> <Category>IL</Category> <StartDate>2005-09-07</StartDate> <EndDate>2006-02-14</EndDate> <TotalHours>103</TotalHours> <ProvisionType>HSP</ProvisionType> </AlternativeTuition> </LearnerSchoolEnrolment>
Example 6.3.23-1: LearnerSchoolEnrollment

6.3.24 LearnerSpecialNeeds

This object contains information regarding a special education need (SEN) for a learner when provisioned within a school or establishment. A new object exists for each provision. The current status of any provision can be determined by querying StartDate and EndDate. Both dates are allowed to be in the future. The publisher of this object must support queries on these dates.

SIF_Events are reported for this object.

LearnerSpecialNeeds
Figure 6.3.24-1: LearnerSpecialNeeds LearnerSpecialNeeds RefId LearnerPersonalRefId SchoolInfoRefId UnitMember ResourcedProvisionMember NextReviewDate Provision StartDate EndDate SENTypeList SENType Ranking AdviceAndAssessmentLevel GroupingAndSupportLevel SpecialisedResourcesLevel TeachingMethodsLevel EmbeddedBasicSkillsSupport LiteracyLevelStart LiteracyLevelEnd NumeracyLevelStart NumeracyLevelEnd NationalCurriculumList NationalCurriculum Modification Subject MedicalFlag ParamedicalSupport MedicalNotes SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 LearnerSpecialNeeds

This object contains information regarding a special education need (SEN) for a learner when provisioned within a school or establishment. A new object exists for each provision. The current status of any provision can be determined by querying StartDate and EndDate. Both dates are allowed to be in the future. The publisher of this object must support queries on these dates.



@RefIdMThe ID (GUID) that uniquely identifies a learner special need (provision). RefIdType
@LearnerPersonalRefIdMThe ID (GUID) of the learner with special educational needs. IdRefType
@SchoolInfoRefIdMThe ID (GUID) that uniquely identifies the school provisioned to work with the learner's special needs. IdRefType
 UnitMemberOIs this learner with special education needs (SEN) in a mainstream school a member of an SEN Unit (sometimes called special class)? values:
Yes
No
 ResourcedProvisionMemberOIs this learner with special education needs (SEN) in a mainstream school a member of a resourced provision? values:
Yes
No
 NextReviewDateODate of learner's next SEN review. xs:date
 ProvisionMA provision (stage) accommodated for this learner within this school. UKSENProvisionType
 StartDateM Date when learner was placed on the current SEN stage. Date may be in the future.  xs:date
 EndDateODate when learner finished this SEN stage. Assumed to be current unless a date in the past is specified here. xs:date
 SENTypeListOA list of Special Educational Needs types for this learner. Note that each SEN type must have its own unique ranking, and all rankings must be consecutive starting with 1. List
 SENTypeList/SENTypeMRThe code for a Special Educational Need (type) for this learner.  UKSENTypeType
@RankingMA value (starting at 1) indicating the order of significance of special educational need in relation to other SEN types listed here. xs:unsignedInt
 AdviceAndAssessmentLevelOLevel of provision for Advice and Assessment. (Wales) UKAdviceAndAssessmentWalesType
 GroupingAndSupportLevelOLevel of provision for Grouping and Support. (Wales) UKGroupingAndSupportWalesType
 SpecialisedResourcesLevelOLevel of provision for Specialised Resources. (Wales) UKSpecialisedResourcesWalesType
 TeachingMethodsLevelOLevel of provision for Curriculum and Teaching Methods. (Wales) UKCurriculumAndTeachingMethodsWalesType
 EmbeddedBasicSkillsSupportOProvision of Embedded Basic Skills support beyond the attainment of formal qualification. union of:

UKBasicSkillsSupportWalesType
 LiteracyLevelStartOLevel of literacy at start of this SEN stage. (Wales) xs:normalizedString
 LiteracyLevelEndOLevel of literacy achieved by the end of this SEN stage. (Wales) xs:normalizedString
 NumeracyLevelStartOLevel of numeracy at start of this SEN stage. (Wales) xs:normalizedString
 NumeracyLevelEndOLevel of numeracy achieved by the end of this SEN stage. (Wales) xs:normalizedString
 NationalCurriculumListOA list of National Curriculum subjects that have been modified or disapplied for this Learner. List
 NationalCurriculumList/NationalCurriculum

MRA National Curriculum subject that has been modified or disapplied for this Learner.
 NationalCurriculumList/NationalCurriculum/
     Modification
MHow is the National Curriculum used for this learner? values:
M
Modified
N
Disapplied
 NationalCurriculumList/NationalCurriculum/
     Subject
MNational Curriculum subject(s) for which modification or disapplication applies. UKGeneralSubjectType
 MedicalFlagOIs there medical information on this Learner? values:
Yes
No
 ParamedicalSupportOType of therapy needed by Learner. values:
P
Physiotherapy
S
Speech Therapy
O
Occupational Therapy
 MedicalNotesOSummary of learner's medical condition. xs:normalizedString
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.24-1: LearnerSpecialNeeds
<LearnerSpecialNeeds RefId="B3E949552545531BECC511DB91D00002" LearnerPersonalRefId="B7865180DC7E11DB9C010016353E6F4C" SchoolInfoRefId="3A35946CDC7D11DB9C010016353E6F4C"> <UnitMember>Yes</UnitMember> <ResourcedProvisionMember>Yes</ResourcedProvisionMember> <NextReviewDate>2007-05-25</NextReviewDate> <Provision>A</Provision> <StartDate>2006-09-01</StartDate> <EndDate>2007-06-30</EndDate> <SENTypeList> <SENType Ranking="1">MLD</SENType> </SENTypeList> <AdviceAndAssessmentLevel>AA3</AdviceAndAssessmentLevel> <GroupingAndSupportLevel>GS2</GroupingAndSupportLevel> <SpecialisedResourcesLevel>SR1</SpecialisedResourcesLevel> <TeachingMethodsLevel>CT3</TeachingMethodsLevel> <EmbeddedBasicSkillsSupport>01</EmbeddedBasicSkillsSupport> <LiteracyLevelStart>4</LiteracyLevelStart> <LiteracyLevelEnd /> <NumeracyLevelStart>3</NumeracyLevelStart> <NumeracyLevelEnd /> <NationalCurriculumList> <NationalCurriculum> <Modification>M</Modification> <Subject>PRI</Subject> </NationalCurriculum> </NationalCurriculumList> <MedicalFlag>No</MedicalFlag> <ParamedicalSupport>S</ParamedicalSupport> <MedicalNotes>Pupil must be monitored constantly.</MedicalNotes> </LearnerSpecialNeeds>
Example 6.3.24-1: LearnerSpecialNeeds

6.3.25 Lesson

A lesson on the timetable

SIF_Events are reported for this object.

Lesson
Figure 6.3.25-1: Lesson Lesson RefId TTDayId PeriodIndex Type Length TeachingGroupRefId NTCodeRef TeacherList TTTeacherRefId TTRoomRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 Lesson A lesson on the timetable
@
key
RefIdM RefIdType
 TTDayIdM

Day this lesson is scheduled


xs:normalizedString
xs:maxLength5
 PeriodIndexM

Index of period this lesson/meeting starts


xs:integer
 TypeM

Lesson/meeting type The value here determines whether a TeachingGroupID or an NTCode is required


values:
T
teaching
N
non-teaching
 LengthO

Length of lesson in periods (1=single, 2=double, etc). Can omit if just a single.


xs:integer
 TeachingGroupRefIdC

The Teaching Group being taught (may not be one if Type != "T") (see TeachingGroup)


IdRefType
 NTCodeRefC

If there is no TeachingGroupRefID (see NTCode)


IdRefType
 TeacherListO



List
 TeacherList/TTTeacherRefId

OR

The teacher(s) teaching / supervising this lesson (see TTTeacher)


IdRefType
 TTRoomRefIdO

The room (or location) where this lesson is taking place (see TTRoom)


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.25-1: Lesson
<Lesson RefId="6433E75ADAAA40EB9CCF5921D1B4AFFC"> <TTDayId>DY01</TTDayId> <PeriodIndex>1</PeriodIndex> <Type>T</Type> <Length>2</Length> <TeachingGroupRefId>AEECD89932678725A317B265CE015413</TeachingGroupRefId> <TeacherList> <TTTeacherRefId>123456789012345678901234567890AB</TTTeacherRefId> </TeacherList> <TTRoomRefId>12345678901234567890123456789075</TTRoomRefId> </Lesson>
Example 6.3.25-1: Lesson
<Lesson RefId="6A73E75ADAAA40EB9CCF5921D1B4AFFC"> <TTDayId>DY01</TTDayId> <PeriodIndex>1</PeriodIndex> <Type>N</Type> <NTCodeRef>ABC00000000000003250726570537570</NTCodeRef> <TeacherList> <TTTeacherRefId>123456789012345678901234567890CD</TTTeacherRefId> <TTTeacherRefId>A2345678901234567890123456789012</TTTeacherRefId> <TTTeacherRefId>B2345678901234567890123456789034</TTTeacherRefId> </TeacherList> </Lesson>
Example 6.3.25-2: Lesson
<Lesson RefId="3473E75ADAAA40EB9CCF5921D1B4AFFC"> <TTDayId>DY01</TTDayId> <PeriodIndex>1</PeriodIndex> <Type>N</Type> <Length>5</Length> <NTCodeRef>ABC00000000000003250726570537570</NTCodeRef> <TeacherList> <TTTeacherRefId>123456789012342228901234567890CD</TTTeacherRefId> </TeacherList> </Lesson>
Example 6.3.25-3: Lesson

6.3.26 NonTeachingActivity

A "non-teaching activity" is used to represent times when a teacher is not teaching a Teaching Group but is nonetheless "busy". Examples are meetings, part-time teachers who are not in school, PPA time, etc.

SIF_Events are reported for this object.

NonTeachingActivity
Figure 6.3.26-1: NonTeachingActivity NonTeachingActivity RefId NTCode Description Type SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 NonTeachingActivity  A "non-teaching activity" is used to represent times when a teacher is not teaching a Teaching Group but is nonetheless "busy". Examples are meetings, part-time teachers who are not in school, PPA time, etc.
@
key
RefIdMA unique local identifier for this junction RefIdType
 NTCodeM

A unique code for the non-teaching activity


xs:normalizedString
xs:maxLength12
 DescriptionM

A description of the non-teaching activity


xs:normalizedString
xs:maxLength25
 TypeM

Lesson/meeting type Note this Type over-rides the period type in the cycle definition (in case, for eg, Period 1 is Registration for some classes but not others)


values:
R
registration
B
break
L
lunch
O
outside school hours (eg: clubs)
U
teacher unavailable (but in school)
X
teacher unavailable (out of school)
N
other (or unspecified) non-teaching
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.26-1: NonTeachingActivity
NonTeachingActivityList&gt; <NonTeachingActivity RefId="000000000000315374616666726F6F6D"> <NTCode>Staffroom</NTCode> <Description>Staffroom</Description> <Type>N</Type> </NonTeachingActivity>
Example 6.3.26-1: NonTeachingActivity
<NonTeachingActivity RefId="120000000000315374616666726F6443"> <NTCode>PPA</NTCode> <Description>PPA time</Description> <Type>N</Type> </NonTeachingActivity>
Example 6.3.26-2: NonTeachingActivity
<NonTeachingActivity RefId="123400000000315374616666726F6901"> <NTCode>UnAv</NTCode> <Description>Unavailable</Description> <Type>X</Type> </NonTeachingActivity>
Example 6.3.26-3: NonTeachingActivity

6.3.27 PersonDietaryPreference

SIF_Events are reported for this object.

PersonDietaryPreference
Figure 6.3.27-1: PersonDietaryPreference PersonDietaryPreference RefId PersonRefId WeeklyMealPatternList WeeklyMealPattern StartDate EndDate Note Meals Meal Day MealTime MealType DietaryPreferenceList DietaryPreference PreferenceType MealComponent Note MealEffect SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 PersonDietaryPreference
@
key
RefIdM RefIdType
 PersonRefIdM

The ID (GUID) of the person to whom the Dietary preference is linked.


IdRefType
 WeeklyMealPatternListO

Periods of Meal requirements on Certain days


List
 WeeklyMealPatternList/WeeklyMealPattern

MR

Weekly Meal Pattern



 WeeklyMealPatternList/WeeklyMealPattern/
     StartDate
M

Date Specific pattern starts


xs:date
 WeeklyMealPatternList/WeeklyMealPattern/
     EndDate
M

Date Specific pattern Ends.


xs:date
 WeeklyMealPatternList/WeeklyMealPattern/
     Note
O

A note relating to pattern


xs:normalizedString
 WeeklyMealPatternList/WeeklyMealPattern/
     Meals
M

List of Meals Required during Period


List
 WeeklyMealPatternList/WeeklyMealPattern/
     Meals/Meal
MR

Has a Day , Time and Type defined below it



 WeeklyMealPatternList/WeeklyMealPattern/
     Meals/Meal/Day
M

The Day of week that Meal is required


values:
Mon
Tue
Wed
Thu
Fri
Sat
Sun
All
 WeeklyMealPatternList/WeeklyMealPattern/
     Meals/Meal/MealTime
M

Which meal of the day is required


values:
Breakfast
Lunch
Dinner
Other
 WeeklyMealPatternList/WeeklyMealPattern/
     Meals/Meal/MealType
M

What type of meal is required


values:
Cooked
Fixed
Choice
Cold
Sandwich
 DietaryPreferenceListO

Periods of Meal requirements on Certain days


List
 DietaryPreferenceList/DietaryPreference

MR

Dietary weekly Meal Pattern



 DietaryPreferenceList/DietaryPreference/
     PreferenceType
M

The Type of preference


values:
Medical
Allergy
Personal
Faith
Cultural
 DietaryPreferenceList/DietaryPreference/
     MealComponent
M

The component of meal


xs:normalizedString
 DietaryPreferenceList/DietaryPreference/
     Note
O

A note relating to dietary preference


xs:normalizedString
 DietaryPreferenceList/DietaryPreference/
     MealEffect
C

Should the Meal component be Included or Excluded from the meal. Default is Exclude


values:
Include
Exclude
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.27-1: PersonDietaryPreference
<PersonDietaryPreference RefId="B8359C32AE94474174B03008D9A2744E"> <PersonRefId>8456D39051CC755293A4A4763088F3D3</PersonRefId> <WeeklyMealPatternList> <WeeklyMealPattern> <StartDate>2008-01-09</StartDate> <EndDate>2008-08-31</EndDate> <Note>AcadYr 2007/2008 choices</Note> <Meals> <Meal> <Day>Mon</Day> <MealTime>Lunch</MealTime> <MealType>Cooked</MealType> </Meal> <Meal> <Day>Tue</Day> <MealTime>Lunch</MealTime> <MealType>Cooked</MealType> </Meal> </Meals> </WeeklyMealPattern> <WeeklyMealPattern> <StartDate>2008-01-09</StartDate> <EndDate>2008-08-31</EndDate> <Note> AcadYr 2008/2009 choices </Note> <Meals> <Meal> <Day>All</Day> <MealTime>Lunch</MealTime> <MealType>Cooked</MealType> </Meal> <Meal> <Day>All</Day> <MealTime>Dinner</MealTime> <MealType>Cooked</MealType> </Meal> </Meals> </WeeklyMealPattern> </WeeklyMealPatternList> <DietaryPreferenceList> <DietaryPreference> <PreferenceType>Allergy</PreferenceType> <MealComponent>Nuts</MealComponent> <Note>Potential severe reaction - see medical notes</Note> <MealEffect>Exclude</MealEffect> </DietaryPreference> <DietaryPreference> <PreferenceType>Faith</PreferenceType> <MealComponent>Pork</MealComponent> <MealEffect>Exclude</MealEffect> </DietaryPreference> </DietaryPreferenceList> </PersonDietaryPreference>
Example 6.3.27-1: PersonDietaryPreference

6.3.28 PersonPicture

This object either contains or references a person's picture. Compare with US/Canada objects: StudentPicture and EmployeePicture.

SIF_Events are reported for this object.

PersonPicture
Figure 6.3.28-1: PersonPicture PersonPicture PersonRefId SIF_RefObjectList SIF_RefObject SchoolYear PictureSource Type OKToPublish SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 PersonPicture  This object either contains or references a person's picture. Compare with US/Canada objects: StudentPicture and EmployeePicture.
@
key
PersonRefIdMThis is the GUID of the person whose picture this is. It is important to note that using the same GUID a person may have a LearnerPersonal record, a WorkforcePersonal record, and a ContactPersonal record all at the same time. This same picture is applicable regardless of the associated object type(s). IdRefType
 SIF_RefObjectListMRA list of one or more "personal" object type codes representing objects that can be requested for this person using the specified PersonRefId. List
 SIF_RefObjectList/SIF_RefObject

MThe name of a "personal" object that can be requested for this person using the specified PersonRefId. values:
ContactPersonal
LearnerPersonal
WorkforcePersonal
 SchoolYearMSchool year for which this picture is applicable, expressed as the four-digit year in which the school year ends (e.g. 2007 for the 2006/07 school year). SchoolYear
 PictureSourceMThis element defines the picture. If the Type attribute is URL, this is the location of the picture in [JPEG] format; if Type is JPEG, this is the [JPEG] image data encoded using the Base64 Content-Transfer-Encoding defined in Section 6.8 of [RFC 2045]. URIOrBinaryType
@TypeMThe way the picture is specified (URL or JPEG). values:
URL
JPEG
 OKToPublishOCan the picture be published? values:
Yes
No
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.28-1: PersonPicture
<PersonPicture PersonRefId="D3E34B359D75101A8C3D00AA001A1652"> <SIF_RefObjectList> <SIF_RefObject>LearnerPersonal</SIF_RefObject> </SIF_RefObjectList> <SchoolYear>2007</SchoolYear> <PictureSource Type="URL">http://www.schoolsite.com/pictures/1999/1234.jpg</PictureSource> <OKToPublish>Yes</OKToPublish> </PersonPicture>
Example 6.3.28-1: PersonPicture

6.3.29 SchoolGroup

This object describes a specific group and includes resource and time tabling information. All groups are based upon a SchoolGroupType record. However, there are courses which are not based upon any subject area and likewise may not have any teachers or other staff assigned. Compare with US/Canada object: SectionInfo.

SIF_Events are reported for this object.

SchoolGroup
Figure 6.3.29-1: SchoolGroup SchoolGroup RefId SchoolGroupTypeRefId SchoolYear LocalId GroupName Description ParentSchoolGroupRefId ScheduleInfoList ScheduleInfo TeacherList Teacher WorkforcePersonalRefId Role SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 SchoolGroup  This object describes a specific group and includes resource and time tabling information. All groups are based upon a SchoolGroupType record. However, there are courses which are not based upon any subject area and likewise may not have any teachers or other staff assigned. Compare with US/Canada object: SectionInfo.
@
key
RefIdMThe ID (GUID) that uniquely identifies this group entity. RefIdType
@SchoolGroupTypeRefIdMThe ID (GUID) that identifies a course upon which this group is centered. Note that this element is mandatory when GroupType is associated with a course (teaching group). IdRefType
@SchoolYearMSchool year for which the group is applicable, expressed as the four-digit year in which the school year ends (e.g. 2007 for the 2006/07 school year). Where a group membership is valid across multiple years, the current year at the time of publication will be used. SchoolYear
 LocalIdMThe locally-assigned (unique) identifier for this group. LocalId
 GroupNameMThe name associated with this group for display purposes. xs:normalizedString
 DescriptionOA textual description. xs:normalizedString
 ParentSchoolGroupRefIdOThe parent group associated with this group, if any. IdRefType
 ScheduleInfoListO List
 ScheduleInfoList/ScheduleInfo

MRThe schedule-related information for a section repeating for each term in which the section is scheduled.
 ScheduleInfoList/ScheduleInfo/
     TeacherList
OA list of teachers, staff, or other non-learners associated with this group. List
 ScheduleInfoList/ScheduleInfo/
     TeacherList/Teacher
MRA teacher, staff, or other non-learner associated with this group.
@WorkforcePersonalRefIdMThe ID (GUID) of a teacher, staff member, or other employee participating in a non-learner capacity within this group. IdRefType
 ScheduleInfoList/ScheduleInfo/
     TeacherList/Teacher/Role
OThe role associated with this person in the context of this group. UKGroupRoleType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.29-1: SchoolGroup
<SchoolGroup RefId="448CCF34A4B54757B09E4BB37DE69CB1" SchoolGroupTypeRefId="900B4180DC7E11DB9C0100163564AA14" SchoolYear="2007"> <LocalId>SCI200</LocalId> <GroupName>Natural Science II</GroupName> <Description>Exploration of natural sciences, 2nd Year</Description> <ScheduleInfoList> <ScheduleInfo> <TeacherList> <Teacher WorkforcePersonalRefId="5EE44B359D75101A8C3D00AA001B7B89"> <Role>TCH</Role> </Teacher> <Teacher WorkforcePersonalRefId="3D00AA001B7B895EE44B359D75101A8C"> <Role>SUP</Role> </Teacher> </TeacherList> </ScheduleInfo> </ScheduleInfoList> </SchoolGroup>
Example 6.3.29-1: SchoolGroup

6.3.30 SchoolGroupType

This object describes a high-level course or class grouping organised and/or taught within a school or establishment. Note that not all courses are based upon a subject area. One such course is "Class Group" which is the same as a homeroom or registration group. Compare with US/Canada object: SchoolCourseInfo.

SIF_Events are reported for this object.

SchoolGroupType
Figure 6.3.30-1: SchoolGroupType SchoolGroupType RefId SchoolInfoRefId SchoolYear GroupType Code Title Description SubjectAreaList SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 SchoolGroupType  This object describes a high-level course or class grouping organised and/or taught within a school or establishment. Note that not all courses are based upon a subject area. One such course is "Class Group" which is the same as a homeroom or registration group. Compare with US/Canada object: SchoolCourseInfo.
@
key
RefIdMThe GUID that uniquely identifies a school course. RefIdType
@SchoolInfoRefIdMThe ID (GUID) that references the school or establishment where the course is offered or the registration group exists. IdRefType
@SchoolYearMSchool year for which the information is applicable, expressed as the four-digit year in which the school year ends (e.g. 2007 for the 2006/07 school year). Where a group membership is valid across multiple years, the current year at the time of publication will be used. SchoolYear
@GroupTypeMThe group type. Teaching groups are used to teach subjects while other groups are organised for various other reasons. values:
G
Generic Group
R
Registration/Class Group
T
Teaching (course) Group
 CodeOThe school defined local code for the group (or course). xs:normalizedString
 TitleOTitle associated with this group. xs:normalizedString
 DescriptionOTextual description for the group. xs:normalizedString
 SubjectAreaListOSubject matter areas taught as part of the course, if any. SubjectAreaList
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.30-1: SchoolGroupType
<SchoolGroupType RefId="900B4180DC7E11DB9C0100163564AA14" SchoolInfoRefId="D6F60F2862CA460BAA95E57AB49CBE88" SchoolYear="2007" GroupType="T"> <Code>NSCI</Code> <Title>Natural Science Studies</Title> <Description>General classification for all study of the natural sciences</Description> <SubjectAreaList> <SubjectArea>ASC</SubjectArea> <SubjectArea>BIO</SubjectArea> <SubjectArea>CHM</SubjectArea> <SubjectArea>CSB</SubjectArea> <SubjectArea>CSC</SubjectArea> <SubjectArea>CSP</SubjectArea> <SubjectArea>ENV</SubjectArea> <SubjectArea>GLG</SubjectArea> <SubjectArea>PHY</SubjectArea> <SubjectArea>SCI</SubjectArea> </SubjectAreaList> </SchoolGroupType>
Example 6.3.30-1: SchoolGroupType

6.3.31 SchoolInfo

This object contains basic information about a school or other educational establishment. Compare with US/Canada object with the same name.

SIF_Events are reported for this object.

SchoolInfo
Figure 6.3.31-1: SchoolInfo SchoolInfo RefId LAInfoRefId LocalId EstablishmentId LAId SchoolName SchoolFullName URN SchoolURL SchoolAddress AddressList SchoolPhoneNumber OtherPhoneNumberList SchoolEmail SchoolContactList HeadTeacherInfo ContactName ContactTitle Phase SchoolType Governance Intake NCYearGroupList GenderOfEntry GenderSixthForm Boarders SessionsPerDay Nursery Special OperationalStatus SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 SchoolInfo This object contains basic information about a school or other educational establishment. Compare with US/Canada object with the same name.
@
key
RefIdMThe GUID that identifies this school. RefIdType
@LAInfoRefIdOThe ID (GUID) assigned to the LA of which this school is a member. IdRefType
 LocalIdOAn ID assigned by the publishing agent for this school or establishment. This may be set to any value. xs:normalizedString
 EstablishmentIdMDfES Establishment Number for this school. EstablishmentId
 LAIdMThe 3-digit LA number assigned by DfES. LAId
 SchoolNameMSchool's name as indicated on the Annual Schools Census. xs:normalizedString
 SchoolFullNameOSchool's full name as stated in the Instrument of Government. xs:normalizedString
 URNOSchool Unique Reference Number. This number is an alternate to the Establishment Number. SchoolURN
 SchoolURLOURL for the school. SchoolURL
 SchoolAddressOThe school's published address. Address
 AddressListOOther addresses associated with the school. AddressList
 SchoolPhoneNumberOThe main phone number for this school/establishment. PhoneNumber
 OtherPhoneNumberListOA list of the school's phone numbers. PhoneNumberList
 SchoolEmailOSchool's email address for general correspondence. Email
 SchoolContactListOA list of contacts at the school. ContactList
 HeadTeacherInfoOName and title fo the school's Head Teacher.
 HeadTeacherInfo/ContactName

MThe name of the head Teacher. xs:normalizedString
 HeadTeacherInfo/ContactTitle

OThe official title of the Head Teacher. xs:normalizedString
 PhaseOThe high level code indicating the level of the educational institution. UKPhaseTypeType
 SchoolTypeOAn indication of the level of the educational institution. UKSchoolTypeType
 GovernanceOGovernance afforded to this school. UKGovernanceTypeType
 IntakeOIntake type. values:
COMP
Comprehensive
SEL1
Selective (Grammar)
SEL2
Secondary Modern
SEL3
Selective (Technical)
SEL4
Religious School
 NCYearGroupListOCollection of National Curriculum Year Groups offered in this school or establishment. NCYearGroupList
 GenderOfEntryOGender of learners allowed for entry to school. values:
C
Coeducational
F
Female only
M
Male only
 GenderSixthFormOGender of learners allowed for entry to Sixth Form. values:
C
Coeducational
F
Female only
M
Male only
blank = HighestNCYear less than 12
 BoardersOIndicates whether the school supports boarders or not. values:
Yes
No
 SessionsPerDayMThe number of sessions in the usual school day (usually two). xs:unsignedInt
 NurseryOIndicates whether the school maintains a nursery class or not. Must be NO if Phase is set to MP, MS or SY. Must be YES if Phase is set to NY or EY. values:
Yes
No
 SpecialOIndicates whether the school has a special class/unit or not. Must be Yes if Phase = SP. Any details will be stored in the associated SchoolInfoDetail object. values:
Yes
No
 OperationalStatusOOperational condition of a school. UKOperationalStatusType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.31-1: SchoolInfo
<SchoolInfo RefId="D6F60F2862CA460BAA95E57AB49CBE88" LAInfoRefId="81559915646EBEC342277E6D2AA5EAEA"> <LocalId>005415</LocalId> <EstablishmentId>5415</EstablishmentId> <LAId>330</LAId> <SchoolName>King's Norton Boys' School</SchoolName> <SchoolFullName>King's Norton Boys' School</SchoolFullName> <SchoolURL>www.kingsnortonboys.bham.sch.uk</SchoolURL> <SchoolAddress Type="Current"> <PAON> <Description>Main Office</Description> </PAON> <Street>Northfield Road</Street> <Town>Birmingham</Town> <PostCode>B30 1DY</PostCode> <Country>GBR</Country> </SchoolAddress> <SchoolPhoneNumber Type="W"> <Number>01216280010</Number> <ListedStatus>Listed</ListedStatus> </SchoolPhoneNumber> <OtherPhoneNumberList> <PhoneNumber Type="F"> <Number>01216280080</Number> </PhoneNumber> </OtherPhoneNumberList> <SchoolEmail Type="Business">enquiry@kingsnortonboys.bham.sch.uk</SchoolEmail> <HeadTeacherInfo> <ContactName>Mr. Roy Baylis</ContactName> <ContactTitle>Head Teacher</ContactTitle> </HeadTeacherInfo> <Phase>SY</Phase> <SchoolType>39</SchoolType> <Governance>FO</Governance> <Intake>SEL3</Intake> <NCYearGroupList> <NCYearGroup>7</NCYearGroup> <NCYearGroup>8</NCYearGroup> <NCYearGroup>9</NCYearGroup> <NCYearGroup>10</NCYearGroup> <NCYearGroup>11</NCYearGroup> <NCYearGroup>12</NCYearGroup> <NCYearGroup>13</NCYearGroup> <NCYearGroup>14</NCYearGroup> </NCYearGroupList> <GenderOfEntry>M</GenderOfEntry> <GenderSixthForm>M</GenderSixthForm> <Boarders>No</Boarders> <SessionsPerDay>2</SessionsPerDay> <Nursery>No</Nursery> <Special>No</Special> <OperationalStatus>1</OperationalStatus> </SchoolInfo>
Example 6.3.31-1: SchoolInfo

6.3.32 SchoolMealStatus

Object to determine school days, non school days or any "special arrangement" days

SIF_Events are reported for this object.

SchoolMealStatus
Figure 6.3.32-1: SchoolMealStatus SchoolMealStatus RefId SchoolInfoRefId SchoolMealStatusDate SchoolMealStatusDateSession SchoolMealStatusTier SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 SchoolMealStatus Object to determine school days, non school days or any "special arrangement" days
@
key
RefIdMThe ID (GUID) that uniquely identifies a particular MealStatus reference RefIdType
 SchoolInfoRefIdM

The ID (GUID) of the school to which this MealStatus applies.


IdRefType
 SchoolMealStatusDateM

The status of the school on a particular date; e.g., Status for staff; Y/N, Status for pupils Y/N


xs:date
 SchoolMealStatusDateSessionM

AM or PM


values:
AM
PM
 SchoolMealStatusTierM

Whether the status applies to the whole school or part of the school; e.g., Whole, Junior, Senior, Upper, lower etc.,



 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.32-1: SchoolMealStatus
<SchoolMealStatus RefId="B8359C32AE94474174B03008D9A2744E"> <SchoolInfoRefId>AE98AE59A2841743117D9192C326B873</SchoolInfoRefId> <SchoolMealStatusDate>2008-01-10</SchoolMealStatusDate> <SchoolMealStatusDateSession>AM</SchoolMealStatusDateSession> <SchoolMealStatusTier>Whole</SchoolMealStatusTier> </SchoolMealStatus>
Example 6.3.32-1: SchoolMealStatus

6.3.33 Scope

Scope of this timetable, ie: a general description of what dates the timetable covers, etc

SIF_Events are reported for this object.

Scope
Figure 6.3.33-1: Scope Scope RefId TTScopeName SupplierName SupplierURL Product Version SchoolInfoRefId SchoolName ScheduleCreationDate ScheduleName SchoolYear StartDate EndDate Status PhoneNumberList SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 Scope  Scope of this timetable, ie: a general description of what dates the timetable covers, etc
@
key
RefIdM Unique GUID for this Timetable transfer  RefIdType
 TTScopeNameM

A short label for reference in screen displays.


xs:normalizedString
xs:maxLength50
 SupplierNameM

The supplier of the software that created this message


xs:normalizedString
xs:maxLength50
 SupplierURLO

A URL to a page on the supplier’s website that gives information about the transfer and/or contact details for the supplier.


xs:anyURI
 ProductM

The product that created this message


xs:normalizedString
xs:maxLength40
 VersionM

The version of that Product


xs:normalizedString
xs:maxLength20
 SchoolInfoRefIdM

The unique school ID, taken from the existing SchoolInfo object (requested from ZIS)


IdRefType
 SchoolNameM

The school name in plain text – to help a person to see immediately this is the correct school


xs:normalizedString
xs:maxLength60
 ScheduleCreationDateC

Date schedule was created or last edited (omitted for "Basic data only" message)


xs:date
 ScheduleNameC

Name given to schedule by timetabler. The TT-Software may contain more than one schedule, so this tells us which one is being sent.


xs:normalizedString
xs:maxLength20
 SchoolYearM

The academic year the timetable or basic data relates to (given as year the academic year ends in)


SchoolYear
 StartDateCFirst day of the timetable xs:date
 EndDateCLast day of the timetable xs:date
 StatusM

The "Status" of the timetable transfer 'BT' and 'ET' are sent by TTSoftware when sending a timetable. The others are sent by the MIS after receiving a timetable. (See also "Reasons for Status" below).


values:
BT
Beginning of transfer.
ET
End of transfer.
RP
Received but import pending.
SI
Successful import.
UI
Unsuccessful import.
 PhoneNumberListOThe supplier's phone number(s). PhoneNumberList
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.33-1: Scope
<Scope RefId="07660F2862CA460BAA95E57AB49CBE88"> <TTScopeName>Timetable 2008-09</TTScopeName> <SupplierName>October Resolutions</SupplierName> <SupplierURL>www.sifassociation.org</SupplierURL> <Product>TimeTabler</Product> <Version>4.90.00</Version> <SchoolInfoRefId>D6F60F2862CA460BAA95E57AB49CBE88</SchoolInfoRefId> <SchoolName>Example High School</SchoolName> <ScheduleCreationDate>2008-08-25</ScheduleCreationDate> <ScheduleName>Final Schedule 08-09</ScheduleName> <SchoolYear>2008</SchoolYear> <StartDate>2008-09-01</StartDate> <EndDate>2009-07-31</EndDate> <Status>BT</Status> </Scope>
Example 6.3.33-1: TTScope

6.3.34 TeachingGroup

A Teaching Group

SIF_Events are reported for this object.

TeachingGroup
Figure 6.3.34-1: TeachingGroup TeachingGroup RefId GroupDefinition ShortName LongName TTSubjectRefId Set Block Level MainTeacherRefId GroupTeacherList GroupTeacher TTTeacherRefId Type SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 TeachingGroup A Teaching Group
@
key
RefIdMUnique local ID RefIdType
 GroupDefinitionC

Required if MISRefId omitted (ie: if this is a new (proposed) TG) Optional if MISRefId included



 GroupDefinition/ShortName

M

A short free-format label that describes the group. Used for display purposes in the MIS or TT-Software.


xs:normalizedString
xs:maxLength12
 GroupDefinition/LongNameM

A longer label to help office staff understand the meaning of the group


xs:normalizedString
xs:maxLength80
 GroupDefinition/TTSubjectRefId

M

Subject being taught - see TTSubject NB: We do not allow a TG to have no subject


IdRefType
 GroupDefinition/SetO

Set number (typically 1,2,3,etc or A,B,C, etc but could be a longer label). Can be useful when office staff are trying to "recognise" a TG


xs:normalizedString
xs:maxLength5
 GroupDefinition/BlockO

Block number or letter (eg: "A") Can be useful when office staff are trying to "recognise" a TG


xs:normalizedString
xs:maxLength5
 GroupDefinition/LevelO

Level / Assessment Stage, eg "KS3" (if known / relevant)


UKAssessmentStageType
 MainTeacherRefIdOR

The main teacher / supervisor / etc for this group (for reporting / recognition purposes) (see TTTeacher)


IdRefType
 GroupTeacherListO

A list of teachers associated with this TG


List
 GroupTeacherList/GroupTeacher

MR

A teacher associated with this TG



 GroupTeacherList/GroupTeacher/
     TTTeacherRefId
M

The teacher (see TTTeacher)


IdRefType
 GroupTeacherList/GroupTeacher/
     Type
M

The teacher’s relationship with the TG


values:
A
Assistant
H
Head-of-Dept/Subject-Leader
Z
other/unspecified
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.34-1: TeachingGroup
<TeachingGroup RefId="AEECD89932678725A317B265CE015455"> <GroupDefinition> <ShortName>7P/Te1</ShortName> <LongName>7P Technology Set1</LongName> <TTSubjectRefId>1552098761827530018AB42367CFF301</TTSubjectRefId> <Set>1</Set> <Block>P</Block> </GroupDefinition> </TeachingGroup>
Example 6.3.34-1: TeachingGroup - 1
<TeachingGroup RefId="AEECD89932678725A317B265CE015456"> <GroupDefinition> <ShortName>7P/Te2</ShortName> <LongName>7P Technology Set2</LongName> <TTSubjectRefId>1552098761827530018AB42367CFF301</TTSubjectRefId> <Set>1</Set> <Block>P</Block> </GroupDefinition> </TeachingGroup>
Example 6.3.34-2: TeachingGroup - 2

6.3.35 TermInfo

This object provides information about a term; i.e., a reportable period of time. Compare with US/Canada object: TermInfo.

SIF_Events are reported for this object.

TermInfo
Figure 6.3.35-1: TermInfo TermInfo RefId SchoolInfoRefId SchoolYear StartDate EndDate Description TermCode TermsPerYear MarkingTerm SchedulingTerm AttendanceTerm SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 TermInfo  This object provides information about a term; i.e., a reportable period of time. Compare with US/Canada object: TermInfo.
@
key
RefIdMThe ID (GUID) that uniquely identifies this TermInfo entity. RefIdType
@SchoolInfoRefIdMThe ID (GUID) that identifies the school where the term is used. IdRefType
 SchoolYearMSchool year for which the information is applicable, expressed as the four-digit year in which the school year ends (e.g. 2007 for the 2006/07 school year). Where a group membership is valid across multiple years, the current year at the time of publication will be used. SchoolYear
 StartDateMStarting date of the term. xs:date
 EndDateMEnding date of the term. xs:date
 DescriptionOText-based description of the term. xs:normalizedString
 TermCodeOLocally-defined code. Use 'AUT', 'SPR', or 'SUM' for a 3 term year. Otherwise specify the term number within the year. xs:normalizedString
 TermsPerYearOThe number of terms in a given year (3-6). xs:unsignedInt
xs:minInclusive3
xs:maxInclusive6
 MarkingTermODoes this TermInfo represent a marking period? values:
Yes
No
 SchedulingTermODoes this TermInfo represent a scheduling term? values:
Yes
No
 AttendanceTermODoes this TermInfo represent an attendance term? values:
Yes
No
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.35-1: TermInfo
<TermInfo RefId="7E59D75101A80A70016375DE097A0726" SchoolInfoRefId="A2E35B359D75101A8C3D00AA001A0000"> <SchoolYear>2007</SchoolYear> <StartDate>2007-01-05</StartDate> <EndDate>2007-04-01</EndDate> <Description>Spring Term 2007</Description> <TermCode>SPR</TermCode> <TermsPerYear>3</TermsPerYear> <MarkingTerm>Yes</MarkingTerm> <SchedulingTerm>Yes</SchedulingTerm> <AttendanceTerm>Yes</AttendanceTerm> </TermInfo>
Example 6.3.35-1: TermInfo

6.3.36 TTRoom

A room (or learning space) used on the timetable. This may or may not be a "real" room stored in the MIS yet.

SIF_Events are reported for this object.

TTRoom
Figure 6.3.36-1: TTRoom TTRoom RefId Code Description SiteRefId SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 TTRoom A room (or learning space) used on the timetable. This may or may not be a "real" room stored in the MIS yet.
@
key
RefIdM RefIdType
 CodeM

Unique Code local to TT-Software (short name)


xs:normalizedString
xs:maxLength5
 DescriptionM

This is the description of the room (long name) It is used by the MIS to help the user manually match to a room in the MIS (or decide on some other appropriate action).


xs:normalizedString
xs:maxLength10
 SiteRefIdO

Which "site" this room is on. It may also be used by the MIS. References the TTSite object.


IdRefType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.36-1: TTRoom
<TTRoom RefId="6C34DC09334789A317B265CE01765744"> <Code>12</Code> <Description>Room 12</Description> </TTRoom>
Example 6.3.36-1: TTRoom - 1
<TTRoom RefId="6C34DC09334789A317B265CE01765744"> <Code>Lab3</Code> <Description>3rd Lab</Description> <SiteRefId>ABC00000000001234000000000000031</SiteRefId> </TTRoom>
Example 6.3.36-2: TTRoom - 2

6.3.37 TTSite

A site used on the timetable. This may or may not be a “real” site stored in the MIS yet.

SIF_Events are reported for this object.

TTSite
Figure 6.3.37-1: TTSite TTSite RefId Code Description Type SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 TTSite A site used on the timetable. This may or may not be a “real” site stored in the MIS yet.
@
key
RefIdMUnique GUID for this Site RefIdType
 CodeM

Unique Code local to TT-Software


xs:normalizedString
xs:maxLength5
 DescriptionM

This is the description of the site. It is used by the MIS to help the user manually match to a site in the MIS (or decide on some other appropriate action).


xs:normalizedString
xs:maxLength10
 TypeO

What "type" of site this is. It is used by the MIS to help with any manual matching.


values:
S
a site on your school
V
virtual (ie: not a physical site)
E
an external site (eg: another school in a federation, or a local business)
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.37-1: TTSite
<TTSite RefId="AF57DC09701928365AA0176890234654"> <Code>1</Code> <Description>Upper Sch</Description> </TTSite>
Example 6.3.37-1: TTSite

6.3.38 TTSubject

A subject used on the timetable. This may or may not be a subject stored in the MIS yet.

SIF_Events are reported for this object.

TTSubject
Figure 6.3.38-1: TTSubject TTSubject RefId Code Description SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 TTSubject A subject used on the timetable. This may or may not be a subject stored in the MIS yet.
@
key
RefIdM RefIdType
 CodeM

Unique Code local to TT-Software (could be Teacher Initials, Staff Code, etc)


xs:normalizedString
xs:maxLength6
 DescriptionM

This is the description of the subject (long name)


xs:normalizedString
xs:maxLength15
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.38-1: TTSubject
<TTSubject RefId="A034DC09334789A317B265CE01765744"> <Code>MAT</Code> <Description>Maths</Description> </TTSubject>
Example 6.3.38-1: TTSubject - 1
<TTSubject RefId="A034DC09334789A317B445CE01765701"> <Code>CLA</Code> <Description>Classical Stud</Description> </TTSubject>
Example 6.3.38-2: TTSubject - 2

6.3.39 TTTeacher

A teacher (or teaching post) used on the timetable. This may or may not be a "real" teacher stored in the MIS yet.

SIF_Events are reported for this object.

TTTeacher
Figure 6.3.39-1: TTTeacher TTTeacher RefId Code WorkforcePersonalRefId Description SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 TTTeacher A teacher (or teaching post) used on the timetable. This may or may not be a "real" teacher stored in the MIS yet.
@
key
RefIdMUnique GUID for this Timetable Teacher RefIdType
 CodeM

Unique Code local to TT-Software (could be Teacher Initials, Staff Code, etc)


xs:normalizedString
xs:maxLength6
 WorkforcePersonalRefIdO

If this teacher is known to the MIS, this is the "WorkforcePersonalId"


IdRefType
 DescriptionM

This is the description of the teacher (or "post", etc). It may be a name "John Smith" or it may just be a description such as "New Maths Teacher". If WorkforcePersonalId is not supplied, this Description is used by the MIS to help theuser manually match to a teacher in the MIS (or decide on some other appropriate action).


xs:normalizedString
xs:maxLength24
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.39-1: TTTeacher
<TTTeacher RefId="AEECD89932678725A317B265CE015455"> <Code>CJo</Code> <WorkforcePersonalRefId>AB34DC0932678725A317B265CE015455</WorkforcePersonalRefId> <Description>Chris Johnson</Description> </TTTeacher>
Example 6.3.39-1: TTTeacher - 1
<TTTeacher RefId="874CD89932678725A317B265CE015455"> <Code>MAT</Code> <Description>New Maths Teacher</Description> </TTTeacher>
Example 6.3.39-2: TTTeacher - 2

6.3.40 WorkforcePersonal

This object contains key personal information relating to a workforce member, who might be a teacher or other employee of the school or LA. Compare with US/Canada objects: EmployeePersonal and StaffPersonal.

SIF_Events are reported for this object.

WorkforcePersonal
Figure 6.3.40-1: WorkforcePersonal WorkforcePersonal RefId LocalId AlertMsgList AlertMsg Type MedicalAlertMsgList MedicalAlertMsg Severity PersonalInformation TeacherNumber NINumber CurrentAssignmentList CurrentAssignment LAId EstablishmentId Posts Post SIF_Metadata SIF_ExtendedElements
 Element/@AttributeCharDescriptionType
 WorkforcePersonal  This object contains key personal information relating to a workforce member, who might be a teacher or other employee of the school or LA. Compare with US/Canada objects: EmployeePersonal and StaffPersonal.
@
key
RefIdMThe ID (GUID) of the workforce member. Note that the same GUID may be assigned to this person when they are also a learner (via LearnerPersonal) and/or a contact (via ContactPersonal). RefIdType
 LocalIdMThe locally-assigned identifier for this workforce member. LocalId
 AlertMsgListO List
 AlertMsgList/AlertMsgMRThis is an alert message that is associated with the person. xs:normalizedString
@TypeMThis attribute specifies what type of alert message this is. values:
Legal
Discipline
Educational
Other
 MedicalAlertMsgListO List
 MedicalAlertMsgList/MedicalAlertMsg

MRMedical alert associated with the person. xs:normalizedString
@SeverityMThe level of severity of this medical alert. values:
Low
Moderate
High
Severe
Unknown
 PersonalInformationMPersonal name, demographic, address, email, and phone information for this person. PersonalInformation
 TeacherNumberOThe DfES Teacher Reference number. For those who have one this is a unique number. xs:normalizedString
 NINumberONational Insurance Number. Do not specify temporary numbers. Format: AAnnnnnnA xs:normalizedString
xs:pattern[A-Z]{2}[0-9]{6}[A-Z]
 CurrentAssignmentListOA list of assignments associated with a workforce member, including school and role. This list serves as a quick lookup for information relating to a workforce member's postings or assignments to an LA, School, or other establishment. An agent will operate more eficiently if the data represented here is sufficient. Otherwise, it will be necessary for the agent to also request the WorkforceAssignment object(s). List
 CurrentAssignmentList/CurrentAssignment

MRA workforce member's assignment.
 CurrentAssignmentList/CurrentAssignment/
     LAId
OThe DfES assigned number for the LA in which the workforce member is working, if associated. LAId
 CurrentAssignmentList/CurrentAssignment/
     EstablishmentId
OThe DfES assigned number for the school or establishment in which the workforce member is working. Note that the school may not necessarily be in the same LA listed as the LAId. EstablishmentId
 CurrentAssignmentList/CurrentAssignment/
     Posts
OA list of posts that are applicable to the workforce member's association with this school or LA. List
 CurrentAssignmentList/CurrentAssignment/
     Posts/Post
MRThe post assigned to the workforce member in the context of the school or LA. UKAssignmentPostType
 SIF_MetadataO SIF_Metadata
 SIF_ExtendedElementsO SIF_ExtendedElements
Table 6.3.40-1: WorkforcePersonal
<WorkforcePersonal RefId="A8C3D5EE44B359D7510100AA001B7B89"> <LocalId>593117</LocalId> <PersonalInformation> <Name Type="B"> <FamilyName>Thaxton</FamilyName> <GivenName>Joy</GivenName> <PreferredFamilyName>Thaxton</PreferredFamilyName> <PreferredGivenName>Joy</PreferredGivenName> </Name> <Demographics> <EthnicityList> <Ethnicity> <Code>WENG</Code> <Source>O</Source> </Ethnicity> </EthnicityList> <Gender>F</Gender> <BirthDate>1974-09-12</BirthDate> <LanguageList> <Language> <Code>ENG</Code> <TypeList> <Type>F</Type> </TypeList> </Language> </LanguageList> </Demographics> <Email Type="School">joy.thaxton@myschool.sch.uk</Email> <Address Type="Current"> <PAON> <StartNumber>94</StartNumber> </PAON> <Street>Middleton Way</Street> <Town>Erdington</Town> <AdministrativeArea>Birmingham</AdministrativeArea> <PostCode>B21 4SY</PostCode> <Country>GBR</Country> </Address> </PersonalInformation> <TeacherNumber>U002738664</TeacherNumber> <NINumber>CF344902B</NINumber> <CurrentAssignmentList> <CurrentAssignment> <LAId>330</LAId> <EstablishmentId>4033</EstablishmentId> <Posts> <Post>MUSS</Post> </Posts> </CurrentAssignment> </CurrentAssignmentList> </WorkforcePersonal>
Example 6.3.40-1: WorkforcePersonal

Valid XHTML 1.0 Transitional
